2007 Kawasaki Mule 3020 Turf Gear BOX Diagram

← All diagrams

Find the part on the Gear BOX diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

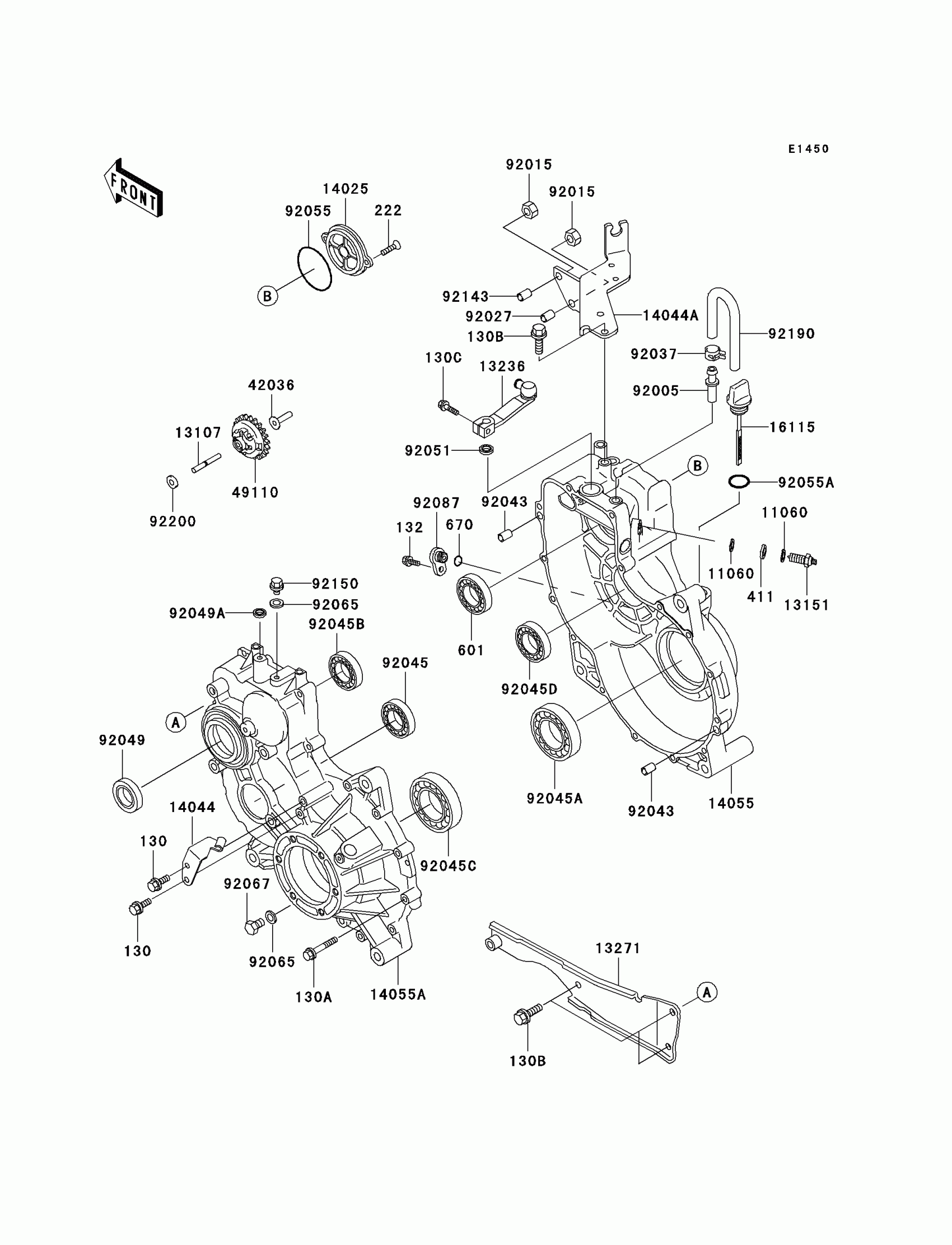

2007 Kawasaki Mule 3020 Turf Gear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock

130A

BOLT,FLANGED,6X35

130H0635

1
Out of stock

130B

BOLT-FLANGED,8X20

130H0820

1
Out of stock

130C

BOLT-FLANGED,6X20

130T0620

1
Out of stock

132

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

11060

GASKET

11060-1966

1
Out of stock

13107

SHAFT

13107-2235

1
Out of stock

13151

SWITCH-COMP

13151-1093

1
Out of stock

13236

LEVER-COMP

13236-1372

1
Out of stock

13271

PLATE

13271-1604

1

$44.26

In stock

14025

COVER

14025-1813

1

$34.01

In stock

14044

HOLDER-CABLE

14044-1065

1
Out of stock

14044A

HOLDER-CABLE

14044-1098

1

$57.54

In stock

14055

CASE-GEAR,RH

14055-1112

1
Out of stock

14055A

CASE-GEAR,LH

14055-1158

1

$287.35

In stock

16115

CAP-OIL FILLER

16115-1060

1
Out of stock

42036

SLEEVE

42036-2060

1
Out of stock

49110

GOVERNOR-ASSY

49110-1104

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92027

COLLAR,8.8X12X9

92027-1568

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,TMB304CCM

92045-1142

1
Out of stock

92045A

BEARING-BALL

92045-1162

1
Out of stock

92045B

BEARING-BALL,62/28

92045-1207

1
Out of stock

92045C

BEARING-BALL,6210CM

92045-1213

1
Out of stock

92045D

BEARING-BALL,TMB205JR2

92045-1285

1
Out of stock

92049

SEAL-OIL,TC28X47X7

92049-1297

1
Out of stock

92049A

SEAL-OIL,VC-6X10X2.5

92049-2097

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,55MM

92055-1120

1
Out of stock

92055A

RING-O

92055-2064

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92067

PLUG,DRAIN,10X12

92067-001

1
Out of stock

92087

BUSHING-METER GEAR

92087-1058

1
Out of stock

92143

COLLAR,8.5X15X9

92143-1642

1
Out of stock

92150

BOLT,FLANGED,10X10

92150-1900

1
Out of stock

92190

TUBE

92190-3807

1
Out of stock

92200

WASHER,6.2X20X0.5

92200-2036

1
Out of stock

222

SCREW-CSK-RD-CROS

222B0614

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock

601

BEARING-BALL,#6007C3

601B6007

1
Out of stock

670

O RING,10MM

670D1510

1
Out of stock
