2007 Kawasaki Mule 3020 Turf Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

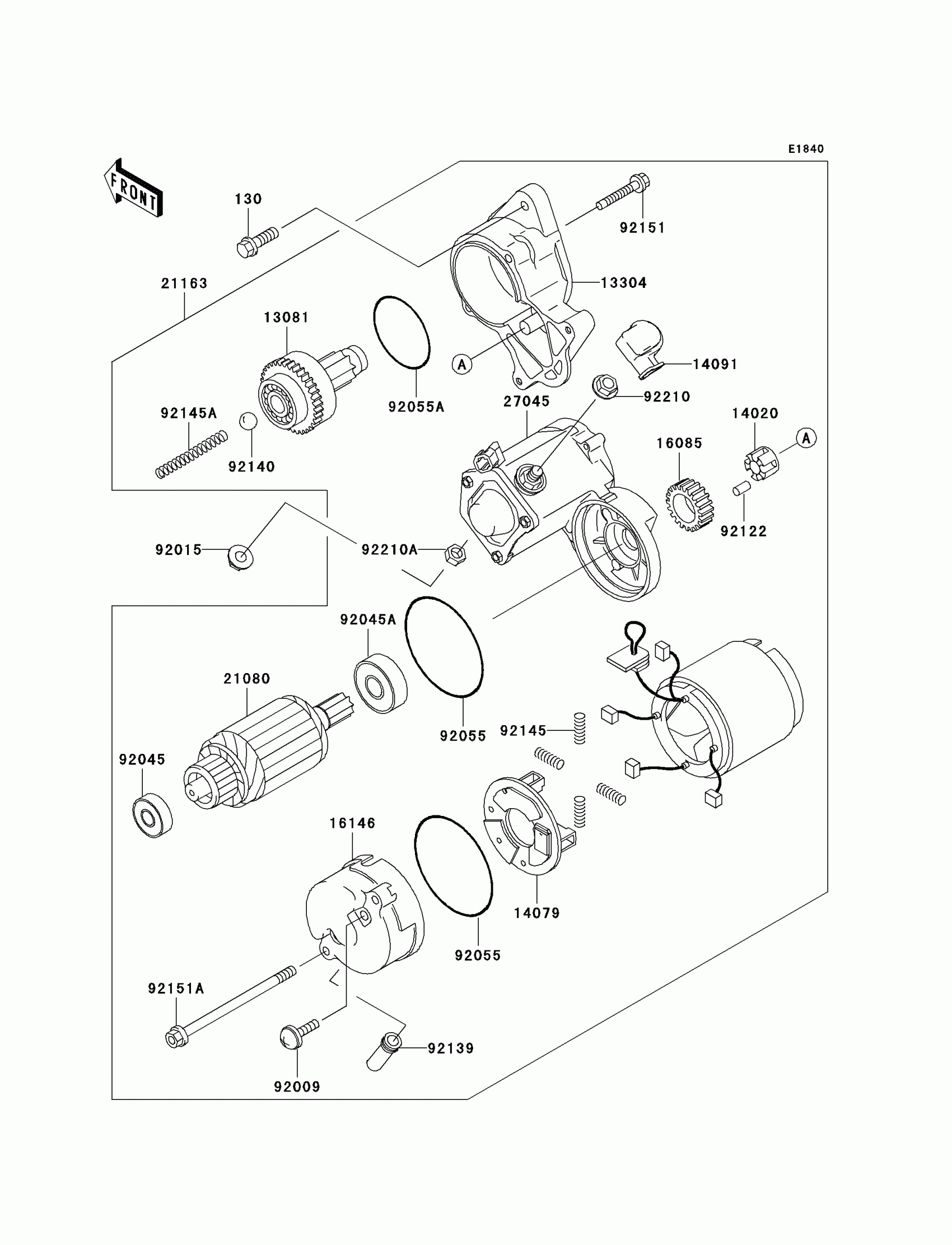

2007 Kawasaki Mule 3020 Turf Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X30

130P0830

1
Out of stock

13081

CLUTCH-ASSY

13081-2231

1
Out of stock

13304

HOUSING-ASSY

13304-2201

1

$309.17

In stock

14020

RETAINER

14020-2112

1

$10.73

In stock

14079

HOLDER-ASSY

14079-2064

1

$84.26

In stock

14091

COVER

14091-2080

1
Out of stock

16085

GEAR

16085-2055

1
Out of stock

16146

COVER-ASSY

16146-2228

1
Out of stock

21080

ARMATURE

21080-2070

1
Out of stock

21163

STARTER-ELECTRIC

21163-2124

1
Out of stock

27045

SWITCH-ASSY

27045-2018

1
Out of stock

92009

SCREW

92009-2455

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92045

BEARING-BALL,60102RKMDSH2C3

92045-2257

1
Out of stock

92045A

BEARING-BALL

92045-2258

1
Out of stock

92055

RING-O

92055-2199

1
Out of stock

92055A

RING-O

92055-2200

1
Out of stock

92122

ROLLER

92122-2057

1
Out of stock

92139

BUSHING

92139-2051

1
Out of stock

92140

BALL

92140-2061

1
Out of stock

92145

SPRING

92145-2096

1
Out of stock

92145A

SPRING

92145-2097

1
Out of stock

92151

BOLT

92151-2167

1
Out of stock

92151A

BOLT

92151-2168

1
Out of stock

92210

NUT

92210-2084

1
Out of stock

92210A

NUT

92210-2085

1
Out of stock
