2007 Kawasaki Mule 3020 Turf Generator/ignition Coil Diagram

← All diagrams

Find the part on the Generator/ignition Coil diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

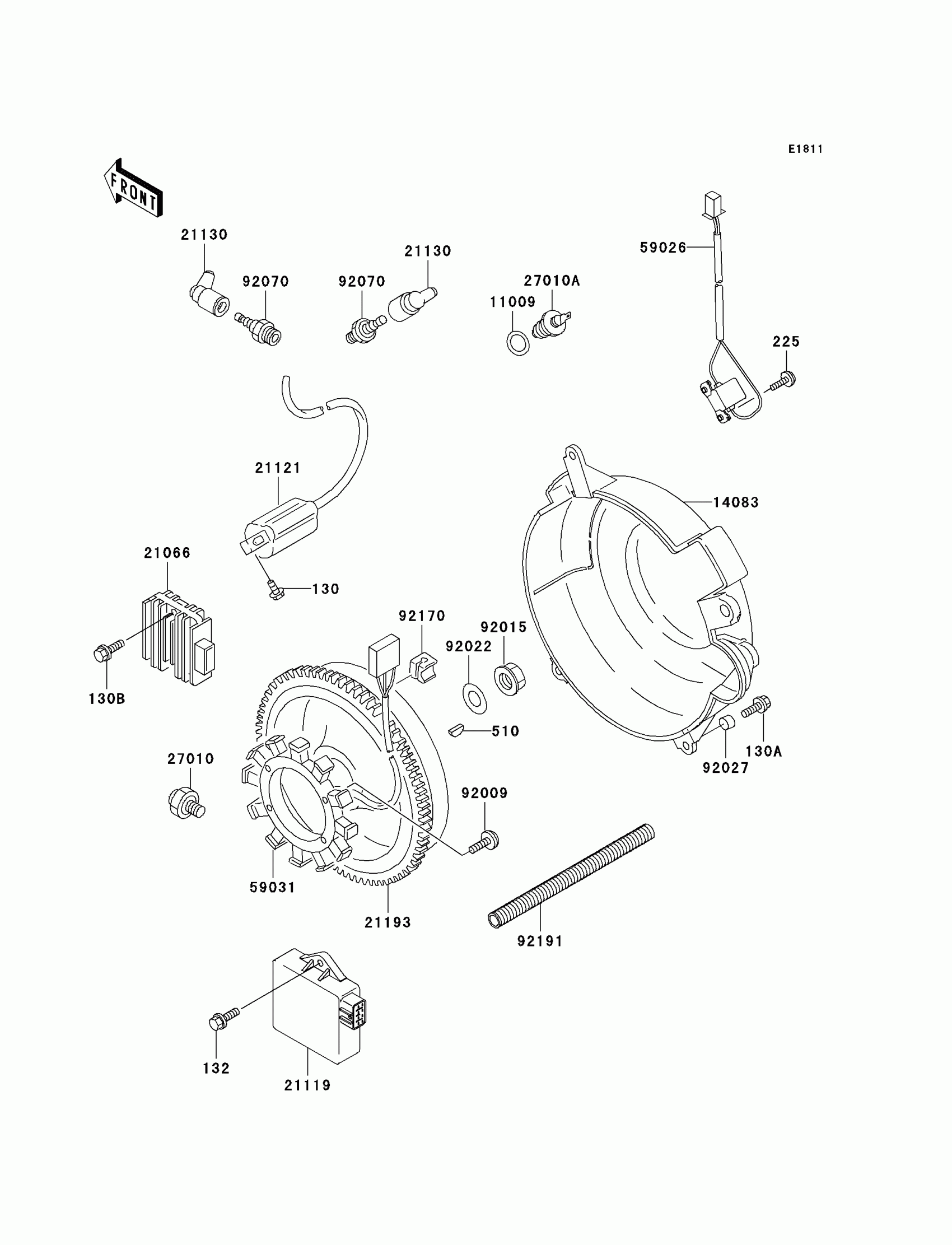

2007 Kawasaki Mule 3020 Turf Generator/ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130B0520

1
Out of stock

130A

BOLT-FLANGED,6X16

130B0616

1
Out of stock

130B

BOLT-FLANGED

130J0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

225

SCREW-PAN-WSP-CROS

225B0414

1
Out of stock

510

WOODRUFF KEY

510A5100

1
Out of stock

11009

GASKET

11009-2766

1
Out of stock

14083

COVER-FLYWHEEL

14083-2052

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-1127

1
Out of stock

21119

IGNITER

21119-1583

1
Out of stock

21121

COIL-IGNITION

21121-2092

1
Out of stock

21130

CAP-SPARK PLUG

21130-2060

1
Out of stock

21193

FLYWHEEL-ASSY

21193-2184

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

27010A

SWITCH,TEMP

27010-2182

1
Out of stock

59026

COIL-PULSING

59026-2065

1
Out of stock

59031

COIL-CHARGING

59031-2126

1
Out of stock

92009

SCREW,6X25

92009-2273

1
Out of stock

92015

NUT

92015-2167

1
Out of stock

92022

WASHER

92022-2229

1
Out of stock

92027

COLLAR,6.2X7.8X5

92027-2096

1
Out of stock

92070

PLUG-SPARK,BPR2ES(NGK),SOLID

92070-2110

1
Out of stock

92170

CLAMP

92170-2056

1

$2.42

In stock

92191

TUBE

92191-2124

1
Out of stock
