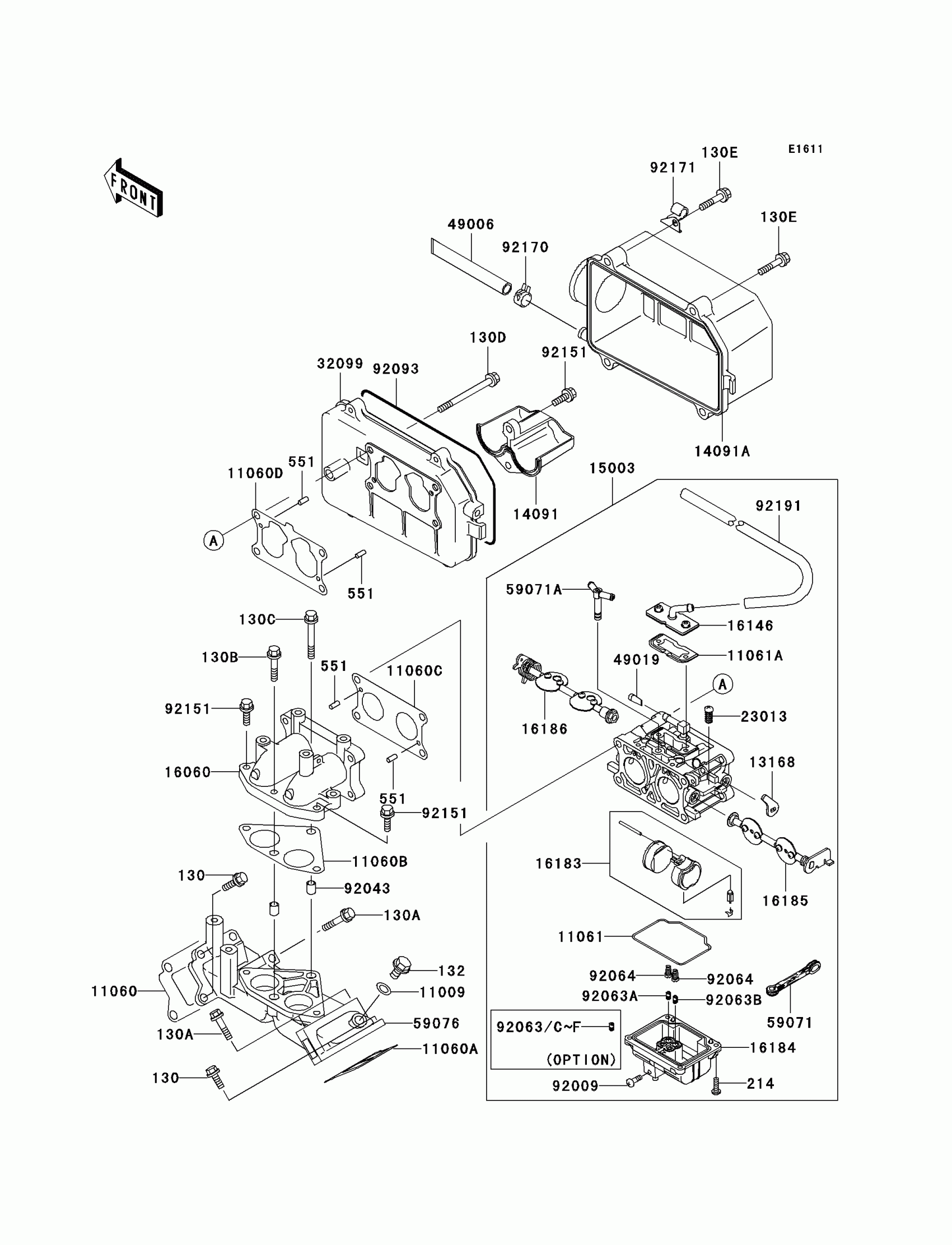

Kawasaki Mule 3020 Turf Carburetor Diagram

#

Description
Price

11009

GASKET

11009-3028

$0.65

11060

GASKET,INTAKE MANIFOLD

11060-2087

$2.28

11060A

GASKET,INTAKE MANIFOLD

11060-2088

$1.95

11060B

GASKET

11060-2477

$4.09

11060C

GASKET

11060-2478

$3.32

11060D

GASKET

11060-2479

$3.57

11061

GASKET,CHAMBER

11061-2090

$7.80

11061A

GASKET,COVER

11061-2091

$6.07

13168

LEVER

13168-2473

$55.92

14091

COVER

14091-2067

$8.92

14091A

COVER

14091-2068

$34.07

15003

CARBURETOR-ASSY

15003-2766

$496.81

16060

PIPE-INTAKE

16060-2195

$56.07

16146

COVER-ASSY

16146-2229

$15.41

16183

FLOAT-ASSY

16183-2006

$39.61

16184

CHAMBER-ASSY-FLOAT

16184-2006

$95.56

16185

VALVE-ASSY-THROTTLE

16185-2038

$108.01

16186

VALVE-ASSY-CHOKE

16186-2037

$90.69

23013

SCREW-ASSY

23013-2061

$7.12

32099

CASE

32099-2374

$55.70

49006

BOOT

49006-2053

$7.58

49019

FILTER-FUEL

49019-1093

$11.23

59071

JOINT

59071-2138

Unavailable

59071A

JOINT

59071-2139

$9.41

59076

MANIFOLD-INTAKE

59076-2069

$54.00

92009

SCREW,DRAIN

92009-2015

$4.19

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92063

JET-MAIN,#95

92063-2399

Unavailable

92063A

JET-MAIN,#92.5

92063-2402

$10.25

92063B

JET-MAIN,#90

92063-2403

Unavailable

92063C

JET-MAIN,#87.5

92063-2405

Unavailable

92063D

JET-MAIN,#91.3

92063-2407

Unavailable

92063E

JET-MAIN,#93.8

92063-2412

Unavailable

92063F

JET-MAIN,#88.8

92063-2413

Unavailable

92064

JET-PILOT

92064-2132

$10.53

130

BOLT,FLANGED,6X20

130B0620

Unavailable

130A

BOLT-FLANGED,6X45

130B0645

Unavailable

130B

BOLT-FLANGED,6X30

130G0630

Unavailable

130C

BOLT-FLANGED,6X40

130G0640

Unavailable

130D

BOLT-FLANGED

130G0680

Unavailable

130E

BOLT-FLANGED,6X30,BLACK

130J0630

Unavailable

132

BOLT-FLANGED-SMALL,8X12

132J0812

Unavailable

214

SCREW-PAN+-

214B0414

Unavailable

551

PIN-DOWEL,4X10

551A0410

$0.57

92093

SEAL

92093-2115

$2.36

92151

BOLT,6X20

92151-2138

$0.98

92170

CLAMP

92170-2082

$0.71

92171

CLAMP

92171-2066

$4.83

92191

TUBE

92191-2140

Unavailable
