2007 Kawasaki Mule 3010 Trans4x4 Shift Lever Diagram

← All diagrams

Find the part on the Shift Lever diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

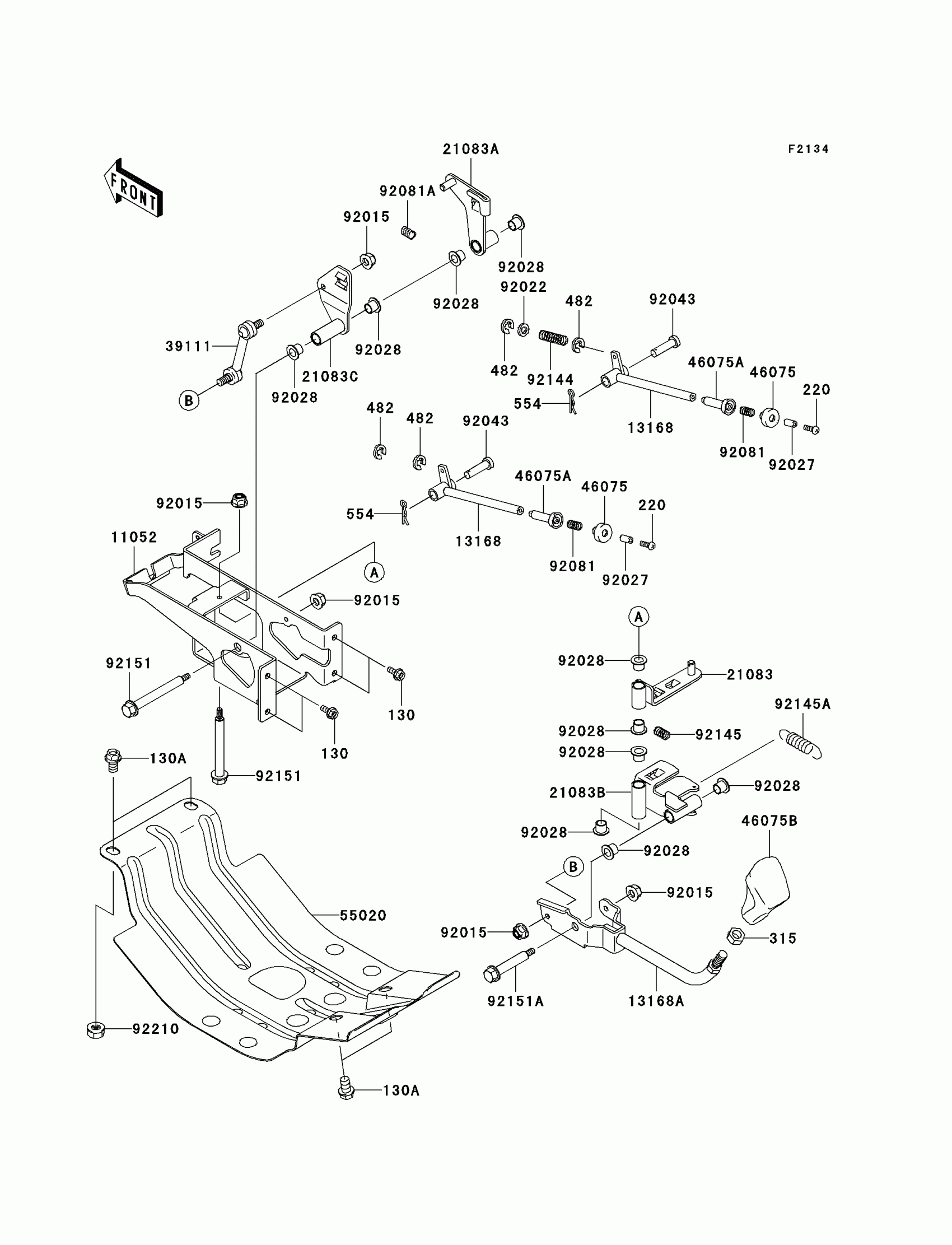

2007 Kawasaki Mule 3010 Trans4x4 Shift Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130C0614

1
Out of stock

130A

BOLT-FLANGED,10X16

130G1016

1
Out of stock

220

SCREW-PAN-CROSS,5X14

220F0514

1
Out of stock

315

NUT-HEX-FINE

315J1000

1
Out of stock

482

CIRCLIP-TYPE-E,8MM

482L8000

1
Out of stock

554

PIN-SNAP,10MM

554A1000

1
Out of stock

11052

BRACKET,SHIFT CONTROL

11052-1263

1
Out of stock

13168

LEVER,DIFF MODE CONTROL

13168-1428

1
Out of stock

13168A

LEVER,SHIFT

13168-1719

1
Out of stock

21083

ARM

21083-1151

1
Out of stock

21083A

ARM

21083-1152

1
Out of stock

21083B

ARM

21083-1155

1
Out of stock

21083C

ARM

21083-1162

1
Out of stock

39111

ROD-TIE

39111-1169

1

$49.40

In stock

46075

GRIP,UPP

46075-1085

1

$7.43

In stock

46075A

GRIP,LWR

46075-1086

1

$10.26

In stock

46075B

GRIP,SHIFT LEVER

46075-1187

1

$29.21

In stock

55020

1

$40.28

In stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92027

COLLAR

92027-1987

1
Out of stock

92028

BUSHING

92028-1507

1
Out of stock

92043

PIN,FOOTRST STEP FIT

92043-1069

1
Out of stock

92081

SPRING

92081-1714

1
Out of stock

92081A

SPRING

92081-1847

1
Out of stock

92144

SPRING

92144-1510

1
Out of stock

92145

SPRING

92145-0073

1
Out of stock

92145A

SPRING

92145-1326

1
Out of stock

92151

BOLT,6MM

92151-1746

1
Out of stock

92151A

BOLT,6MM

92151-1747

1
Out of stock

92210

NUT,LOCK,10MM

92210-1204

1
Out of stock
