2007 Kawasaki Mule 3010 Trans4x4 Drive Converter Diagram

← All diagrams

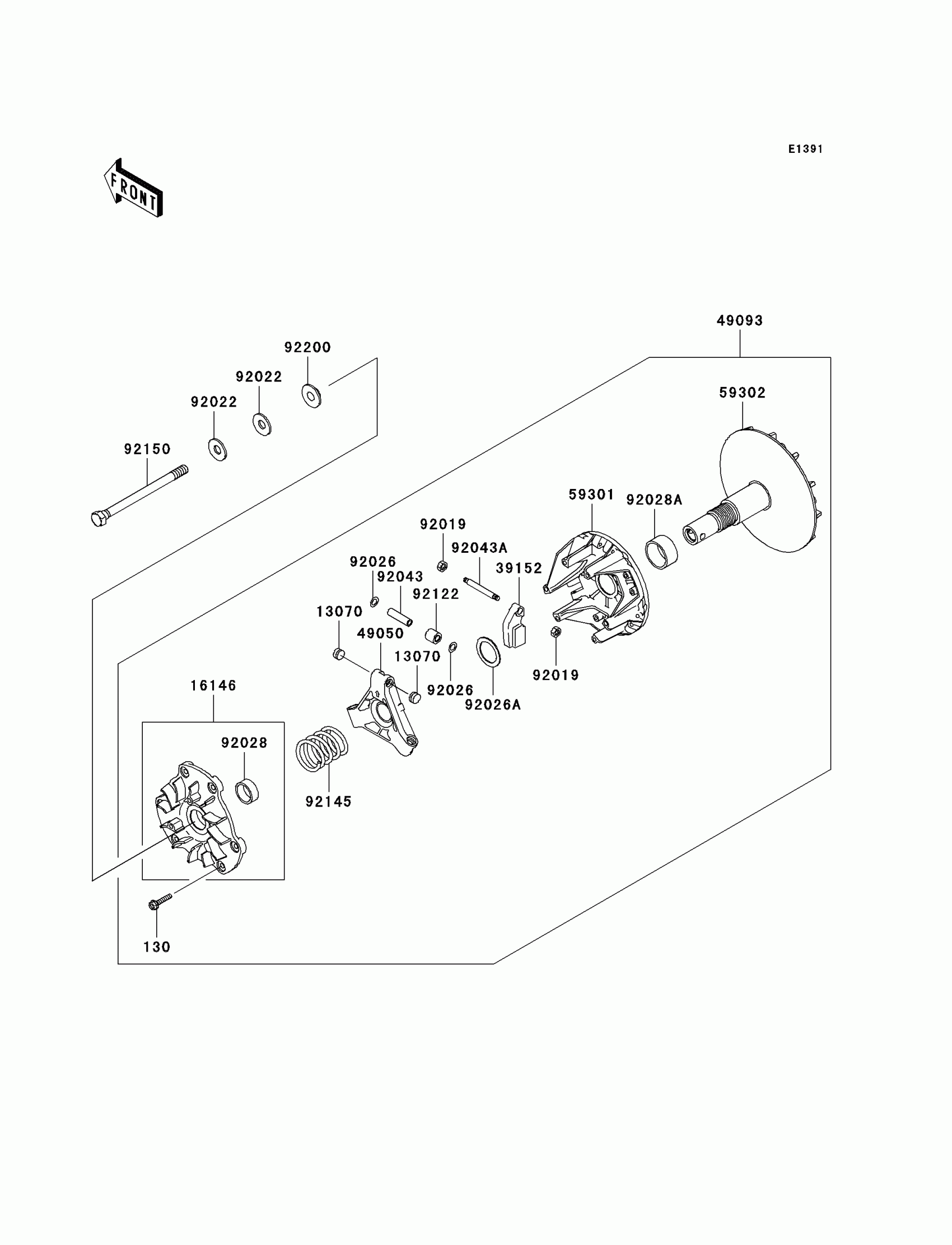

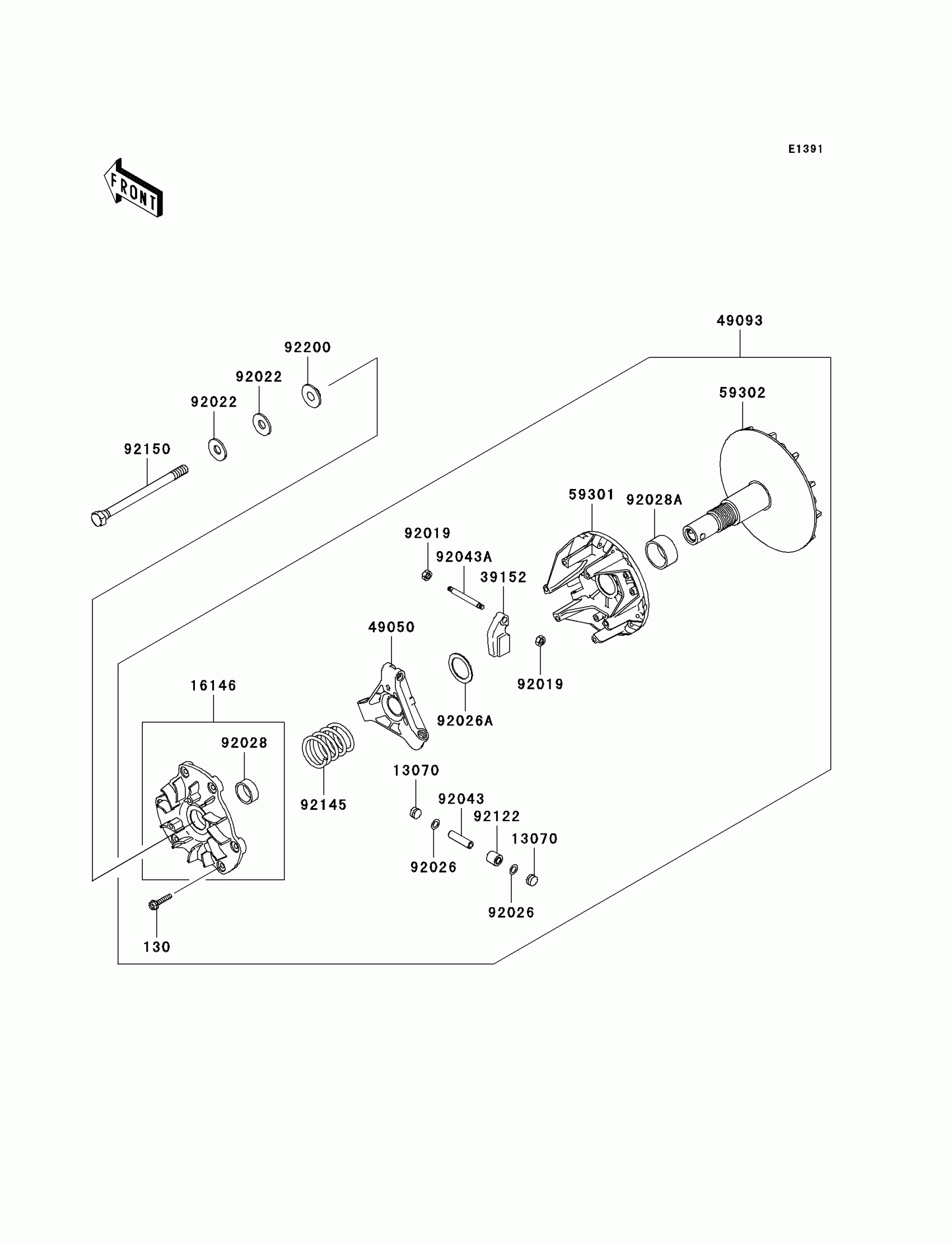

Find the part on the Drive Converter diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 Trans4x4 Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130P0630

1
Out of stock

13070

GUIDE

13070-1330

1

$24.47

In stock

16146

COVER-ASSY

16146-1219

1

$146.10

In stock

39152

WEIGHT-RAMP

39152-0010

1

$53.82

In stock

49050

SPIDER

49050-1076

1
Out of stock

49093

1

$1,147.59

In stock

59301

SHEAVE-MOVABLE

59301-1060

1
Out of stock

59302

SHEAVE-COMP

59302-1085

1

$314.21

In stock

92019

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92022

WASHER,SPECIAL CONICAL

92022-1901

1
Out of stock

92026

SPACER

92026-1512

1

$1.39

In stock

92026A

1

$10.69

In stock

92028

BUSHING

92028-1861

1

$5.77

In stock

92028A

BUSHING

92028-1864

1

$7.07

In stock

92043

PIN

92043-1572

1

$3.14

In stock

92043A

PIN

92043-1573

1

$10.33

In stock

92122

ROLLER

92122-1204

1

$21.66

In stock

92145

SPRING

92145-1388

1

$30.40

In stock

92150

BOLT,12X163.5

92150-1008

1

$24.41

In stock

92200

WASHER

92200-1401

1
Out of stock
