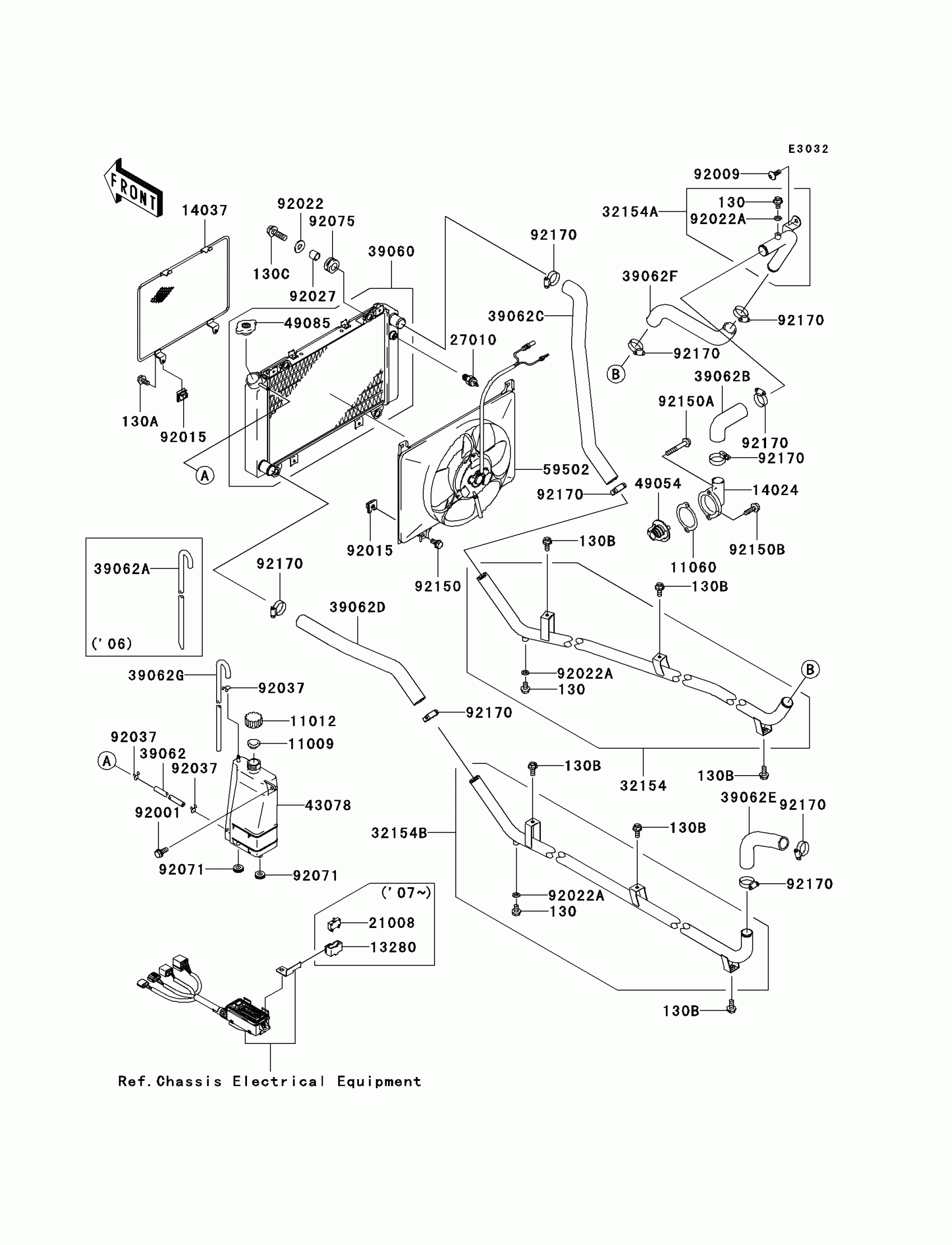

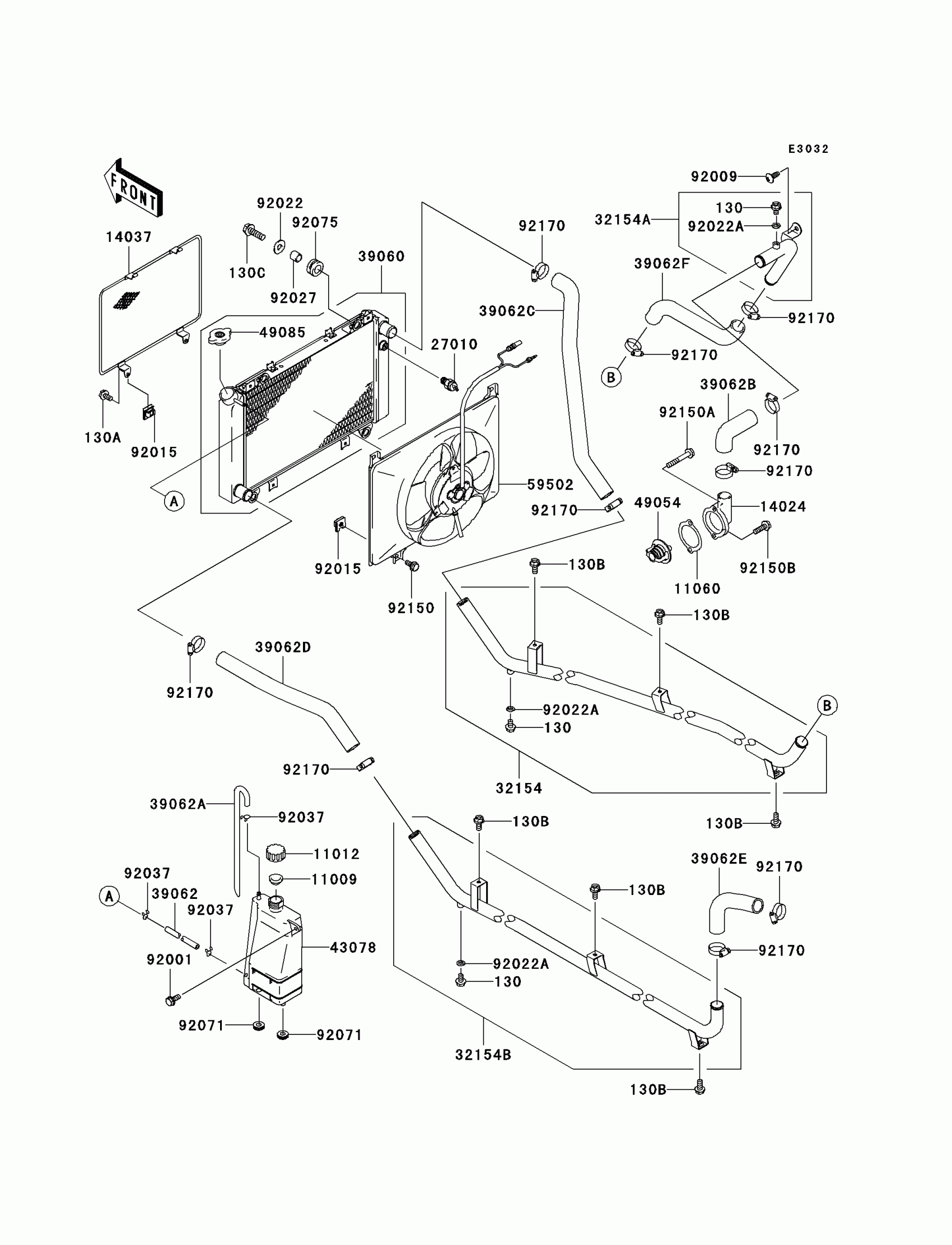

Kawasaki Mule 3010 Trans4x4 Radiator Diagram
#
130
BOLT-FLANGED,6X10
130BB0610
$2.49
130A
BOLT-FLANGED,6X12
130BB0612
$2.34
130B
BOLT-FLANGED,6X14
130BB0614
$2.49
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,THERMOSTAT COVER
11060-2084
$2.83
13280
HOLDER,BREAKER
13280-0082
$5.60
14024
COVER,THERMOSTAT
14024-2293
Unavailable
14037
SCREEN
14037-1284
Unavailable
21008
BREAKER,FAN MOTOR
21008-0001
$26.03
27010
SWITCH,FAN
27010-1317
$130.42
32154
PIPE,RH FR
32154-7503
$116.41
32154A
PIPE,RH RR
32154-7505
$30.65
32154B
PIPE,LH
32154-7507
$74.78
39060
RADIATOR
39060-1187
$672.43
39062
HOSE-COOLING,5.5X10.5X600
39062-1829
$4.70
39062B
HOSE-COOLING
39062-1832
$16.89
39062C
HOSE-COOLING
39062-1834
Unavailable
39062D
HOSE-COOLING
39062-1835
Unavailable
39062E
HOSE-COOLING
39062-1836
Unavailable
39062F
HOSE-COOLING
39062-7502
$18.36
39062G
HOSE-COOLING,DRAIN
39062-7507
$24.47
43078
RESERVOIR
43078-1185
Unavailable
49054
THERMOSTAT
49054-2056
$28.18
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
59502
FAN-ASSY
59502-1137
$510.81
92001
BOLT,W/P,6X16
92001-1860
$4.31
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT
92015-1487
$4.80
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022A
WASHER,6.2X11X1
92022-304
$3.65
92027
COLLAR
92027-102
$1.08
92037
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1115
$5.46
92075
DAMPER
92075-294
$4.10
92150
BOLT,6X12
92150-1186
$3.37
92150A
BOLT,6X40
92150-2230
$1.52
92150B
BOLT,6X20
92150-2231
$1.94
92170
CLAMP,COOLING HOSE
92170-1284
$8.20
130C
BOLT-FLANGED,8X25
130BB0825
$4.45
