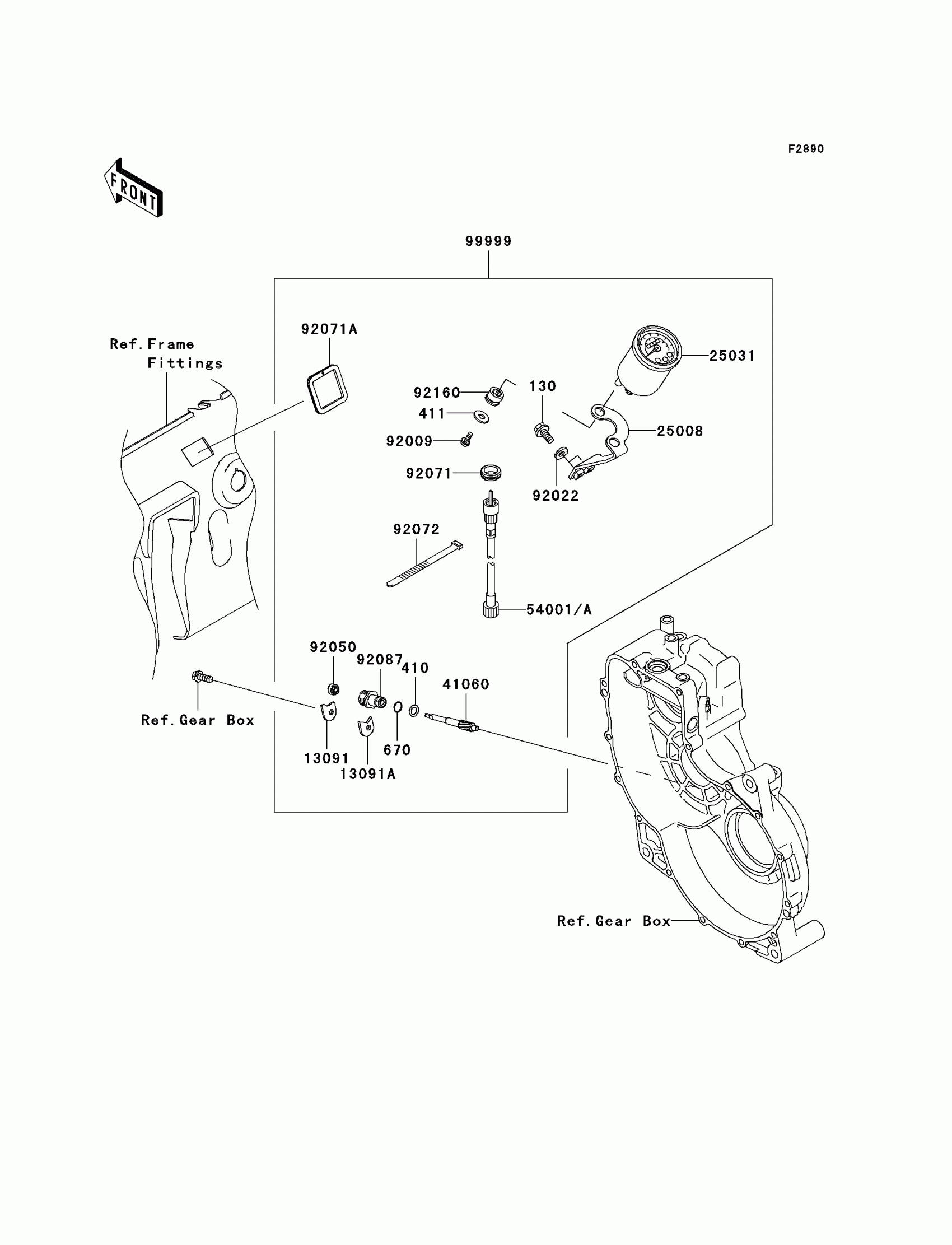

Kawasaki Mule 3010 Trans4x4 Optional Parts Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$2.49

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

411

WASHER PLAIN 8MM

411B0800

$0.93

670

O RING,10MM

670D1510

$4.69

13091

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

25008

BRACKET-METER

25008-1228

$40.27

25031

METER-ASSY,MPH

25031-1190

$229.73

41060

GEAR-METER SCREW

41060-1148

$59.59

54001A

CABLE-SPEEDMETER

54001-7502

$76.22

92009

SCREW,5X12

92009-3740

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92050

SEAL-OIL

92050-075

$11.39

92071

GROMMET

92071-1027

Unavailable

92071A

GROMMET

92071-7504

$4.11

92072

BAND,L=188

92072-1239

$1.73

92087

GUIDE,TACHOMETER GEAR

92087-010

$24.19

92160

DAMPER

92160-1461

$7.49

99999

KIT.,SPEEDOMETER

99999-7505

$225.56
