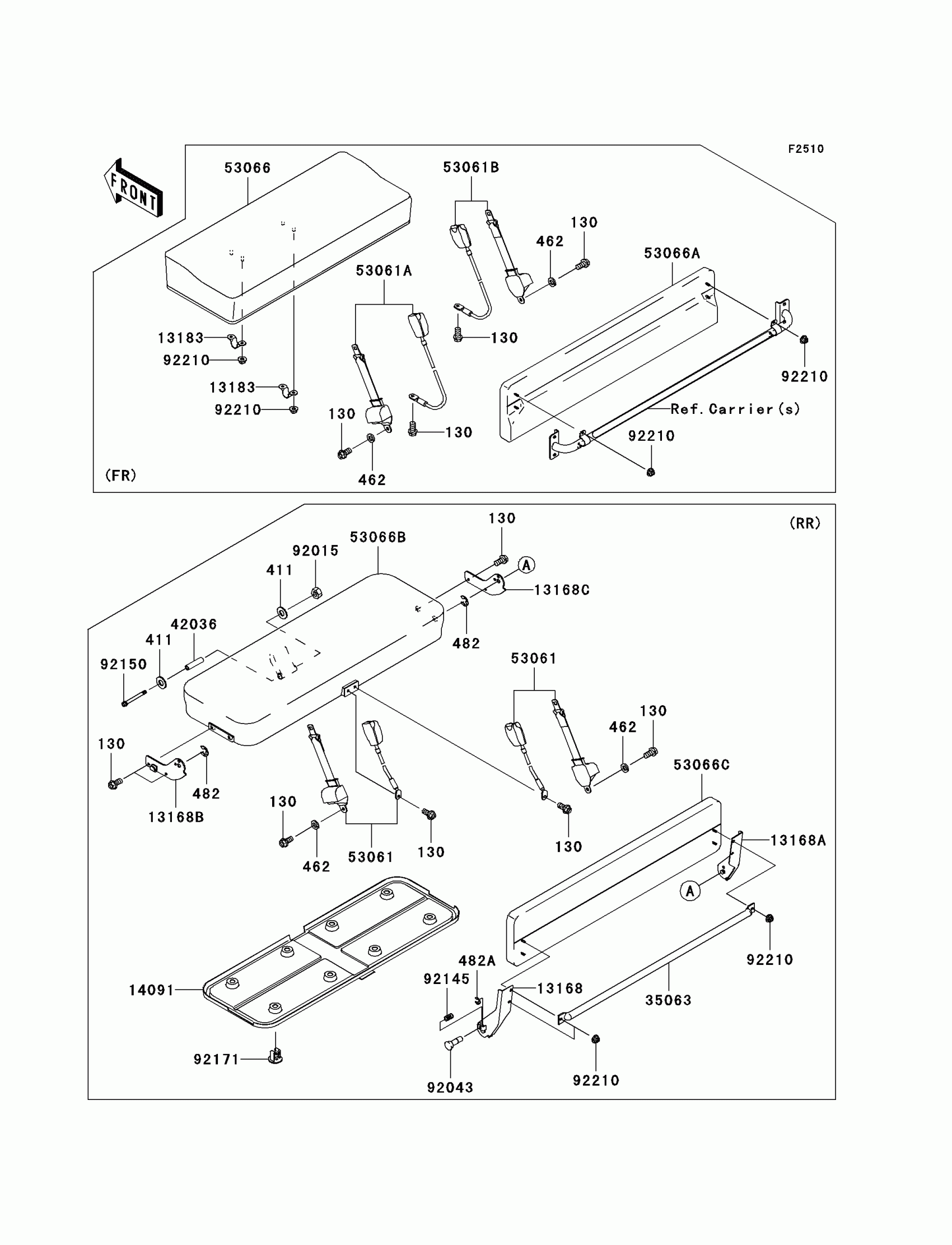

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Seat Diagram

#

Description
Price

130

BOLT-FLANGED,10X20

130J1020

$5.55

411

WASHER-PLAIN

411F1200

$3.92

462

WASHER-SPRING,10MM

462K1000

$2.60

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

482A

CIRCLIP 8MM

482J8000

$1.50

13168

LEVER,SEAT,TOP,LH

13168-7502

$58.46

13168A

LEVER,SEAT,TOP,RH

13168-7503

$58.46

13168B

LEVER,SEAT,LWR,LH

13168-7504

$47.79

13168C

LEVER,SEAT,LWR,RH

13168-7505

$47.79

13183

PLATE,SEAT

13183-1400

$7.58

14091

COVER,REAR SEAT,BOTTOM

14091-7528

$139.87

35063

STAY,REAR BACK

35063-7510

$147.48

42036

SLEEVE,12.1X20X85

42036-7501

$10.13

53061

BELT-SEAT,RR

53061-7502

$54.50

53061A

BELT-SEAT,FR,LH

53061-7503

$54.50

53061B

BELT-SEAT,FR,RH

53061-7504

$54.50

53066

SEAT-ASSY,FR,LWR,S.M.BROWN

53066-7502-MB

$530.44

53066A

SEAT-ASSY,FR,BACK,S.M.BROWN

53066-7503-MB

$257.63

53066B

SEAT-ASSY,RR,LWR,S.M.BROWN

53066-7504-MB

$586.91

53066C

SEAT-ASSY,RR,BACK,S.M.BROWN

53066-7506-MB

$257.63

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92043

PIN

92043-7503

$4.17

92145

SPRING

92145-7507

$1.50

92150

BOLT,FLANGED,12X117

92150-1895

$12.74

92171

CLAMP

92171-7509

$1.12

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67
