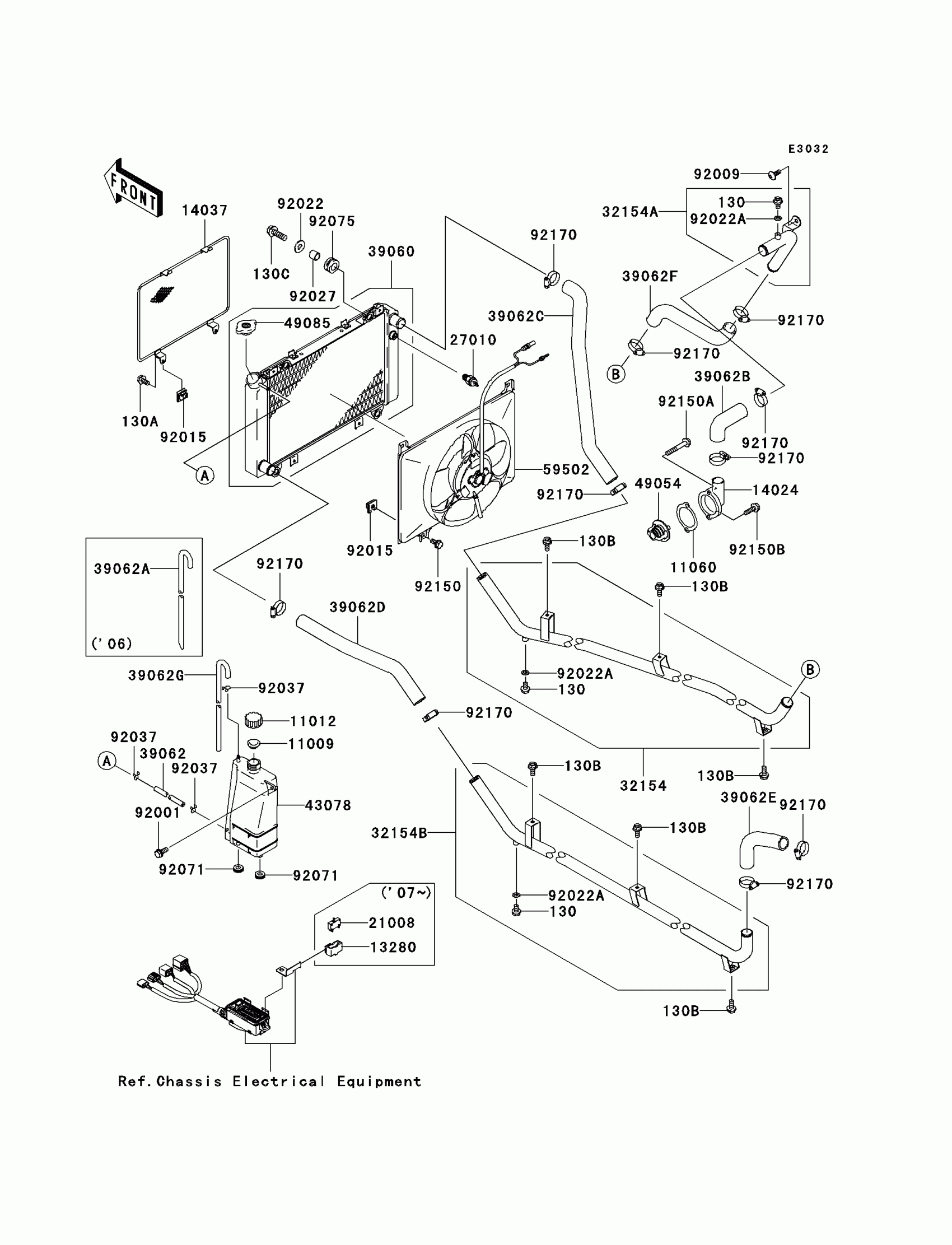

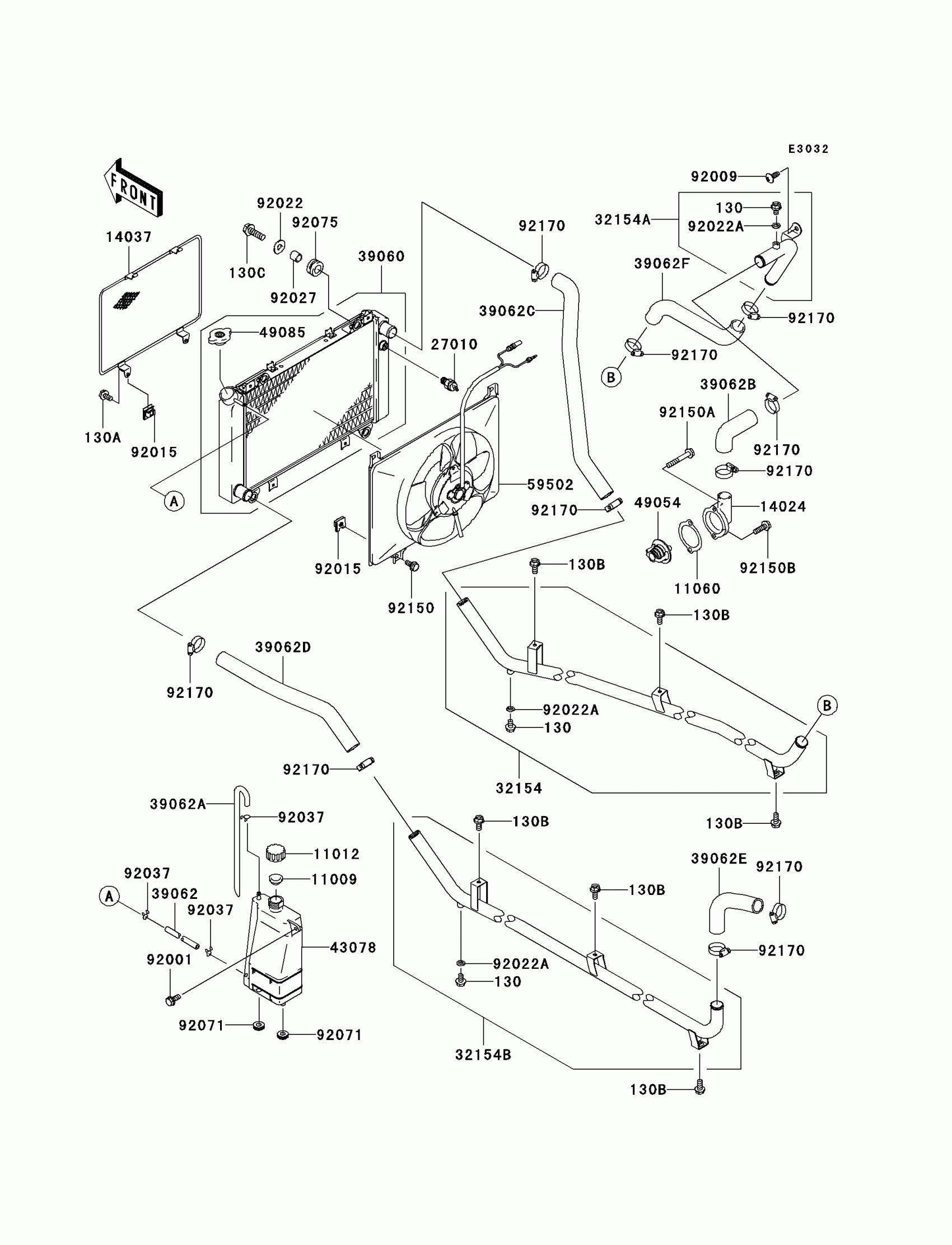

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Radiator Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,6X12

130J0612

$2.19

130B

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130C

BOLT-FLANGED,8X25,BLACK

130J0825

$4.15

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11060

GASKET,THERMOSTAT COVER

11060-2084

$2.83

14024

COVER,THERMOSTAT

14024-2293

Unavailable

14037

SCREEN

14037-1284

Unavailable

27010

SWITCH,FAN

27010-1317

$130.42

32154

PIPE,RH FR

32154-7503

$116.41

32154A

PIPE,RH RR

32154-7505

$30.65

32154B

PIPE,LH

32154-7507

$74.78

39060

RADIATOR

39060-1187

$672.43

39062

HOSE-COOLING,5.5X10.5X600

39062-1829

$4.70

39062A

HOSE-COOLING

39062-1830

$10.84

39062B

HOSE-COOLING

39062-1832

$16.89

39062C

HOSE-COOLING

39062-1834

Unavailable

39062D

HOSE-COOLING

39062-1835

Unavailable

39062E

HOSE-COOLING

39062-1836

Unavailable

39062F

HOSE-COOLING

39062-7502

$18.36

43078

RESERVOIR

43078-1185

Unavailable

49054

THERMOSTAT

49054-2056

$28.18

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

59502

FAN-ASSY

59502-1137

$510.81

92001

BOLT,W/P,6X16

92001-1860

$4.31

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT

92015-1487

$4.80

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92027

COLLAR

92027-102

$1.08

92037

CLAMP,TUBE

92037-147

$7.34

92071

GROMMET

92071-1115

$5.46

92075

DAMPER

92075-294

$4.10

92150

BOLT,6X12

92150-1186

$3.37

92150A

BOLT,6X40

92150-2230

$1.52

92150B

BOLT,6X20

92150-2231

$1.94

92170

CLAMP,COOLING HOSE

92170-1284

$8.20
