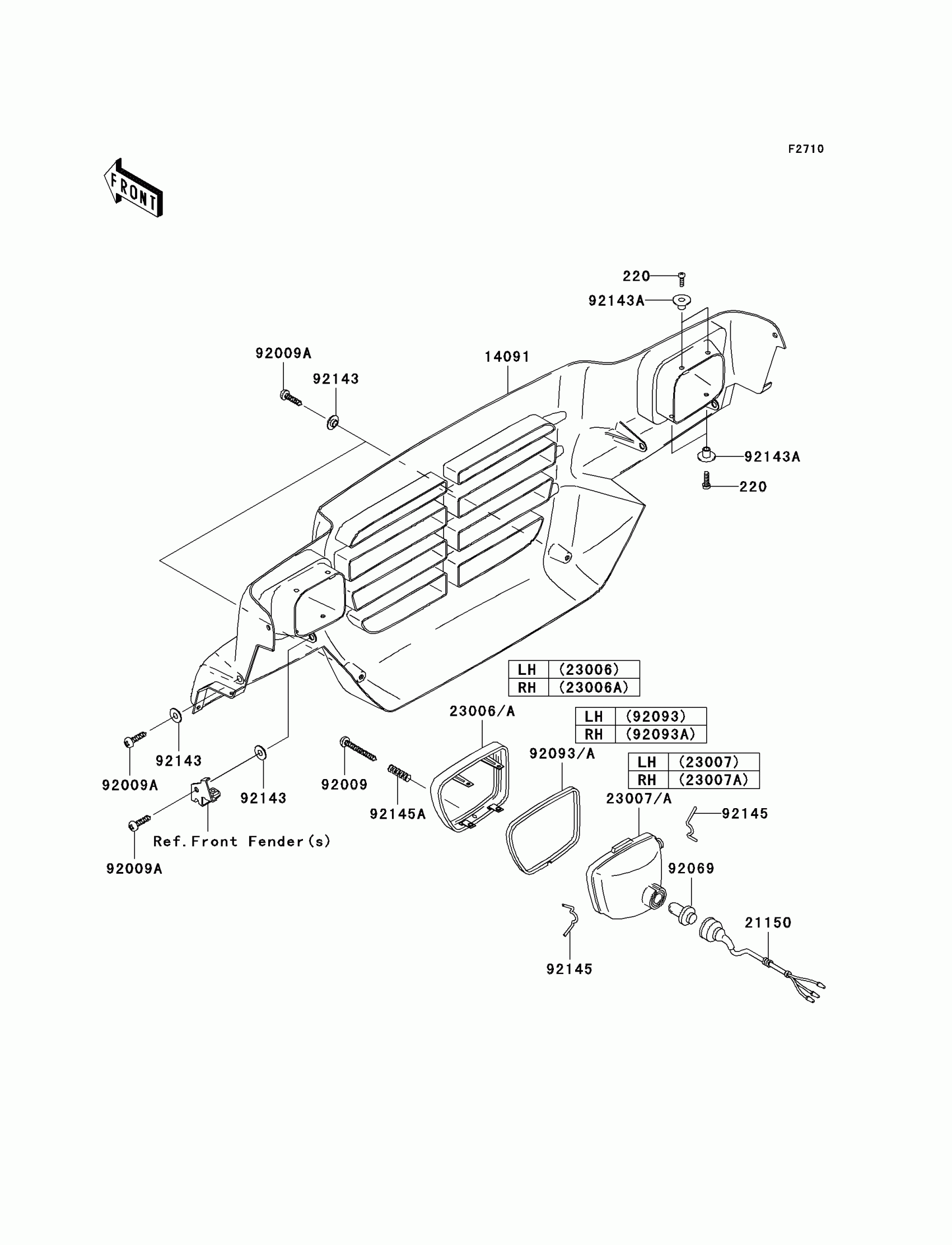

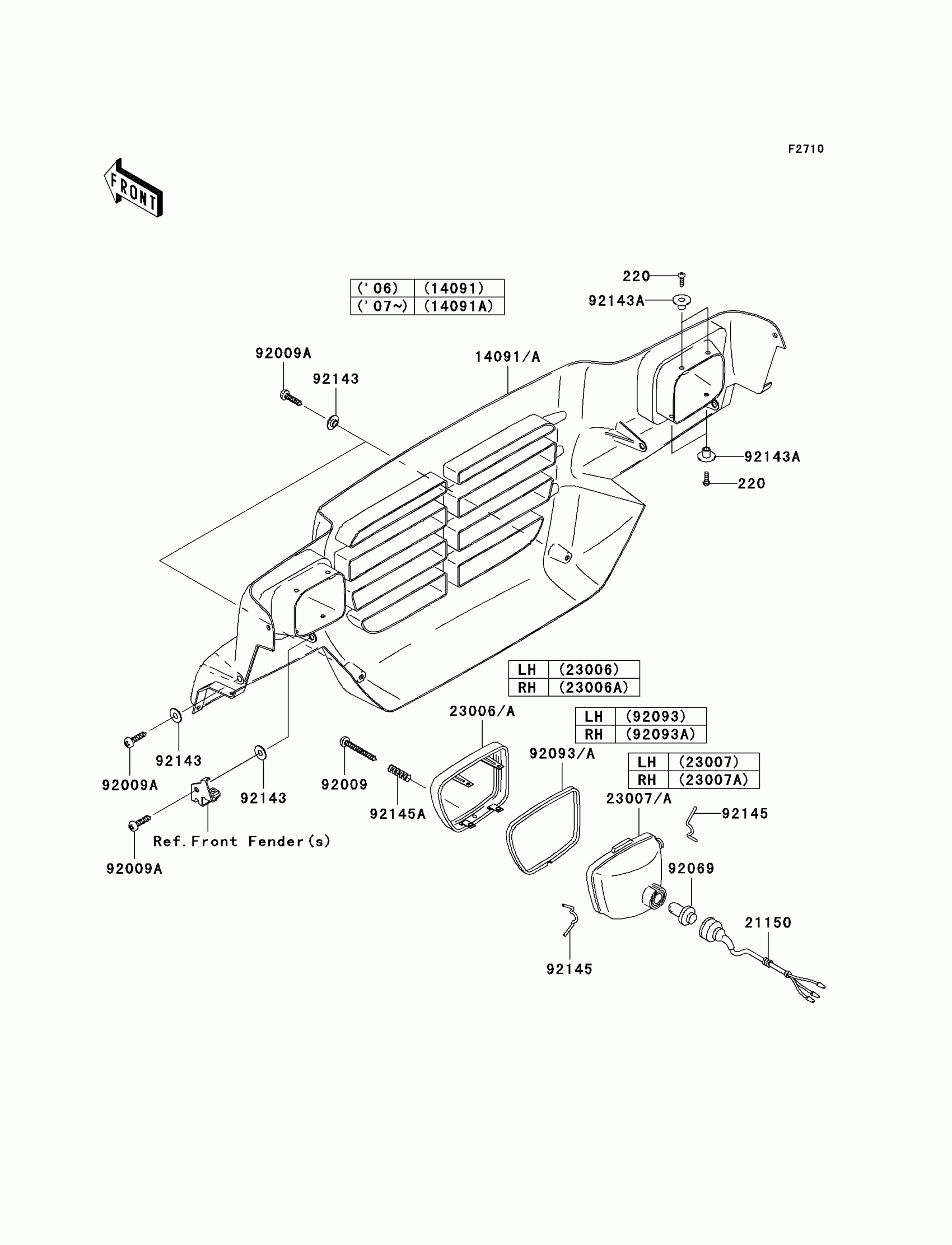

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Headlight(s) Diagram

Description

Price

220

SCREW-PAN-CROSS,5X16

220F0516

$1.71

14091

COVER,FRONT GRIL,F.BLACK

14091-1225-6Z

$126.47

21150

CORD-ASSY,HEAD LAMP

21150-1060

$72.63

23006

RIM-LAMP,LH

23006-1075

$55.26

23006A

RIM-LAMP,RH

23006-1076

$55.26

23007

LENS-COMP,HEAD LAMP,LH

23007-1354

$50.01

23007A

LENS-COMP,HEAD LAMP,RH

23007-1355

$50.01

92009

SCREW,TAPPING,4X30

92009-1139

$4.67

92009A

SCREW,6X16

92009-1621

Unavailable

92069

BULB,12V 30/30W

92069-1080

$30.59

92093

SEAL,HEAD LAMP,LH

92093-1481

$15.98

92093A

SEAL,HEAD LAMP,RH

92093-1482

$15.98

92143

COLLAR

92143-1087

$4.31

92143A

COLLAR

92143-1234

$4.31

92145

SPRING

92145-1190

$3.70

92145A

SPRING

92145-1230

$2.74
