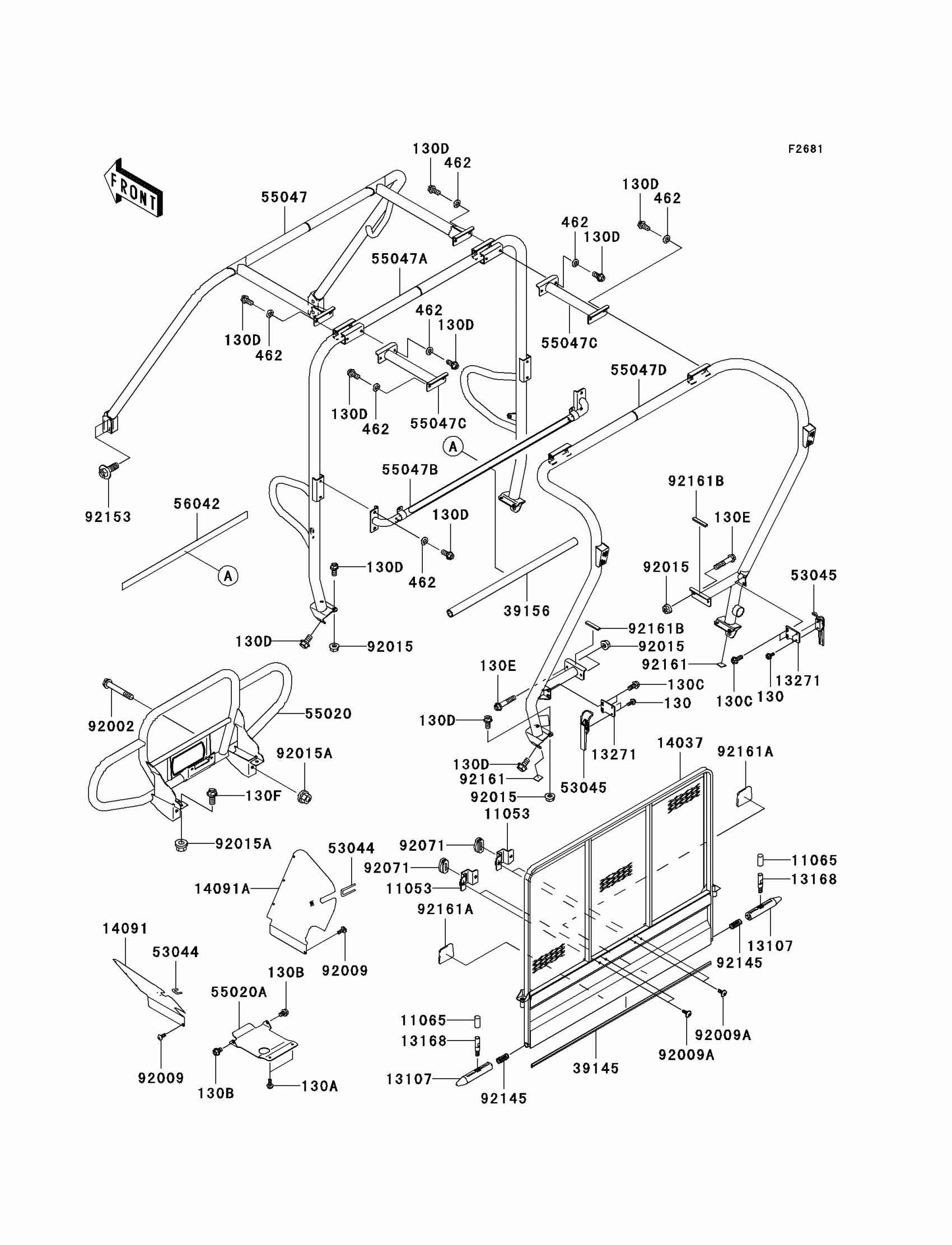

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Guards/Cab Frame Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,8X12

130J0812

Unavailable

130C

BOLT-FLANGED,8X20

130J0820

Unavailable

130D

BOLT-FLANGED,10X20

130J1020

Unavailable

130E

BOLT-FLANGED,10X50

130J1050

Unavailable

130F

BOLT-FLANGED

130P1225

Unavailable

462

WASHER-SPRING,10MM

462K1000

Unavailable

11053

BRACKET,SCREEN

11053-7528

$5.24

11065

CAP

11065-7503

$1.46

13107

SHAFT

13107-7501

$10.42

13168

LEVER

13168-7506

$8.00

13271

PLATE,HOOK

13271-7540

$11.25

14037

SCREEN,REAR CAB

14037-7501

Unavailable

14091

COVER,FR,LH

14091-1142

$75.65

14091A

COVER,FR,RH

14091-1143

$86.23

39145

TRIM-SEAL,L=1157

39145-7502

$29.61

39156

PAD

39156-7502

$12.29

53044

TRIM

53044-1137

$10.25

53045

HOOK-ASSY

53045-7501

$21.71

55020

GUARD,FR

55020-7505

$648.66

55020A

GUARD,GEAR CASE

55020-7506

$30.99

55047

BAR-COMP,FR

55047-7501

$445.22

55047A

BAR-COMP,CNT

55047-7502

Unavailable

55047B

BAR-COMP,FRONT SEAT

55047-7503

$69.21

55047C

BAR-COMP,TOP

55047-7504

$51.22

55047D

BAR-COMP,RR

55047-7507

$753.30

56042

ADHESIVE

56042-7501

$3.98

92002

BOLT,FLANGED,12X75

92002-1661

$10.44

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,10MM

92015-1366

$3.81

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92071

GROMMET

92071-7505

$1.62

92145

SPRING,TENSIONER

92145-1215

$3.52

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92161

DAMPER

92161-0020

$4.42

92161A

DAMPER

92161-0061

$1.73

92161B

DAMPER

92161-7514

$1.27
