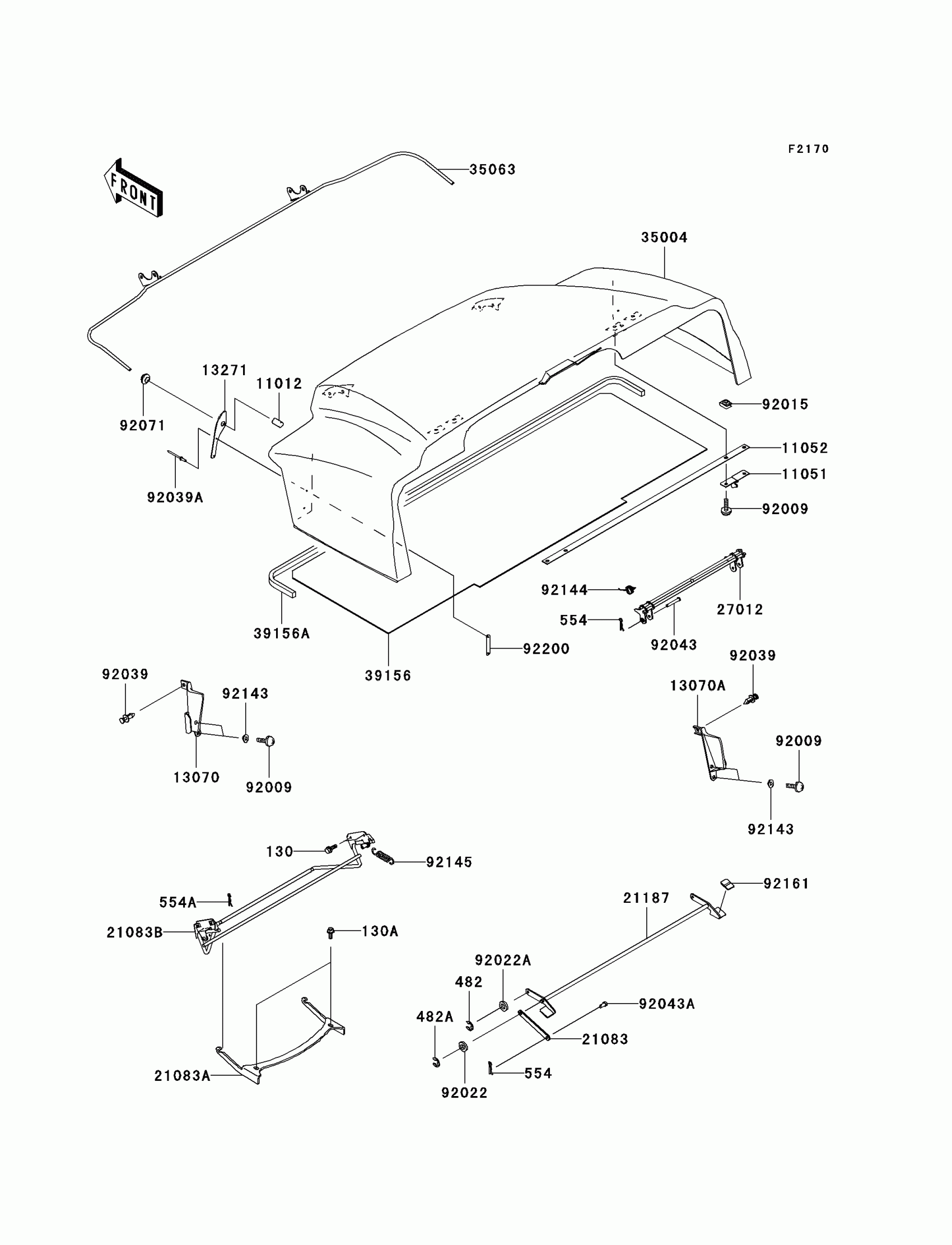

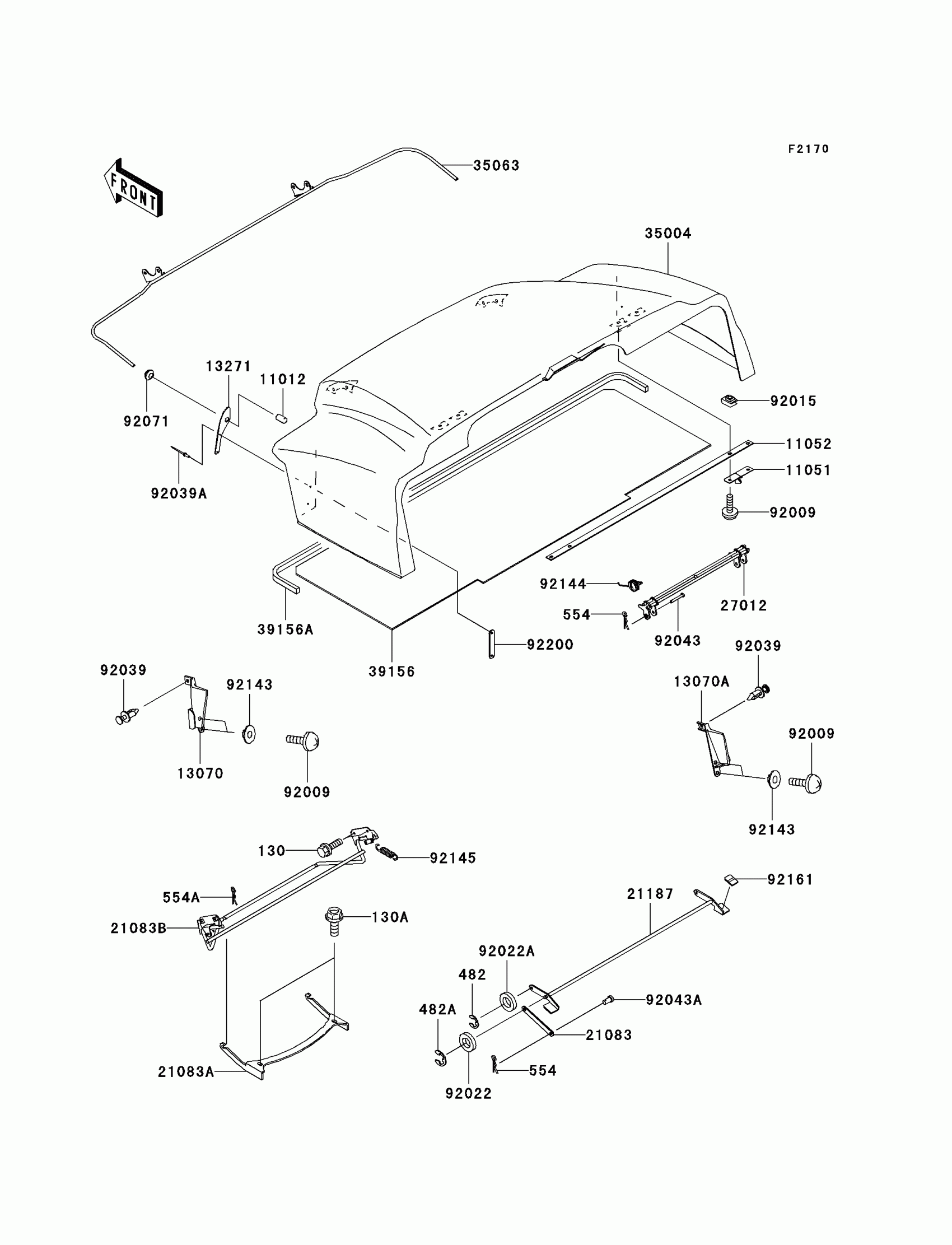

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,8X16

130J0816

Unavailable

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

482A

CIRCLIP-TYPE-E

482L7000

$2.99

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

11012

CAP

11012-1985

$3.92

11051

BRACKET

11051-1756

Unavailable

11052

BRACKET

11052-1369

$14.25

13070

GUIDE,LH

13070-1367

$28.94

13070A

GUIDE,RH

13070-1368

$28.94

13271

PLATE,RR

13271-1800

$5.00

21083

ARM

21083-1146

$2.14

21083A

ARM

21083-1163

$44.33

21083B

ARM

21083-1172

Unavailable

21187

ARM-ASSY

21187-1085

Unavailable

27012

HOOK

27012-1608

$74.09

35004

FENDER-FRONT,C.H.GREEN

35004-0018-374

$131.49

35063

STAY,FR FENDER

35063-1203

$57.36

39156

PAD,FRONT FENDER

39156-0014

$145.42

39156A

PAD

39156-1685

$17.44

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

Unavailable

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92039

RIVET

92039-1229

$0.80

92039A

RIVET

92039-1244

$1.43

92043

PIN,6X39

92043-1625

$2.03

92043A

PIN,6X9

92043-1626

$1.62

92071

GROMMET,10MM

92071-019

$2.97

92143

COLLAR

92143-1087

$2.98

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92145

SPRING

92145-1335

Unavailable

92161

DAMPER

92161-1197

$4.56

92200

WASHER

92200-1592

$3.25
