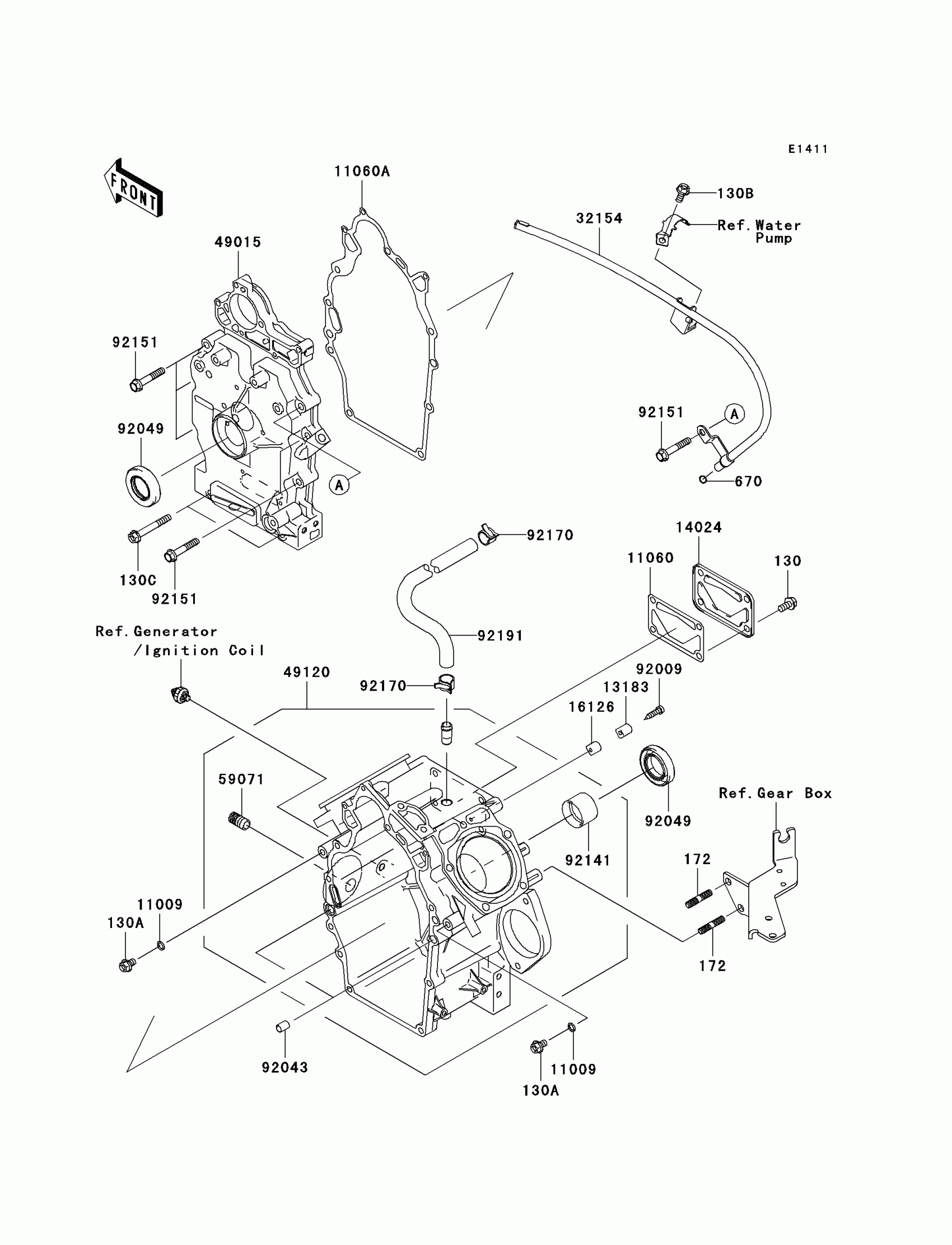

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Crankcase Diagram

Description

Price

130

BOLT-FLANGED,8X16

130B0816

Unavailable

130A

BOLT-FLANGED,8X12,BLACK

130C0812

Unavailable

130B

BOLT-FLANGED,8X16

130G0816

Unavailable

130C

BOLT-FLANGED

130T0860

Unavailable

172

BOLT-STUD,8X25

172G0825

$2.46

670

O RING,10MM

670B2010

$1.13

11009

GASKET

11009-3028

$0.65

11060

GASKET,BREATHER,COVER

11060-2089

$2.54

11060A

GASKET,CRANKCASE COVER

11060-2449

$15.68

13183

PLATE

13183-2120

$0.46

14024

COVER

14024-2292

$3.56

16126

VALVE

16126-2146

$0.59

32154

PIPE,F.BLACK

32154-2067-9H

$37.70

49015

COVER-CRANKCASE

49015-6193

Unavailable

49120

CRANKCASE-COMP

49120-6078

Unavailable

59071

JOINT

59071-2079

$5.80

92009

SCREW

92009-2308

$0.46

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92049

SEAL-OIL

92049-2110

Unavailable

92141

BEARING-PLANE

92141-2110

Unavailable

92151

BOLT

92151-2123

$1.28

92170

CLAMP

92170-3714

$1.29

92191

TUBE

92191-2107

$16.78
