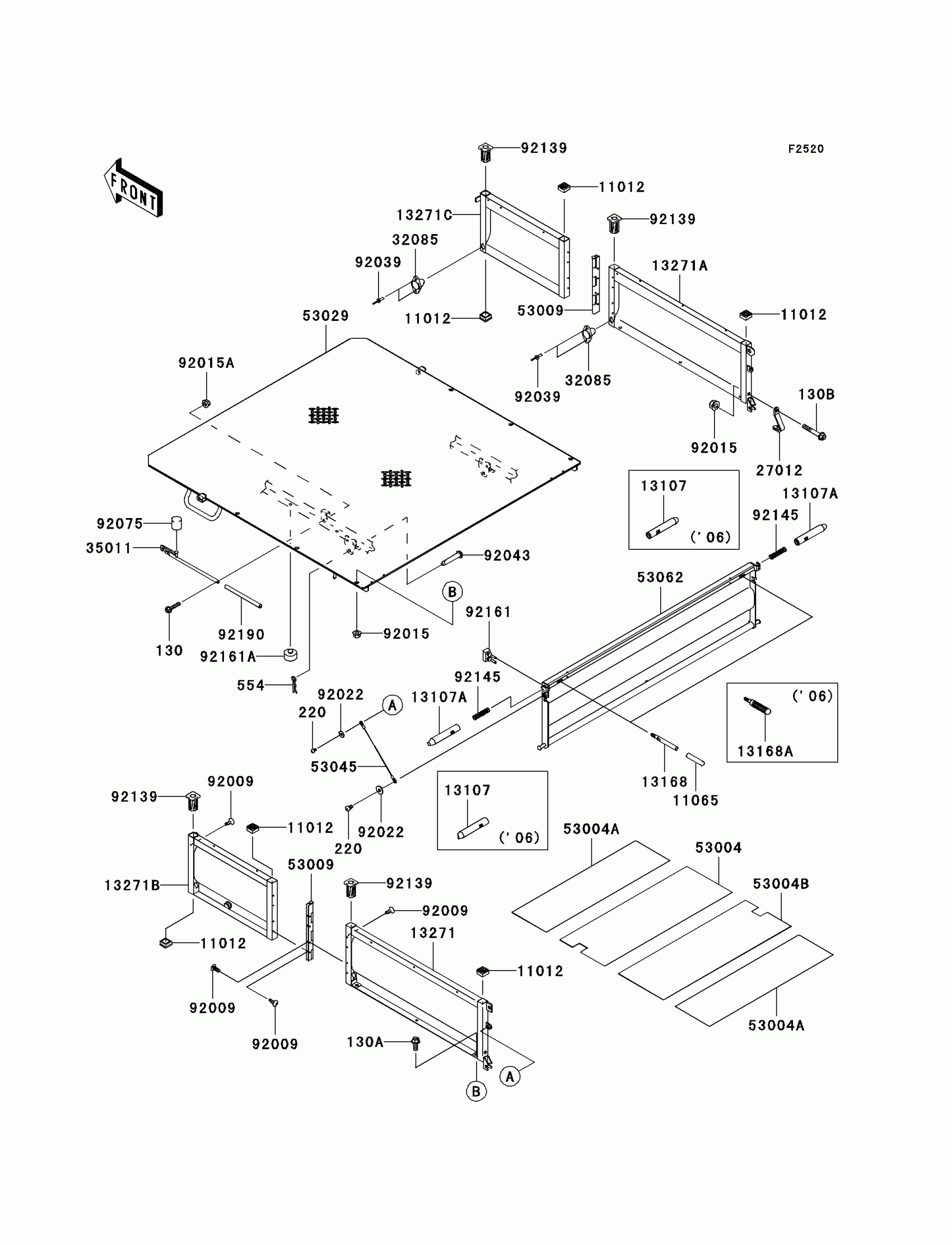

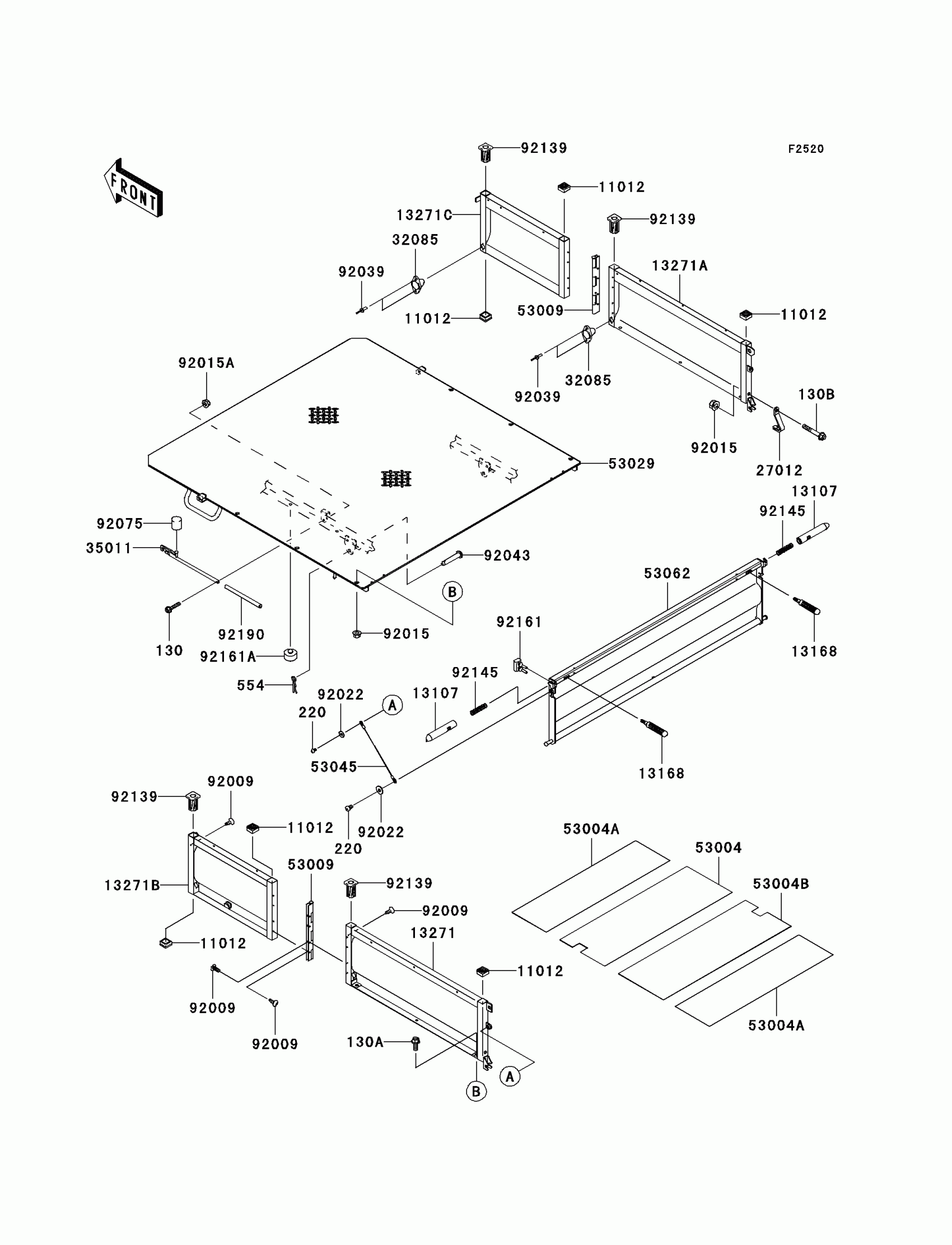

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130H0630

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

130B

BOLT-FLANGED,8X50

130J0850

Unavailable

220

SCREW-PAN-CROSS,6X10

220F0610

$1.33

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

13107

SHAFT

13107-0001

$78.09

13168

LEVER

13168-7501

$18.48

13271

PLATE,SIDE,RR,LH,C.H.GREEN

13271-7563-374

$296.35

13271A

PLATE,SIDE,RR,RH,C.H.GREEN

13271-7564-374

$296.35

13271B

PLATE,SIDE,FR,LH,C.H.GREEN

13271-7565-374

$193.14

13271C

PLATE,SIDE,FR,RH,C.H.GREEN

13271-7566-374

$193.14

27012

HOOK,TAIL GATE

27012-0022

$4.81

32085

STOPPER

32085-7501

$6.61

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53004

MAT

53004-1158

$124.25

53004A

MAT

53004-1160

$109.29

53004B

MAT

53004-7501

$114.34

53009

HINGE,CARRIER

53009-7501

$47.50

53029

CARRIER,BLACK

53029-7512-10

$933.82

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53062

GATE-TAIL,C.H.GREEN

53062-7504-374

$754.74

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92039

RIVET

92039-1150

$3.53

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92139

BUSHING,REAR SCREEN

92139-7501

$4.14

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92161A

DAMPER

92161-7510

$3.32

92190

TUBE,13X16X200

92190-1401

$4.63
