Description

Price

11009

GASKET

11009-3028

$0.70

11060

GASKET,INTAKE MANIFOLD

11060-2087

$3.36

11060A

GASKET,INTAKE MANIFOLD

11060-2088

$2.83

11060B

GASKET

11060-2477

$5.69

11060C

GASKET

11060-2478

$4.34

11060D

GASKET

11060-2479

$4.69

11061

GASKET,CHAMBER

11061-2090

$10.36

11061A

GASKET,COVER

11061-2091

$8.04

13168

LEVER

13168-2473

$54.86

14091

COVER

14091-2067

$9.18

14091A

COVER

14091-2068

$38.20

15003

CARBURETOR-ASSY

15003-2766

$521.46

16060

PIPE-INTAKE

16060-2195

$55.00

16146

COVER-ASSY

16146-2229

$16.31

16183

FLOAT-ASSY

16183-2006

$46.37

16184

CHAMBER-ASSY-FLOAT

16184-2006

$93.75

16185

VALVE-ASSY-THROTTLE

16185-2038

$105.95

16186

VALVE-ASSY-CHOKE

16186-2037

$88.97

23013

SCREW-ASSY

23013-2061

$7.20

32099

CASE

32099-2374

$54.64

49006

BOOT

49006-2053

Unavailable

49019

FILTER-FUEL

49019-1093

$14.79

59071

JOINT

59071-2138

$20.51

59071A

JOINT

59071-2139

$12.37

59076

MANIFOLD-INTAKE

59076-2069

$52.96

92009

SCREW,DRAIN

92009-2015

$4.94

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92063

JET-MAIN,#86.3

92063-2363

Unavailable

92063A

JET-MAIN,#85

92063-2376

Unavailable

92063B

JET-MAIN,#92.5

92063-2402

$11.33

92063C

JET-MAIN,#90

92063-2403

$17.63

92063D

JET-MAIN,#87.5

92063-2405

Unavailable

92063E

JET-MAIN,#91.3

92063-2407

Unavailable

92063F

JET-MAIN,#88.8

92063-2413

Unavailable

92064

JET-PILOT

92064-2132

$13.86

130

BOLT,FLANGED,6X20

130B0620

$1.69

130A

BOLT-FLANGED,6X45

130B0645

$0.86

130B

BOLT-FLANGED,6X30

130G0630

$1.42

130C

BOLT-FLANGED,6X40

130G0640

$1.17

130D

BOLT-FLANGED

130G0680

$1.48

130E

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

132

BOLT-FLANGED-SMALL

132L0812

$1.76

214

SCREW-PAN+-

214B0414

$0.70

551

PIN-DOWEL,4X10

551A0410

$0.65

92093

SEAL

92093-2115

$3.35

92151

BOLT,6X20

92151-2138

$1.23

92170

CLAMP

92170-2082

$0.84

92171

CLAMP

92171-2066

$5.50

92191

TUBE

92191-2140

$30.81

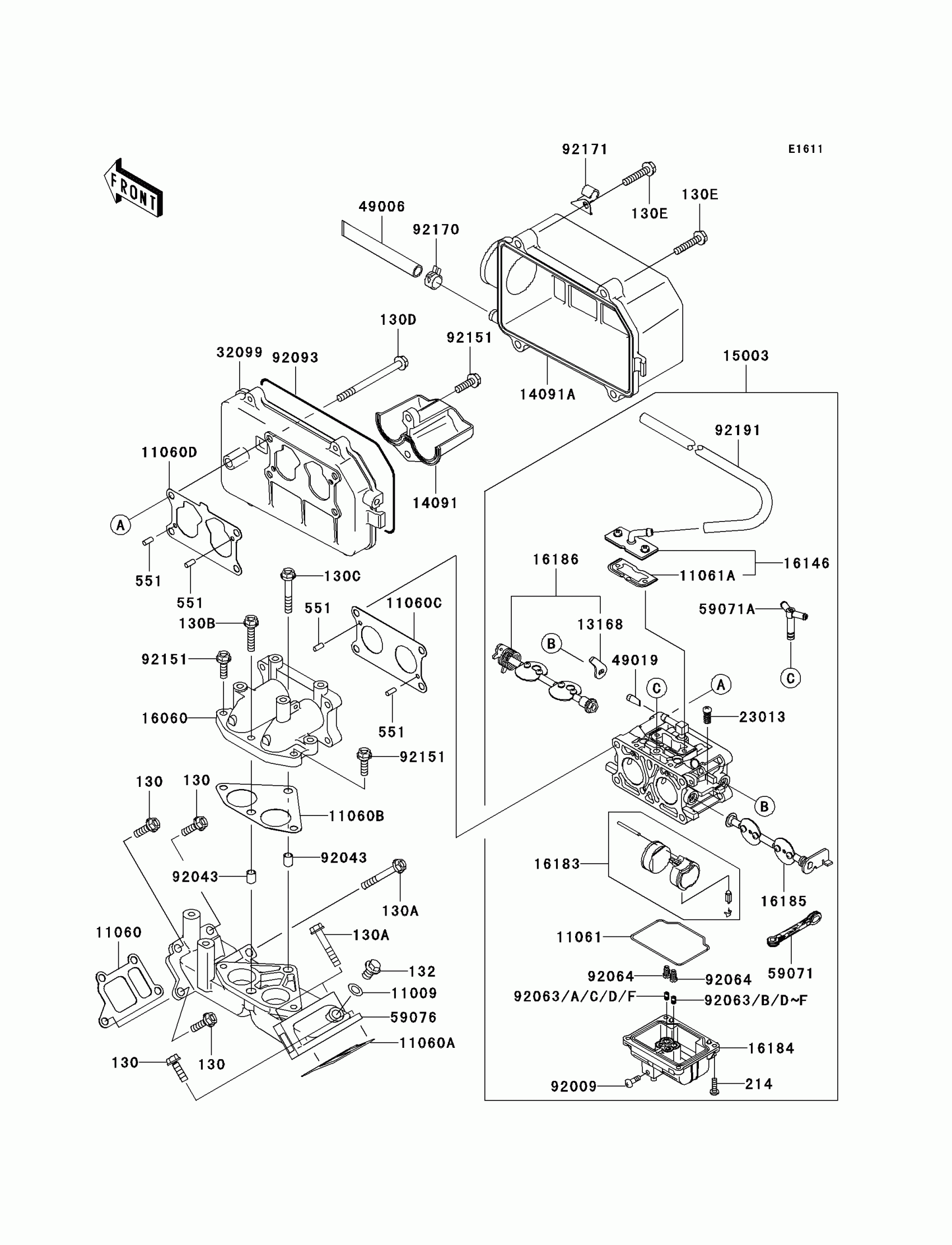

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Carburetor Diagram

GASKET

GASKET,INTAKE MANIFOLD

GASKET,INTAKE MANIFOLD

GASKET

GASKET

GASKET

GASKET,CHAMBER

GASKET,COVER

LEVER

COVER

COVER

CARBURETOR-ASSY

PIPE-INTAKE

COVER-ASSY

FLOAT-ASSY

CHAMBER-ASSY-FLOAT

VALVE-ASSY-THROTTLE

VALVE-ASSY-CHOKE

SCREW-ASSY

CASE

BOOT

FILTER-FUEL

JOINT

JOINT

MANIFOLD-INTAKE

SCREW,DRAIN

PIN,DOWEL,8X10

JET-MAIN,#86.3

JET-MAIN,#85

JET-MAIN,#92.5

JET-MAIN,#90

JET-MAIN,#87.5

JET-MAIN,#91.3

JET-MAIN,#88.8

JET-PILOT

BOLT,FLANGED,6X20

BOLT-FLANGED,6X45

BOLT-FLANGED,6X30

BOLT-FLANGED,6X40

BOLT-FLANGED

BOLT-FLANGED,6X30,BLACK

BOLT-FLANGED-SMALL

SCREW-PAN+-

PIN-DOWEL,4X10

SEAL

BOLT,6X20

CLAMP

CLAMP

TUBE
