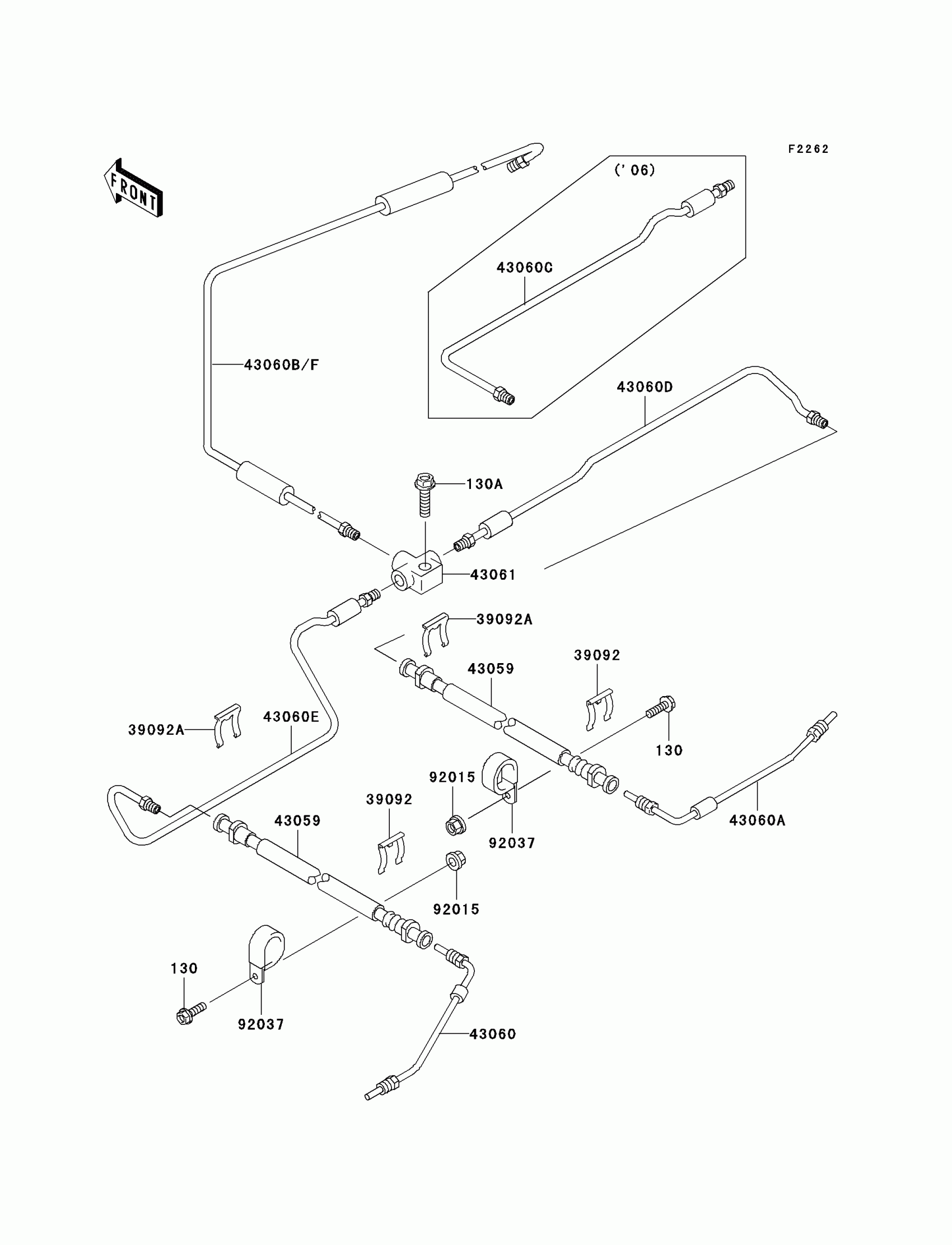

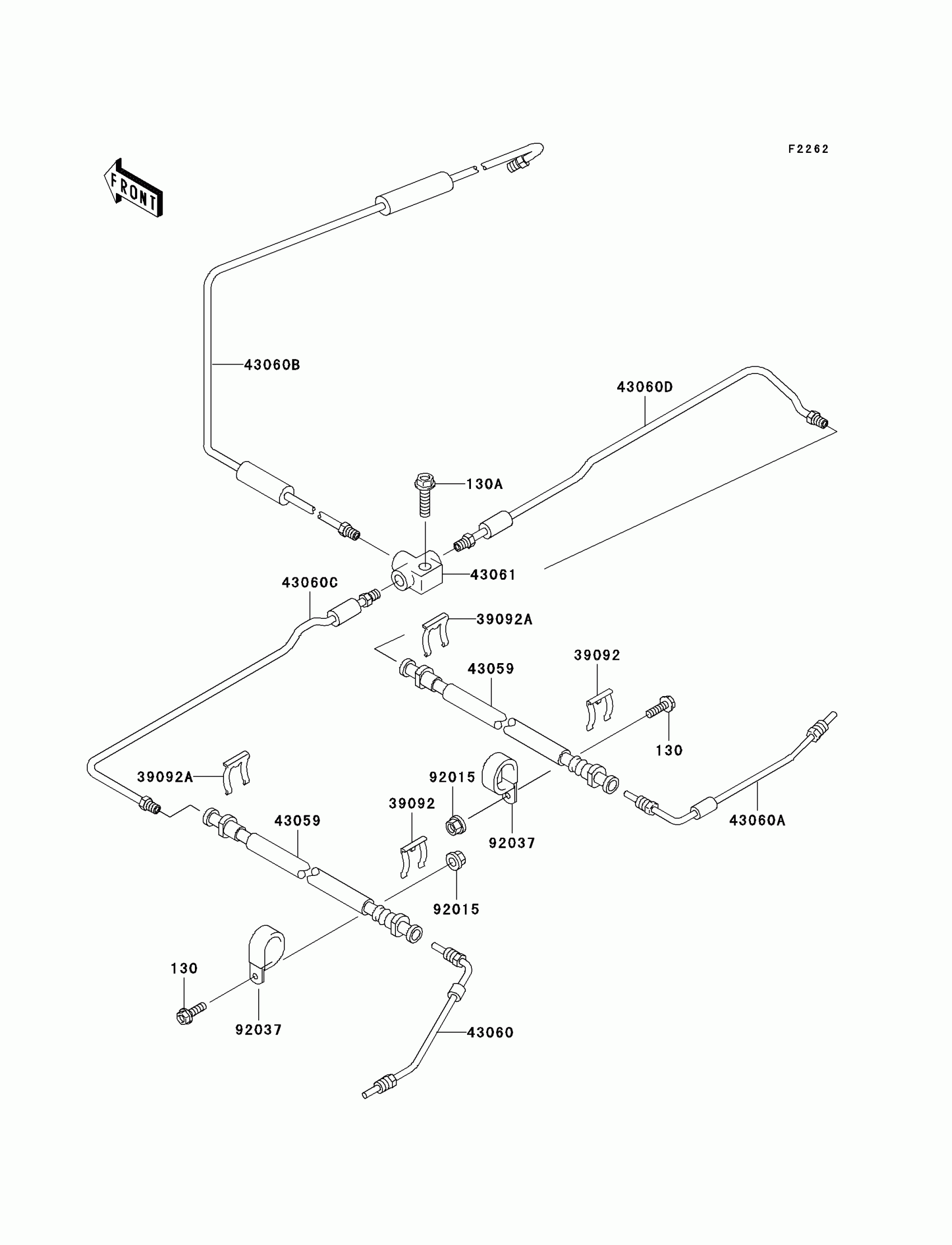

Kawasaki Mule 3010 Trans4x4 Hardwoods Green HD Brake Piping Diagram

Description

Price

130

BOLT-FLANGED,6X20

130D0620

Unavailable

130A

BOLT-FLANGED,8X30

130D0830

Unavailable

39092

PIN-HAIR

39092-1052

$6.07

39092A

PIN-HAIR

39092-1059

$3.31

43059

HOSE-BRAKE,RR

43059-1490

$11.22

43060

PIPE-BRAKE,RR,LH

43060-1083

$16.71

43060A

PIPE-BRAKE,RR,RH

43060-1084

$22.05

43060B

PIPE-BRAKE,RR,FR

43060-7501

Unavailable

43060C

PIPE-BRAKE,MIDDLE,LH

43060-7502

$33.68

43060D

PIPE-BRAKE,MIDDLE,RH

43060-7503

$25.70

43061

JOINT-BRAKE

43061-1063

$34.99

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92037

CLAMP

92037-1608

$6.18
