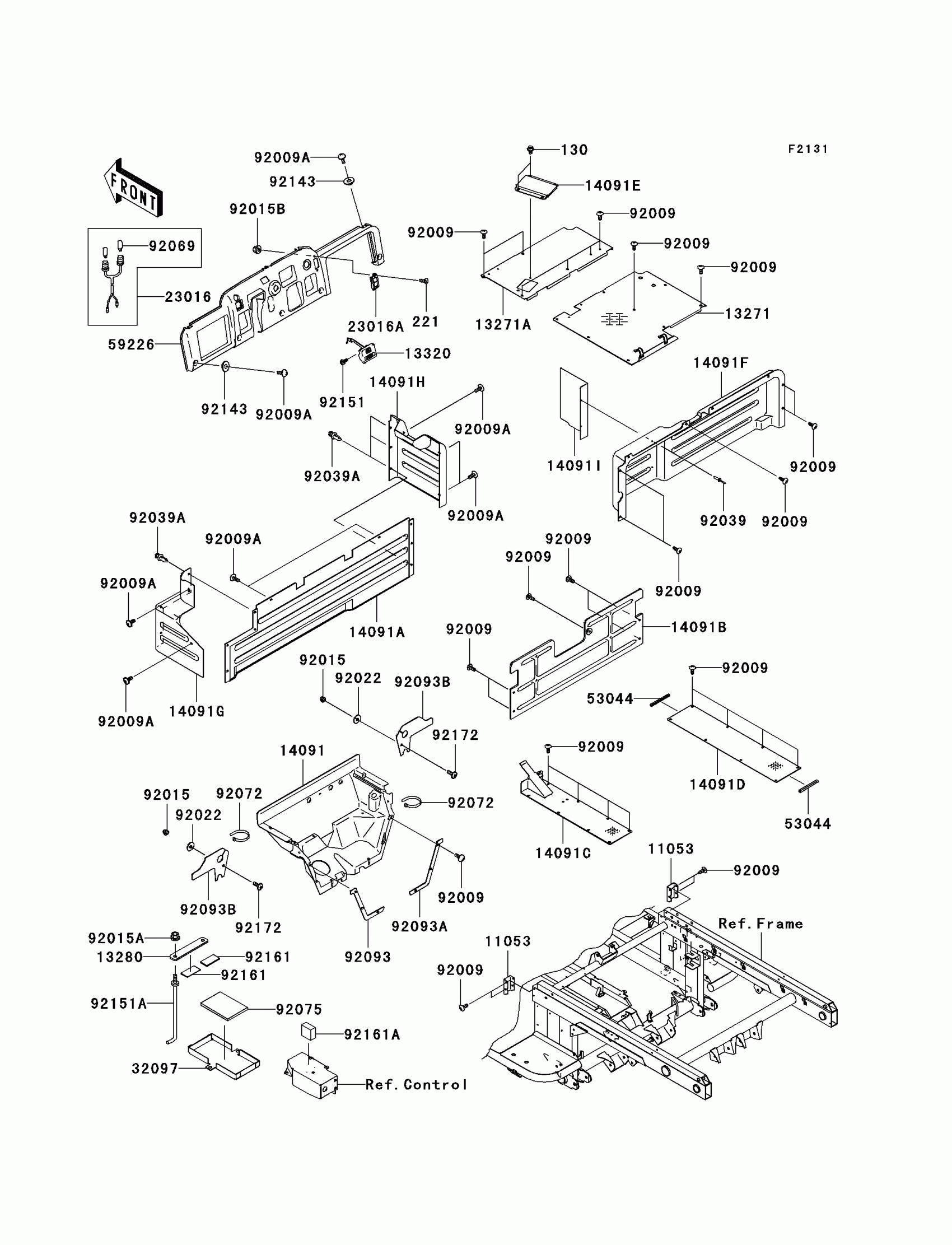

Kawasaki Mule 3010 Trans4x4 Frame Fittings Diagram

#

Description
Price

11053

BRACKET,PUMP BREEZER COVER

11053-7539

$7.76

13271

PLATE,FLOOR,RH

13271-7573

Unavailable

13271A

PLATE,FLOOR,RH

13271-7576

$83.12

13280

HOLDER,BATTERY

13280-7505

$7.00

13320

LEVER-ASSY

13320-1016

$118.91

14091

COVER,FLOOR

14091-1378

$98.40

14091A

COVER,FRONT SEAT,CNT

14091-7531

$113.24

14091B

COVER,REAR SEAT,LWR

14091-7532

$98.48

14091C

COVER,FLOOR,CNT,FR

14091-7534

$88.76

14091D

COVER,FLOOR,CNT,RR

14091-7535

$82.33

14091E

COVER

14091-7536

$20.39

14091F

COVER,FRONT SEAT,RR,LWR

14091-7540

$118.45

14091G

COVER,FRONT SEAT,LH

14091-7541

$34.21

14091H

COVER,FRONT SEAT,RH

14091-7542

$49.47

14091I

COVER,FUEL TANK

14091-7543

$43.03

23016

LAMP-ASSY,INDICATOR

23016-1188

$51.85

23016A

LAMP-ASSY

23016-1189

Unavailable

32097

CASE-BATTERY

32097-7501

$37.28

53044

TRIM,L=111

53044-7502

$7.68

59226

PANEL-CONTROL,GRAY

59226-1060-284

$151.98

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET

92039-1150

$3.92

92039A

RIVET

92039-1229

$1.19

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=365

92072-1197

$7.84

92075

DAMPER

92075-1076

$8.86

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093A

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92093B

SEAL,LOWER COVER

92093-1295

$22.57

92143

COLLAR

92143-1087

$4.31

92151

BOLT,FLANGED,5X12

92151-1305

$1.59

92151A

BOLT,BATTERY

92151-1897

$6.69

92161

DAMPER

92161-0032

$3.90

92161A

DAMPER

92161-7515

$1.12

92172

SCREW,6X18

92172-0002

$2.80

130

BOLT-FLANGED

130J0610

$2.33

221

SCREW-CSK-CROS

221C0616

Unavailable
