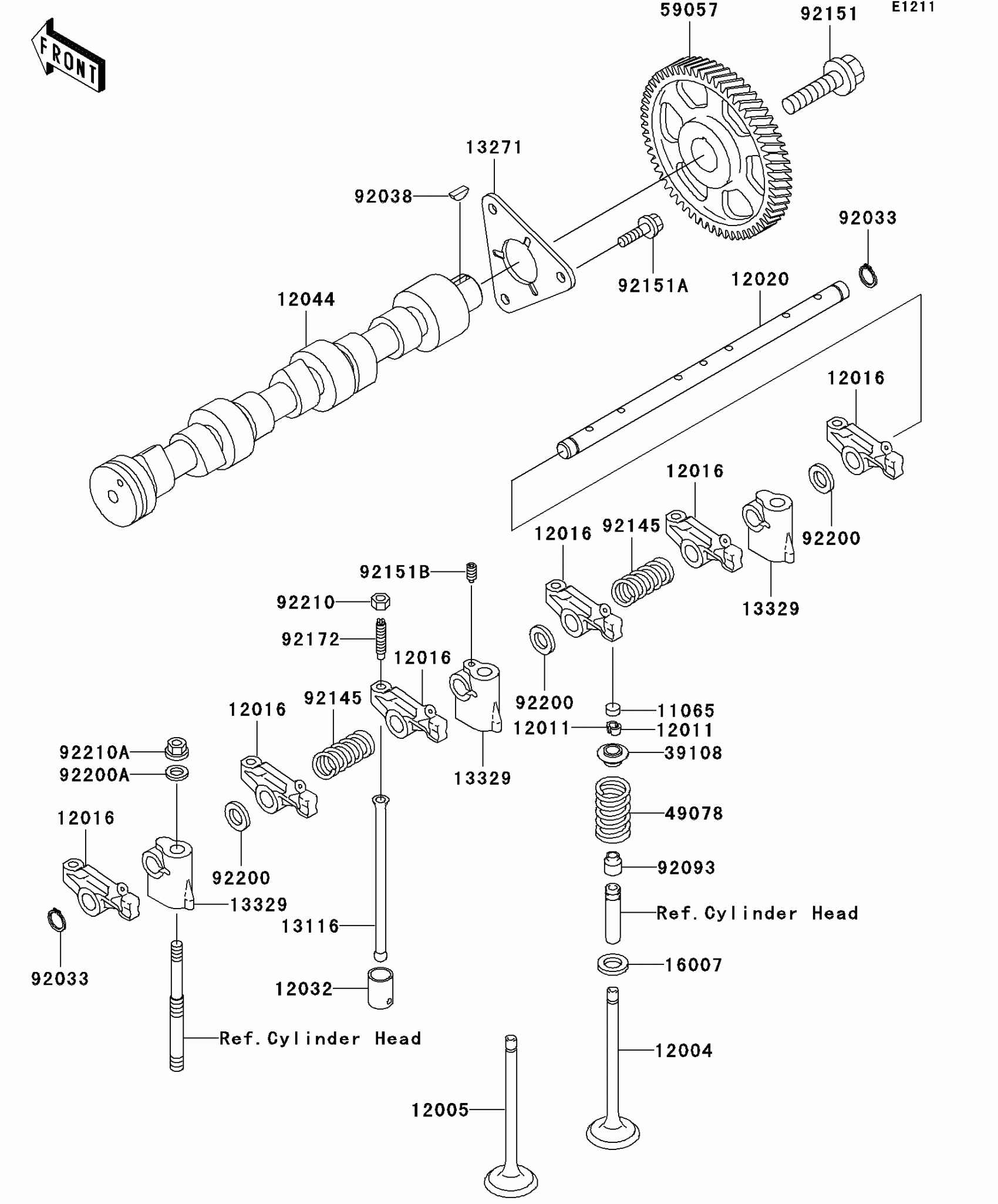

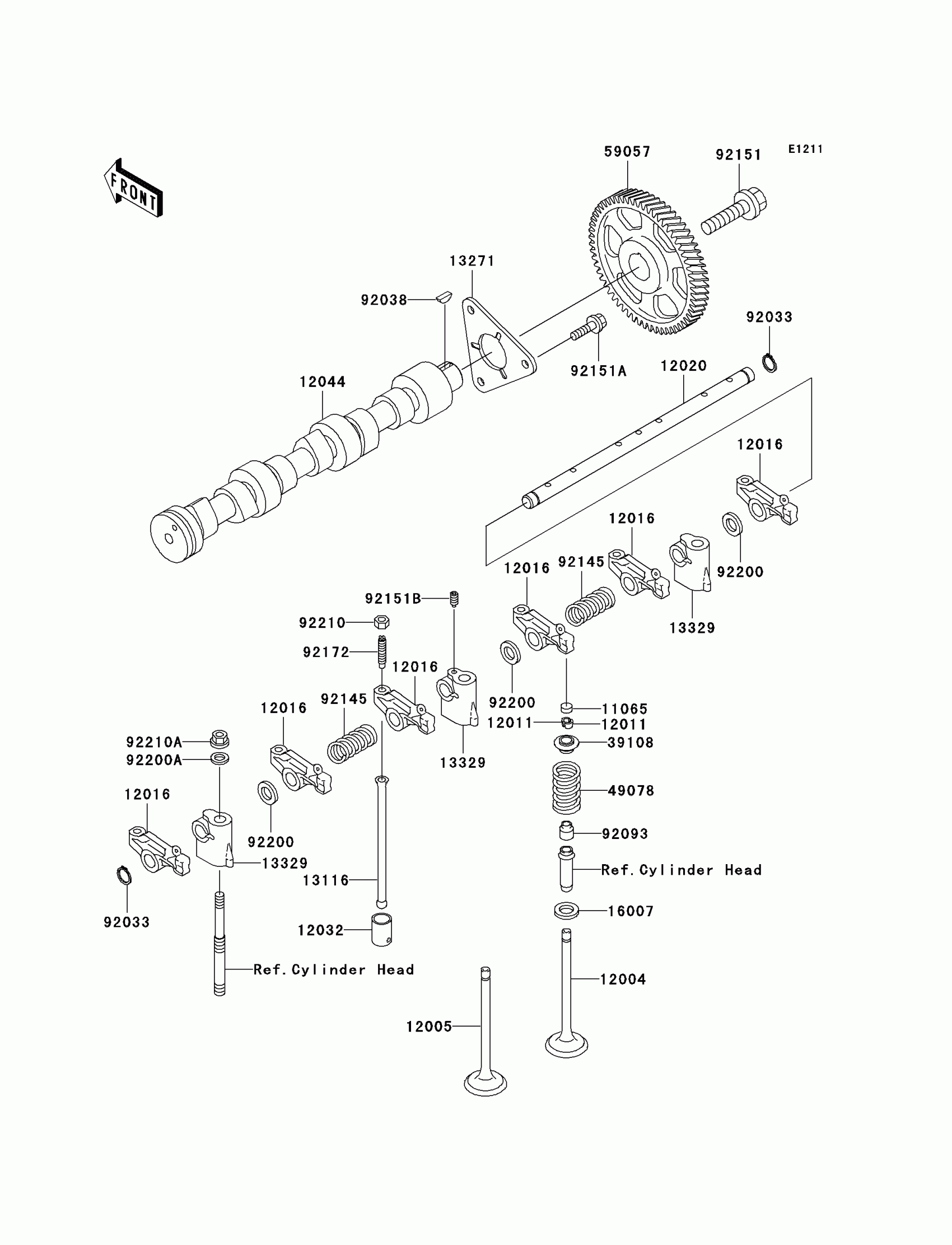

Kawasaki Mule 3010 Trans4x4 Diesel Valve(s)/Camshaft(s) Diagram

Description

Price

11065

CAP,VALVE STEM

11065-0117

$7.29

12004

VALVE-INTAKE

12004-1145

$40.92

12005

VALVE-EXHAUST

12005-1297

$44.39

12011

COLLET

12011-1054

$2.55

12016

ARM-ROCKER

12016-1120

$57.33

12020

SHAFT-ROCKER

12020-1082

$39.89

12032

TAPPET

12032-1064

$20.41

12044

CAMSHAFT-VALVE

12044-1468

$347.42

13116

ROD-PUSH

13116-0015

$15.94

13271

PLATE

13271-1364

$24.33

13329

SUPPORT,ROCKER SHAFT

13329-1001

$18.81

16007

SEAT-SPRING

16007-1202

$2.55

39108

RETAINER-SPRING

39108-1151

$5.11

49078

SPRING-ENGINE VALVE

49078-1203

$4.34

59057

GEAR-HELICAL,CAMSHAFT

59057-1001

$159.07

92033

RING-SNAP

92033-1316

$3.74

92038

KEY

92038-1064

$2.55

92093

SEAL,VALVE STEM

92093-1521

$6.89

92145

SPRING,ROCKER ARM

92145-1288

$2.55

92151

BOLT,10X29

92151-1676

$9.09

92151A

BOLT,6X18

92151-1677

$2.58

92151B

BOLT,ROCKER SHAFT SET

92151-1678

$3.46

92172

SCREW,VALVE ADJUST

92172-0210

$8.03

92200

WASHER,ROCKER ARM

92200-1501

$2.58

92200A

WASHER,8MM

92200-1502

$2.58

92210

NUT,VALVE ADJUST

92210-1213

$2.58

92210A

NUT,8MM

92210-1214

$2.58
