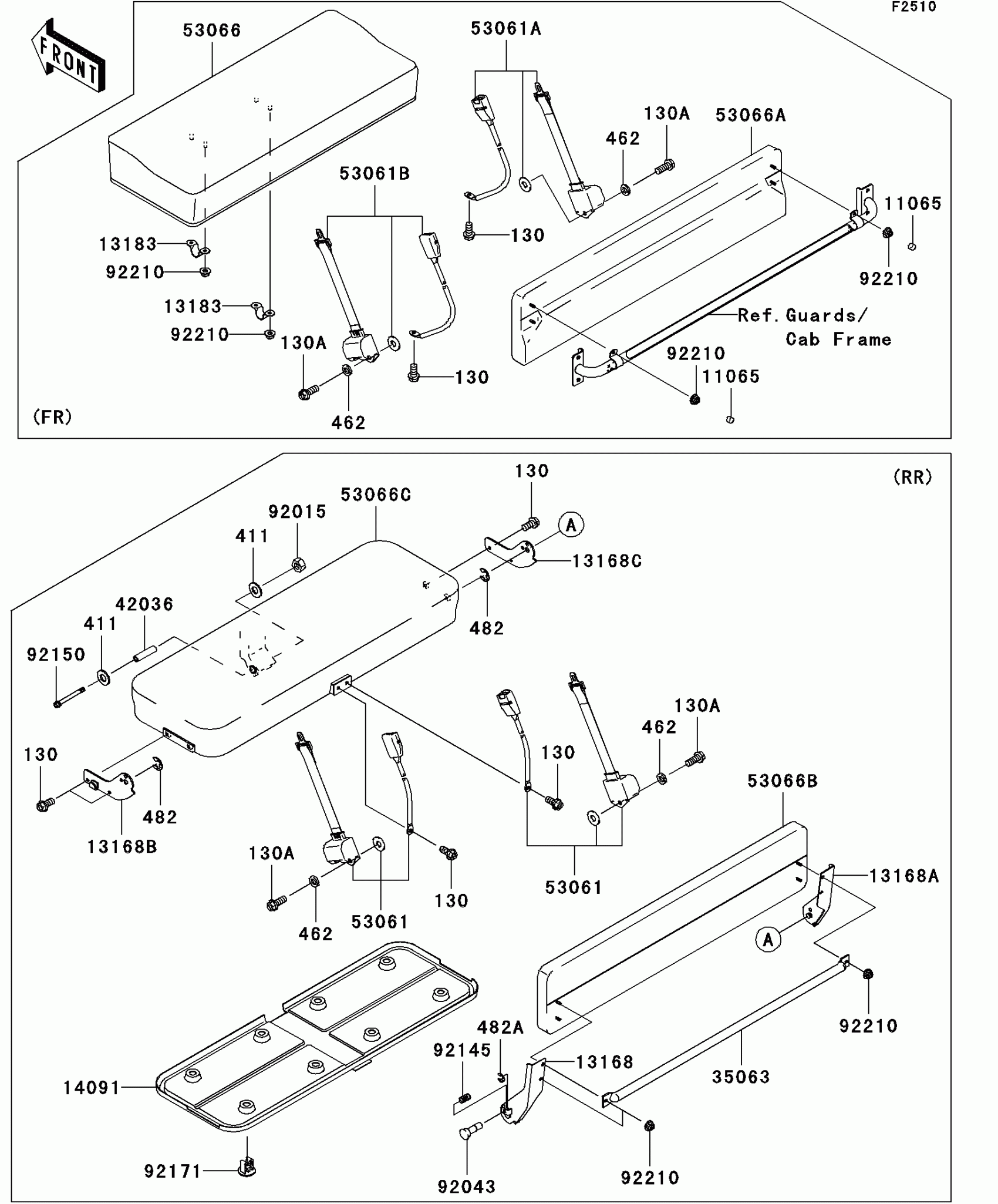

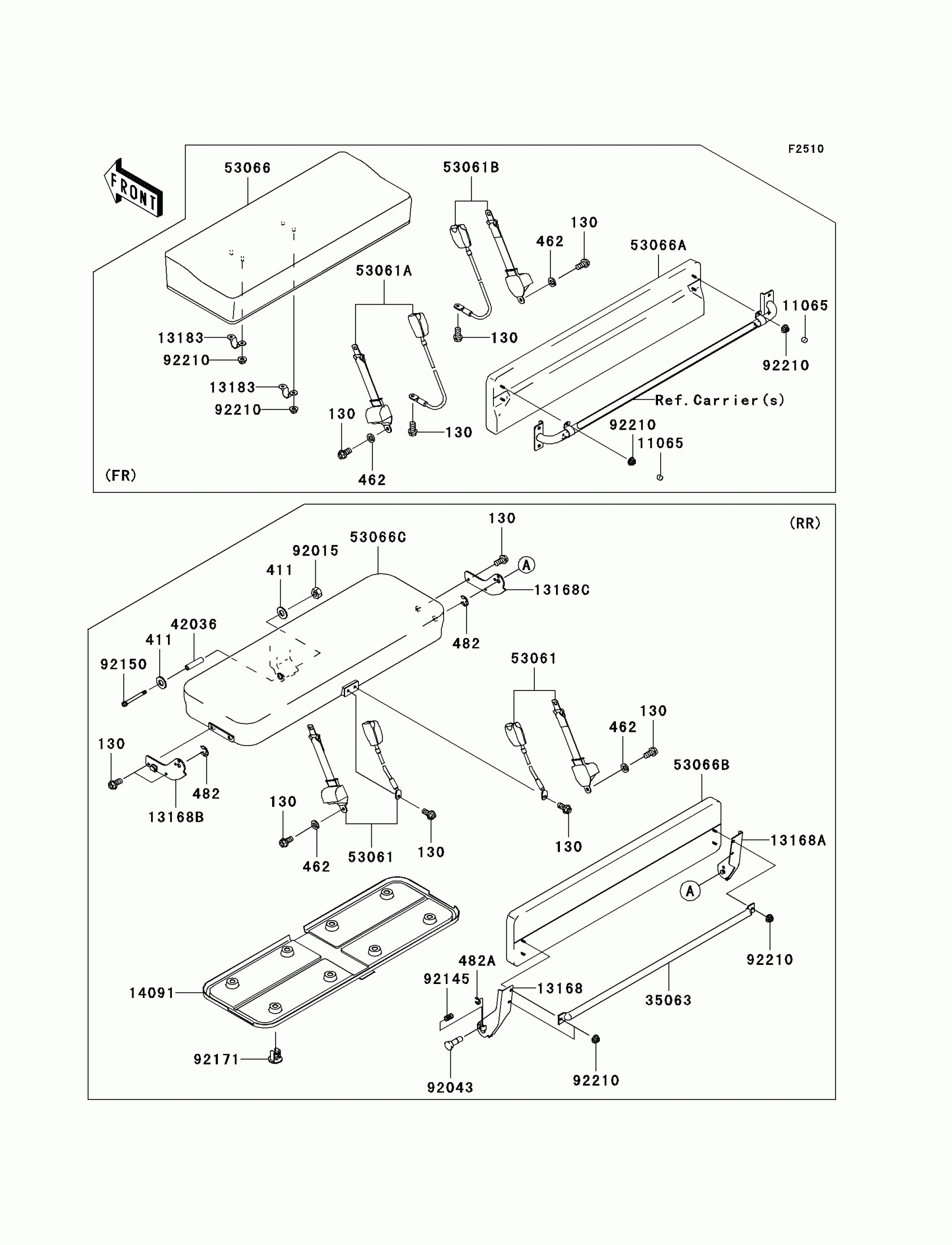

Kawasaki Mule 3010 Trans4x4 Diesel Seat Diagram
#
Description
Price
11065
CAP
11065-7504
$1.50
13168
LEVER,SEAT,TOP,LH
13168-7502
$58.46
13168A
LEVER,SEAT,TOP,RH
13168-7503
$58.46
13168B
LEVER,SEAT,LWR,LH
13168-7504
$47.79
13168C
LEVER,SEAT,LWR,RH
13168-7505
$47.79
13183
PLATE,SEAT
13183-1400
$7.58
14091
COVER,REAR SEAT,BOTTOM
14091-7556
Unavailable
35063
STAY,REAR BACK
35063-7510
$147.48
42036
SLEEVE,12.1X20X85
42036-7501
$10.13
53061
BELT-SEAT,RR
53061-7506
$127.15
53061A
BELT-SEAT,FR,RH
53061-7507
$127.15
53061B
BELT-SEAT,FR,LH
53061-7508
$127.15
53066
SEAT-ASSY,FR,LWR,GRAY
53066-7502-338
$530.44
53066A
SEAT-ASSY,FR,BACK,GRAY
53066-7503-338
$257.63
53066B
SEAT-ASSY,RR,BACK,GRAY
53066-7507-338
$257.63
53066C
SEAT-ASSY,RR,LWR,GRAY
53066-7509-338
Unavailable
92015
NUT,LOCK,12MM,BLACK
92015-1190
$7.34
92043
PIN
92043-7503
$4.17
92145
SPRING
92145-7507
$1.50
92150
BOLT,FLANGED,12X117
92150-1895
$12.74
92171
CLAMP
92171-7509
$1.12
92210
NUT,FLANGED,LOCK,8MM
92210-0005
$4.67
130
BOLT-FLANGED,10X20
130J1020
$5.55
130A
BOLT-FLANGED,10X25
130J1025
$4.89
411
WASHER-PLAIN
411F1200
$3.92
462
WASHER-SPRING,10MM
462K1000
$2.60
482
CIRCLIP-TYPE-E
482L0200
$2.28
482A
CIRCLIP-TYPE-E,8MM
482L8000
$0.67
