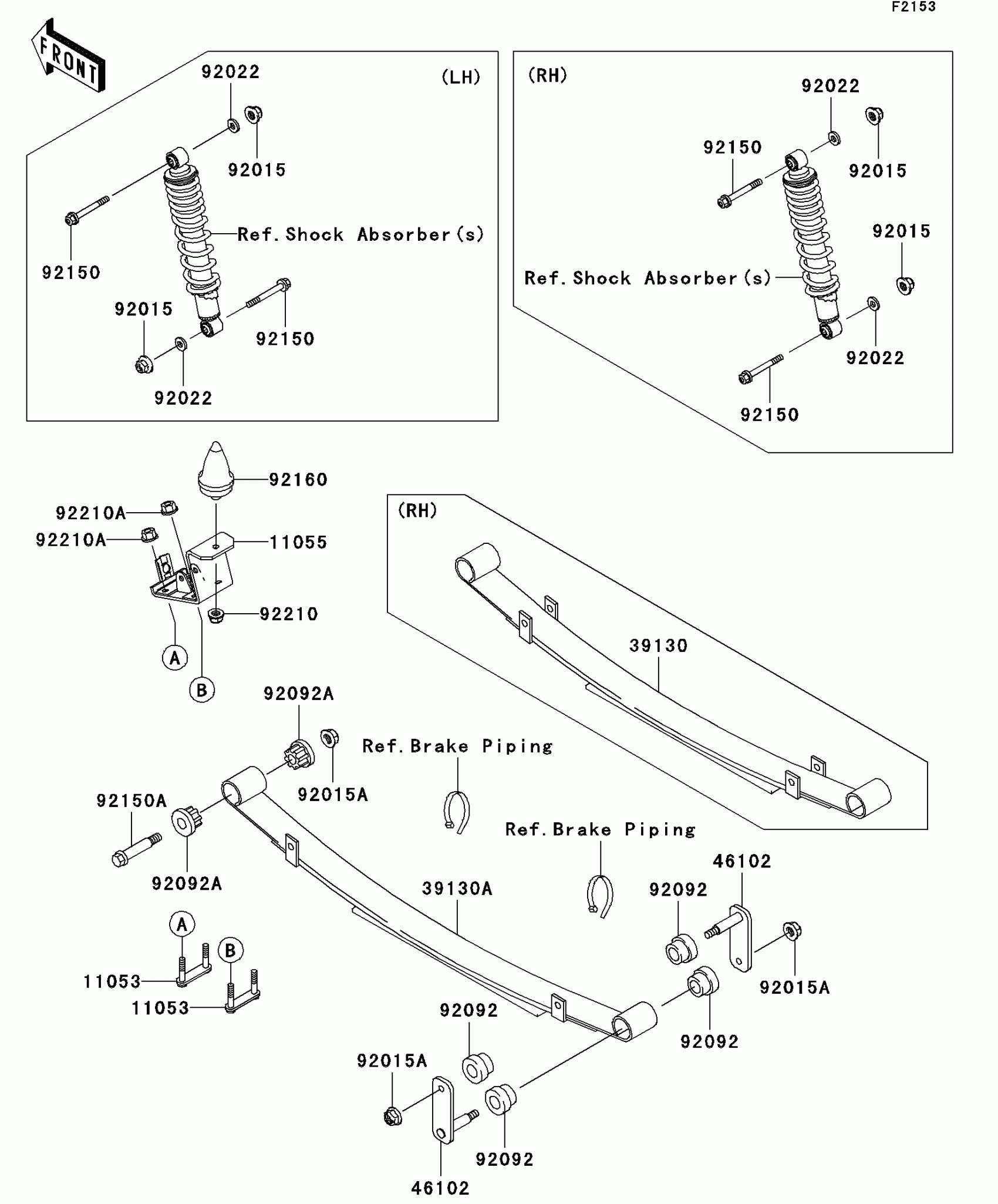

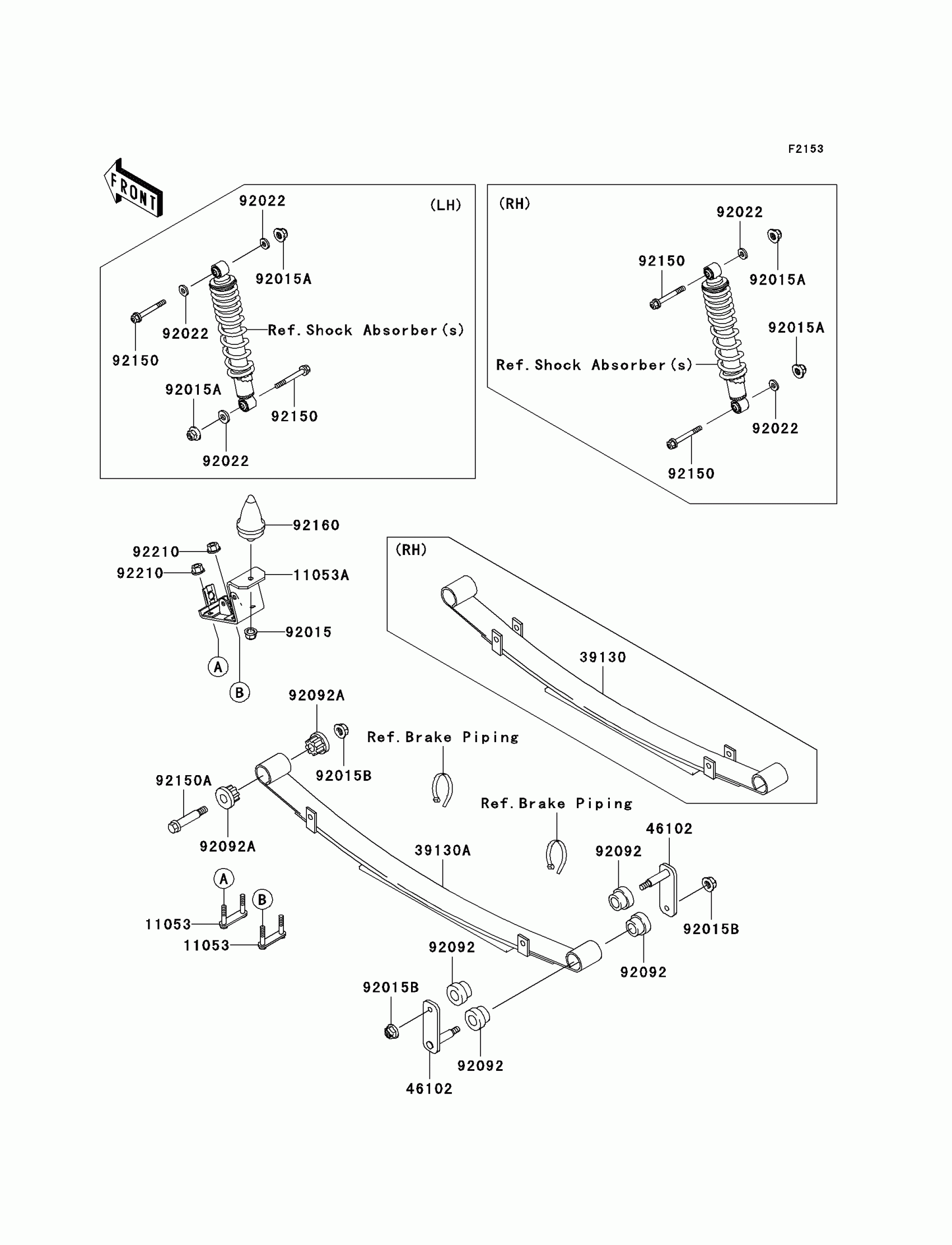

Kawasaki Mule 3010 Trans4x4 Diesel Rear Suspension Diagram

Description

Price

11053

BRACKET,LEAF SPRING

11053-7564

$10.55

11055

BRACKET,LEAF SPRING

11055-7504

$21.26

39130

SPRING-LEAF

39130-1066

$359.33

39130A

SPRING-LEAF,LH

39130-1077

$362.26

46102

ROD,LEAF SPRING,RR

46102-1338

$46.89

92015

NUT,LOCK,10MM

92015-1597

$5.52

92015A

NUT

92015-1706

$7.45

92022

WASHER,11.5X20.5X1.6

92022-1768

$4.78

92092

BUSHING-RUBBER

92092-1083

$7.58

92092A

BUSHING-RUBBER

92092-1084

$24.77

92150

BOLT,FLANGED,10X57

92150-1227

$8.58

92150A

BOLT,12MM

92150-1284

$19.34

92160

DAMPER,BUMP STOPPER

92160-1136

$38.36

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,LOCK,10MM

92210-1204

$4.31
