Rear Hubs/Brakes

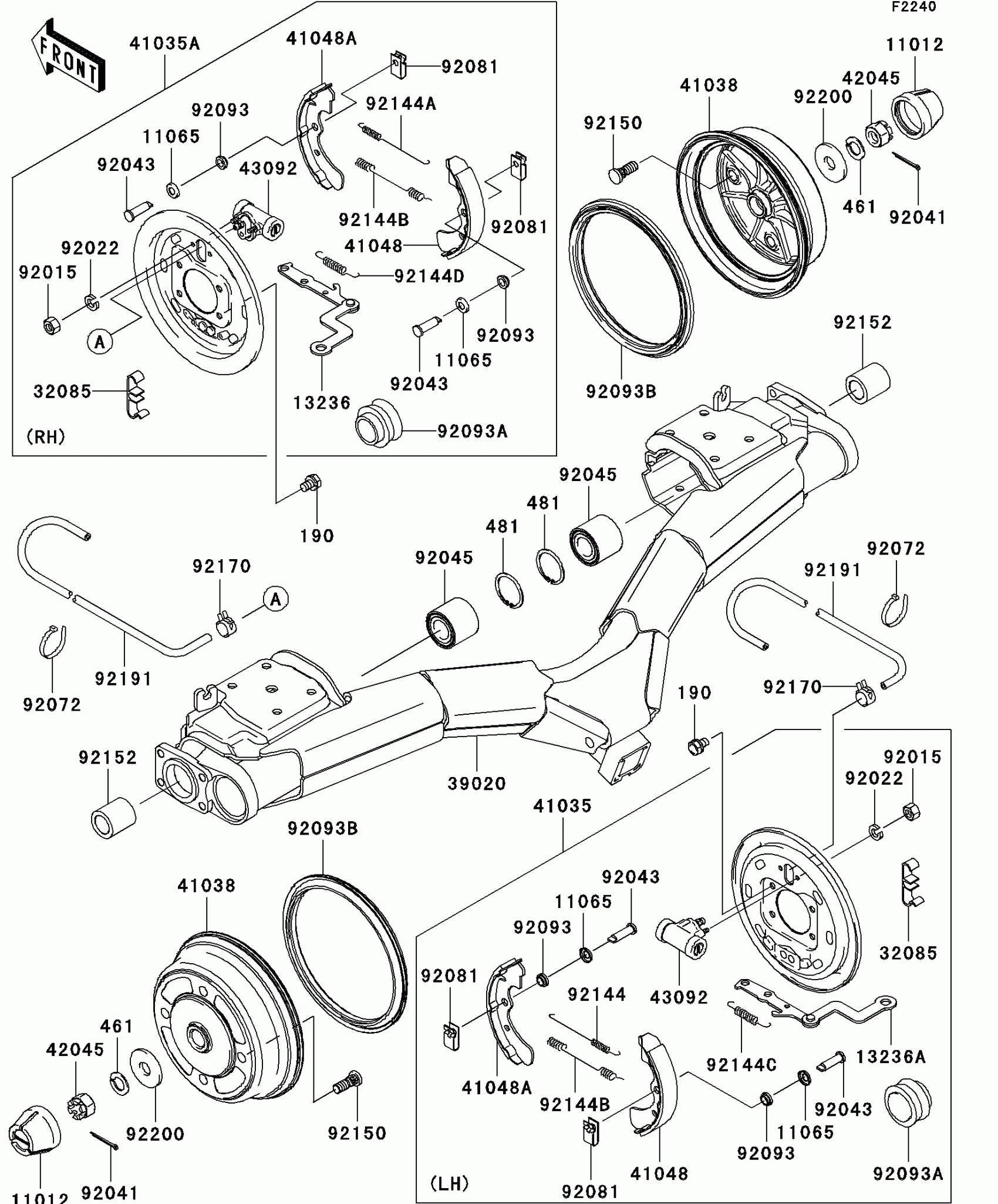

Kawasaki Mule 3010 Trans4x4 Diesel Rear Hubs/Brakes Diagram
#
11012
CAP,WHEEL
11012-1969
$5.65
11065
CAP
11065-1175
$4.87
13236
LEVER-COMP,RR BRAKE PANEL,RH
13236-1355
$35.38
13236A
LEVER-COMP,RR BRAKE PANEL,LH
13236-1356
$34.87
32085
STOPPER,REAR BRAKE LEVER
32085-1298
$11.07
39020
BRACKET-COMP-REAR SUSP
39020-7503
$1,090.45
41035
PANEL-ASSY-BRAKE,RR,LH
41035-7506
$502.19
41035A
PANEL-ASSY-BRAKE,RR,RH
41035-7508
$502.19
41038
DRUM,REAR BRAKE
41038-7502
$262.76
41048
SHOE-BRAKE
41048-7502
$22.70
41048A
SHOE-BRAKE
41048-7503
$22.70
42045
NUT,CASTLE,18MM
42045-018
$9.23
43092
CYLINDER,REAR WHEEL
43092-1053
$90.98
92015
NUT,6MM
92015-1729
$2.78
92022
WASHER,SPRING,6MM
92022-1951
$2.78
92041
COTTER,4.0X35
92041-1053
$3.92
92043
PIN
92043-1636
$4.20
92045
BEARING-BALL,25BWD02CA68
92045-0107
$80.76
92072
BAND,L=123
92072-030
$5.00
92081
SPRING,SHOE CLAMP
92081-1904
$8.03
92093
SEAL
92093-1532
$8.60
92093A
SEAL
92093-1533
$13.63
92093B
SEAL,BS184.8X13.5ZS
92093-1543
$112.98
92144
SPRING,BRAKE
92144-1299
$8.30
92144A
SPRING,BRAKE
92144-1300
$8.30
92144B
SPRING,BRAKE
92144-1301
$8.30
92144C
SPRING,ROD,LH
92144-1302
$8.30
92144D
SPRING,ROD,RH
92144-1303
$7.60
92150
BOLT
92150-1366
$8.05
92152
COLLAR,25.1X38X40.8
92152-1276
$28.89
92170
CLAMP
92170-2042
$1.30
92191
TUBE,4.7X9.5X1100
92191-1525
$7.87
92200
WASHER,18.5X52X4.5
92200-1474
$8.10
190
BOLT-UPSET-WS,10X16
190H1016
$4.15
461
WASHER-SPRING,18MM
461F1800
$2.72
481
CIRCLIP-TYPE-C,52MM
481J5200
$4.96
