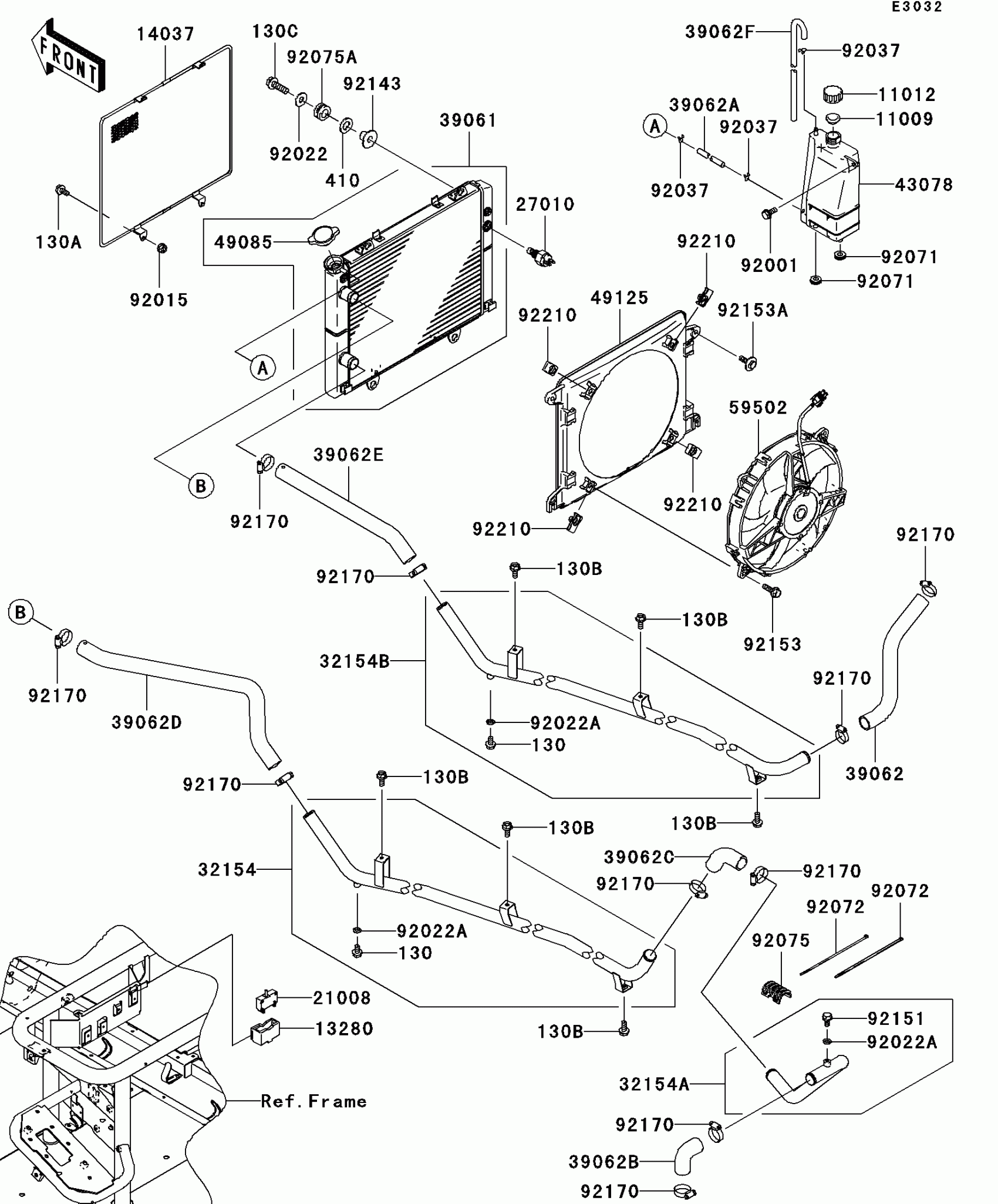

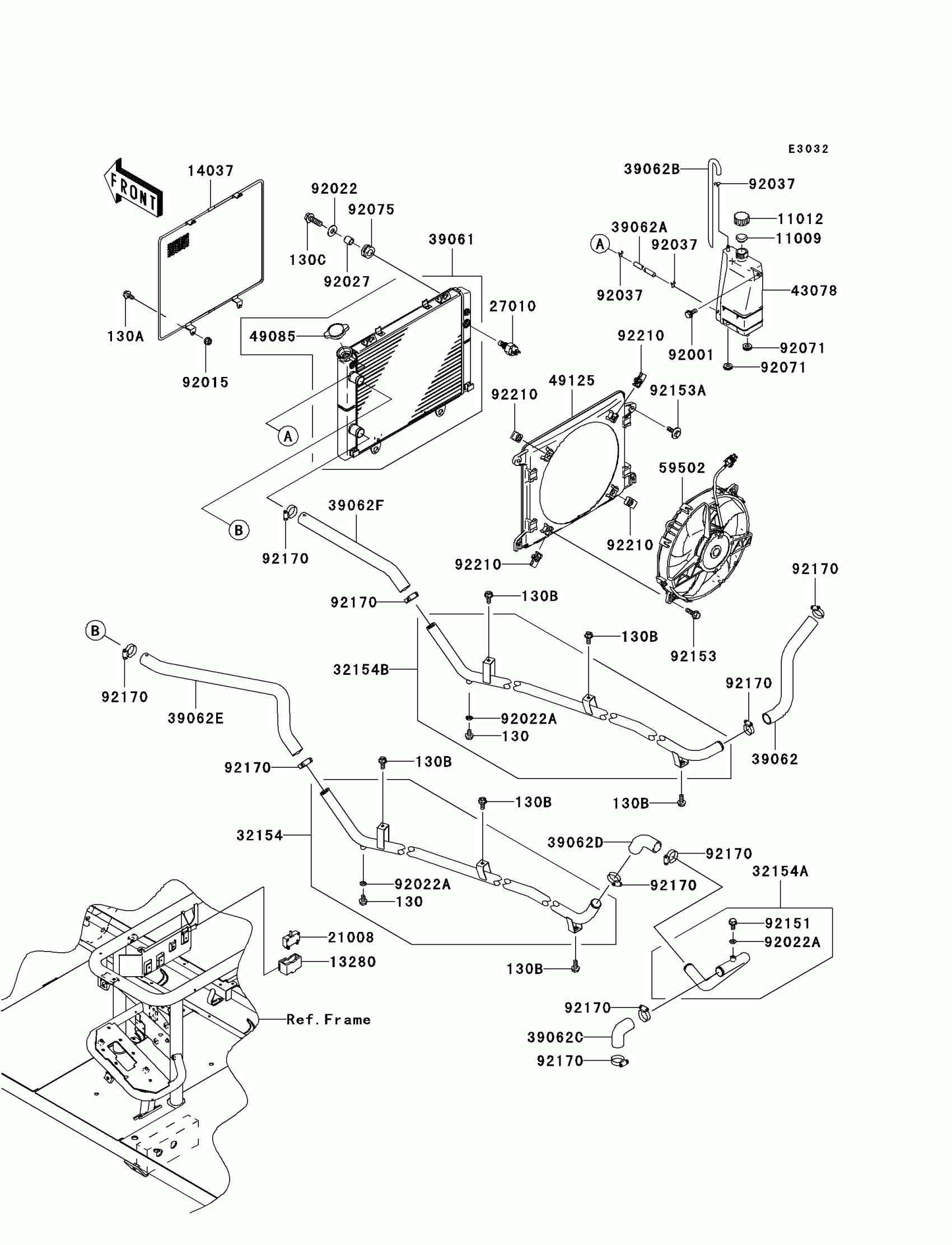

Kawasaki Mule 3010 Trans4x4 Diesel Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN
14037-7506
$104.81
21008
BREAKER,FAN MOTOR
21008-0005
$29.21
27010
SWITCH,FAN
27010-1317
$130.42
32154
PIPE,RH FR
32154-7503
$116.41
32154A
PIPE,RH
32154-7608
$42.08
32154B
PIPE,LH
32154-7610
$126.37
39061
RADIATOR-ASSY
39061-7504
Unavailable
39062
HOSE-COOLING
39062-0032
$23.88
39062A
HOSE-COOLING,5.5X10.5X600
39062-1829
$4.70
39062B
HOSE-COOLING
39062-7503
$8.40
39062C
HOSE-COOLING
39062-7504
$14.84
39062D
HOSE-COOLING
39062-7505
$30.51
39062E
HOSE-COOLING
39062-7506
$26.39
39062F
HOSE-COOLING,DRAIN
39062-7507
$24.47
43078
RESERVOIR
43078-1185
Unavailable
49085
CAP-ASSY-PRESSURE
49085-7501
$19.25
49125
SHROUD
49125-7501
Unavailable
59502
FAN-ASSY
59502-7501
$629.27
92001
BOLT,W/P,6X16
92001-1860
$4.31
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022A
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=188
92072-1239
$1.73
92075
DAMPER,FUEL TANK
92075-1806
$9.28
92075A
DAMPER
92075-294
$4.10
92143
COLLAR
92143-1946
$6.88
92151
BOLT,6X10
92151-1832
Unavailable
92153
BOLT
92153-7505
$2.67
92153A
BOLT
92153-7506
$2.81
92170
CLAMP,COOLING HOSE
92170-1284
$8.20
92210
NUT
92210-1331
$5.53
130
BOLT-FLANGED
130J0610
$2.33
130A
BOLT-FLANGED,6X12
130J0612
$2.19
130B
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130C
BOLT-FLANGED,8X25,BLACK
130J0825
$4.15
410
WASHER-PLAIN-SMALL,12MM,BLACK
410F1200
$4.58
