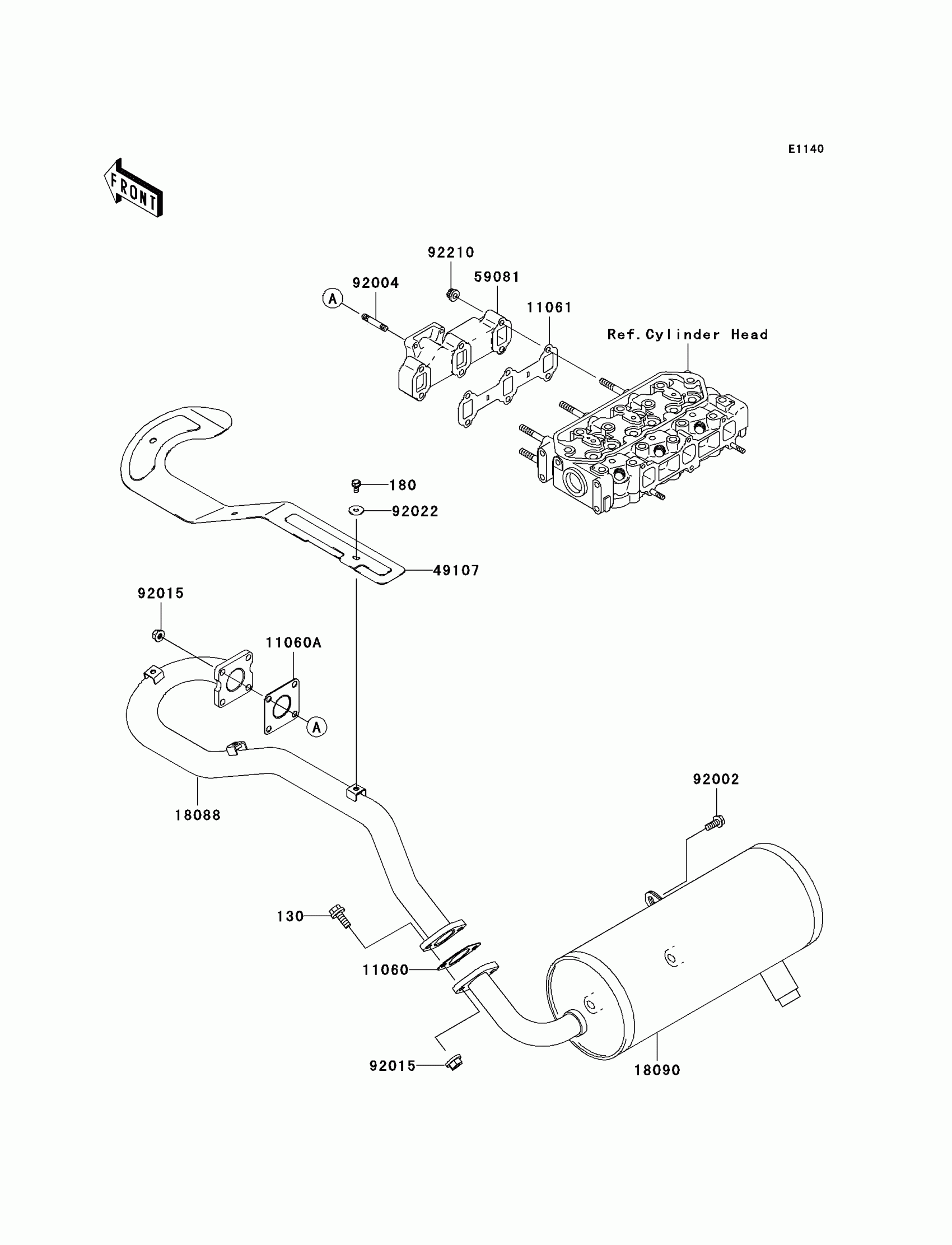

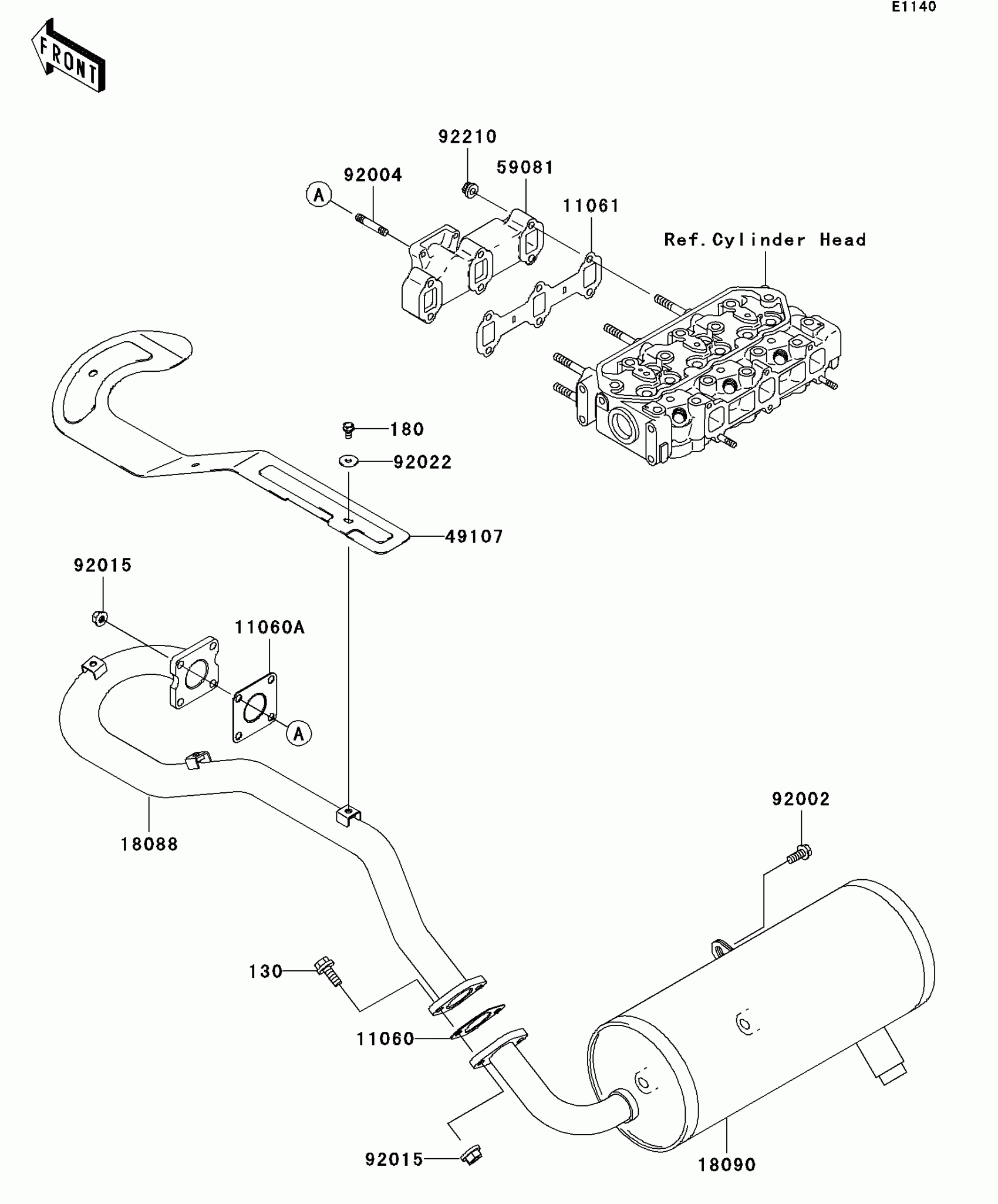

Kawasaki Mule 3010 Trans4x4 Diesel Muffler(s) Diagram

Description

Price

11060

GASKET,MUFFLER

11060-1915

$23.80

11060A

GASKET,EXHAUST PIPE

11060-1916

$12.93

11061

GASKET,EXHAUST MANIFOLD

11061-1101

$19.73

18088

PIPE-EXHAUST

18088-1216

$103.04

18090

BODY-COMP-MUFFLER

18090-1739

$234.44

49107

COVER-EXHAUST PIPE

49107-0004

$31.35

59081

MANIFOLD-EXHAUST

59081-1391

$129.75

92002

BOLT,8X20

92002-1250

$5.65

92004

STUD,8X20

92004-1272

$10.77

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92210

NUT,8MM

92210-1217

$2.58

130

BOLT-FLANGED,8X25,BLACK

130J0825

$4.15

180

BOLT-UPSET-WS

180J0612

$4.02
