Guards/Cab Frame

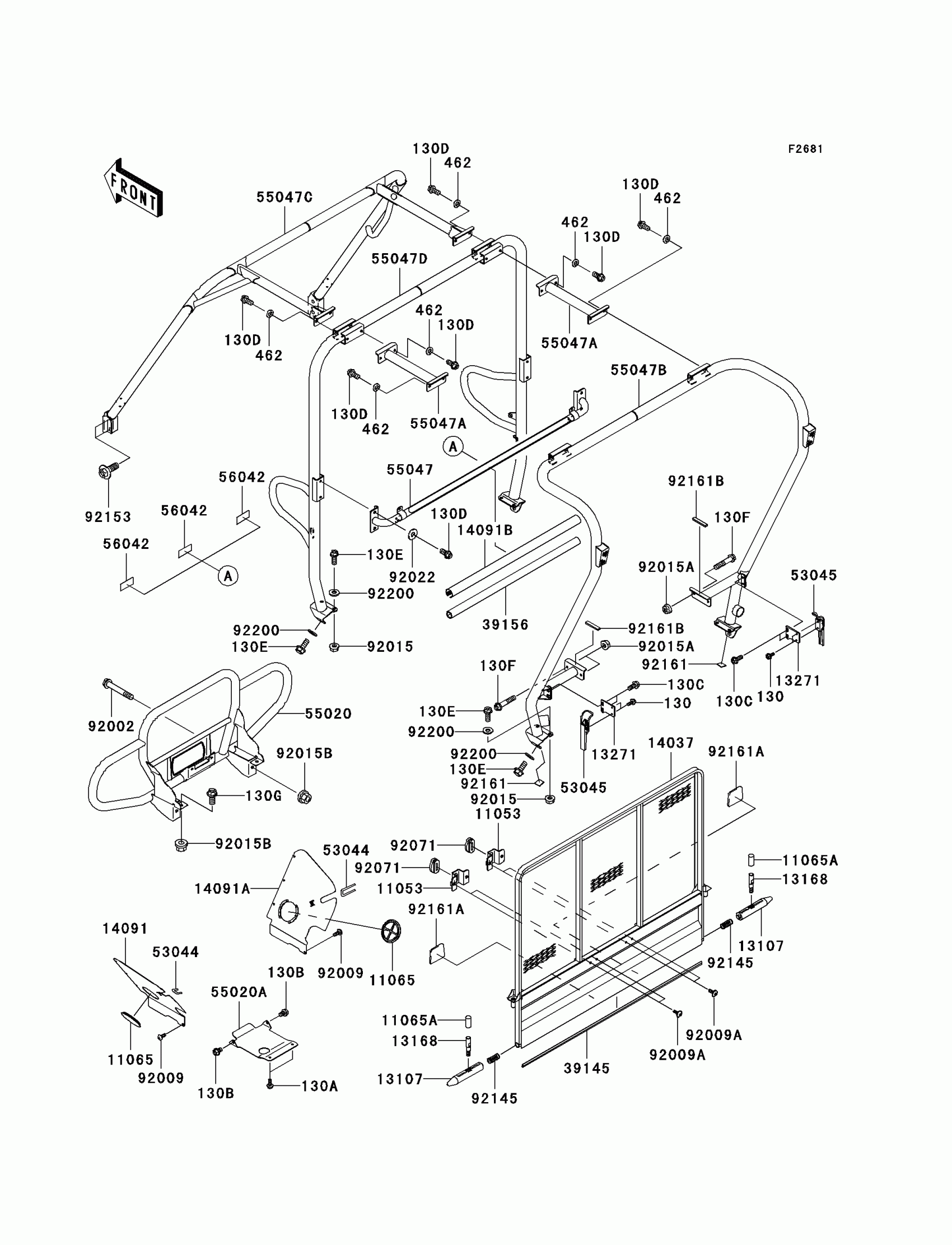

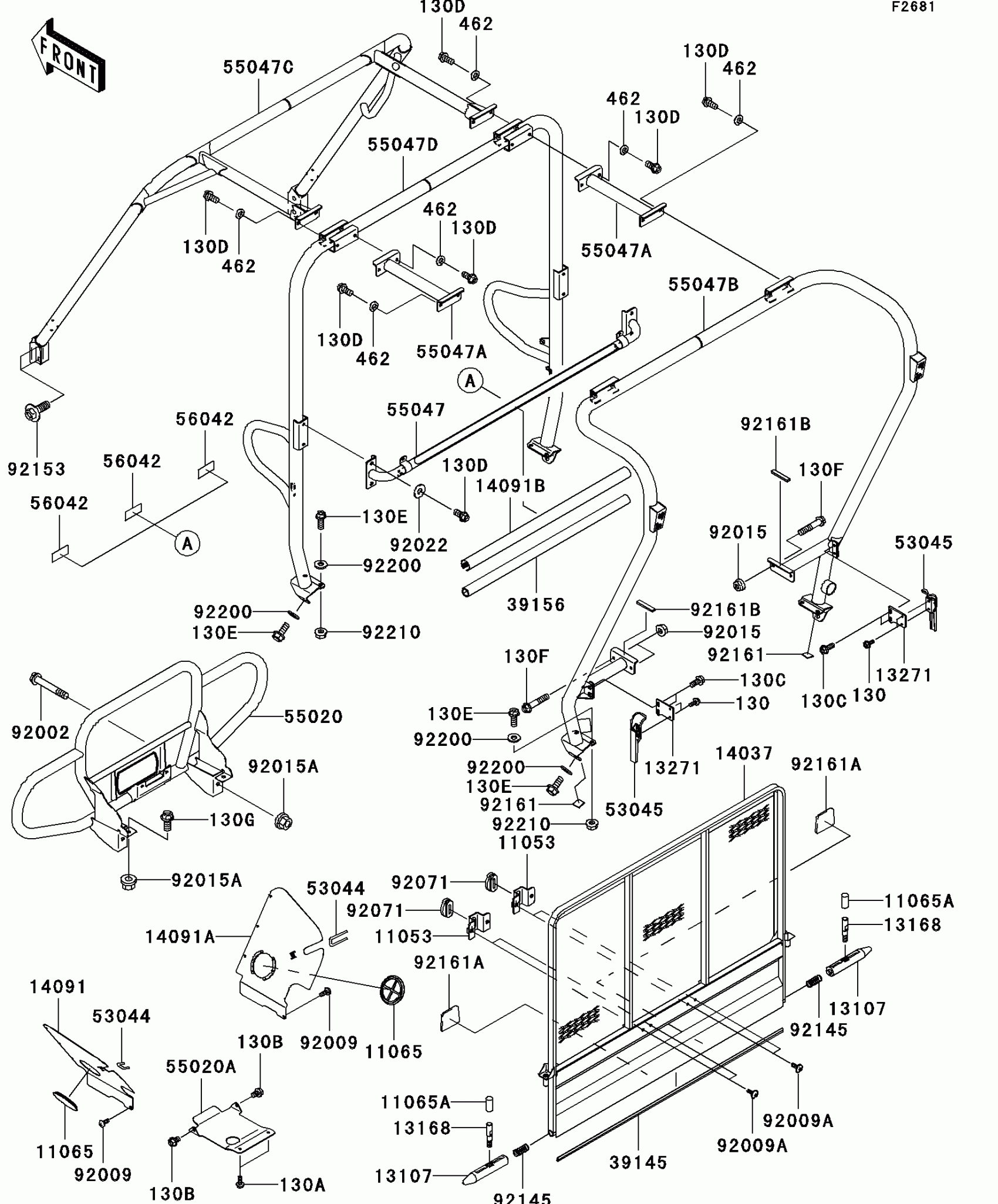

Kawasaki Mule 3010 Trans4x4 Diesel Guards/Cab Frame Diagram
#
11053
BRACKET,SCREEN
11053-7528
$5.99
11065
CAP,F.BLACK
11065-1053-6Z
$8.40
11065A
CAP
11065-7503
$1.69
13107
SHAFT
13107-7501
$10.88
13168
LEVER
13168-7506
$8.17
13271
PLATE,HOOK
13271-7540
$11.77
14037
SCREEN,REAR CAB,T.BLACK
14037-7501-388
$217.27
14091
COVER,FR,LH
14091-7553
$80.58
14091A
COVER,FR,RH
14091-7554
$84.40
14091B
COVER
14091-7559
$32.35
39145
TRIM-SEAL,L=1157
39145-7502
$29.08
39156
PAD
39156-7506
$11.59
53044
TRIM
53044-1137
$10.65
53045
HOOK-ASSY
53045-7501
$23.27
55020
GUARD,FR,W.BLACK
55020-7505-388
$635.02
55020A
GUARD,GEAR CASE
55020-7506
$30.42
55047
BAR-COMP,FRONT SEAT,T.BLACK
55047-7503-388
$71.19
55047A
BAR-COMP,TOP,T.BLACK
55047-7504-388
$50.30
55047B
BAR-COMP,RR,W.BLACK
55047-7509-388
$737.38
55047C
BAR-COMP,FR,T.BLACK
55047-7510-388
$472.03
55047D
BAR-COMP,CNT,T.BLACK
55047-7512-388
Unavailable
56042
ADHESIVE
56042-7502
$1.45
92002
BOLT,FLANGED,12X75
92002-1661
$13.75
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X14
92009-1662
$3.92
92015
NUT,FLANGED,10MM
92015-1366
$5.00
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92022
WASHER,10.5X26X2.3,BLACK
92022-1396
$3.21
92071
GROMMET
92071-7505
$2.26
92145
SPRING,TENSIONER
92145-1215
$4.63
92153
BOLT,FLANGED,14X36
92153-1282
$7.63
92161
DAMPER
92161-0020
$5.00
92161A
DAMPER
92161-0061
$2.41
92161B
DAMPER
92161-7514
$1.45
92200
WASHER,10.2X23X2.5
92200-7506
$3.90
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
130
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130A
BOLT-FLANGED,6X16,BLACK
130J0616
$1.92
130B
BOLT-FLANGED,8X12
130J0812
$0.67
130C
BOLT-FLANGED,8X20
130J0820
$0.83
130D
BOLT-FLANGED,10X20
130J1020
$5.55
130E
BOLT-FLANGED,10X25
130J1025
$4.89
130F
BOLT-FLANGED,10X50
130J1050
$3.43
130G
BOLT-FLANGED
130P1225
$7.20
462
WASHER-SPRING,10MM
462K1000
$2.60
