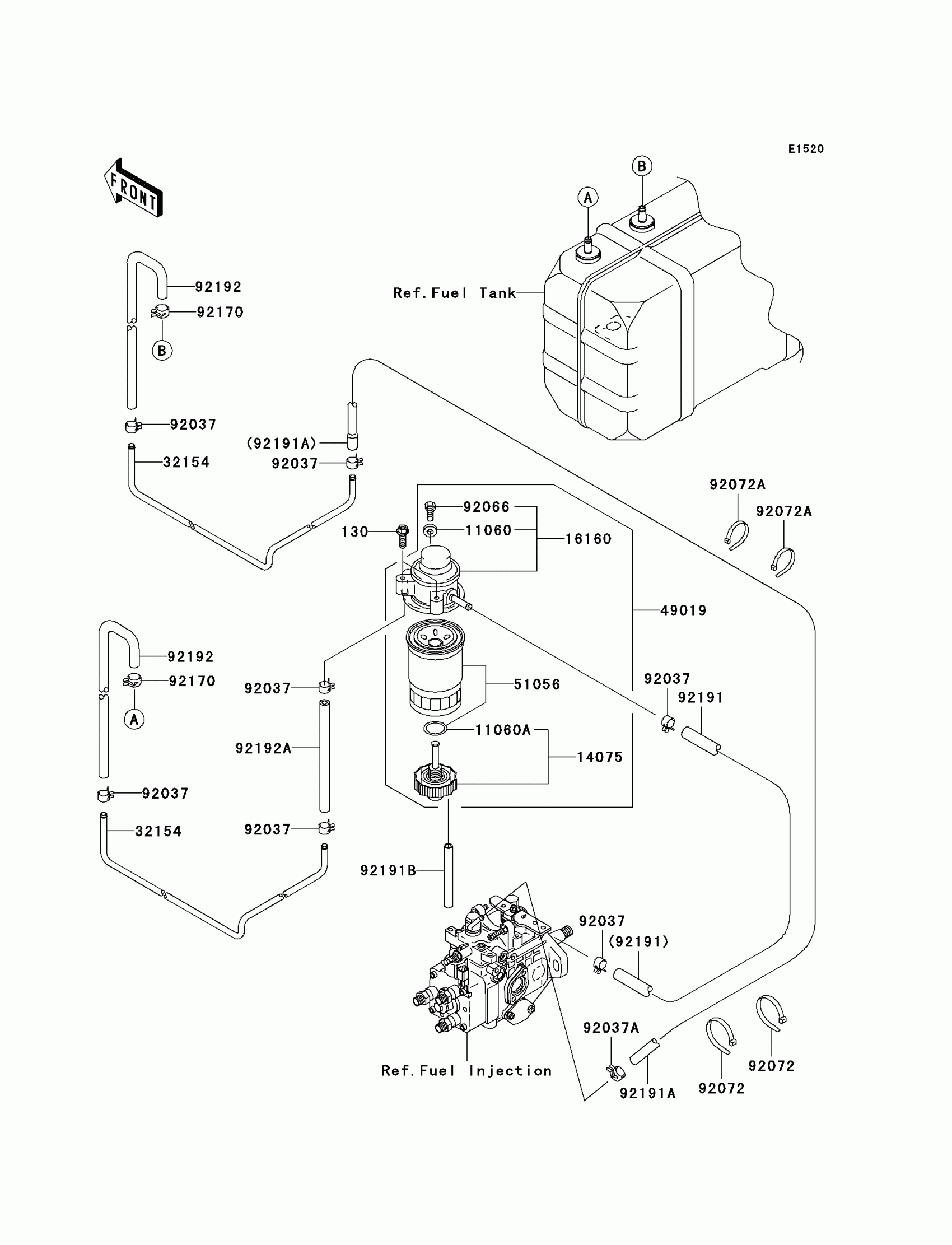

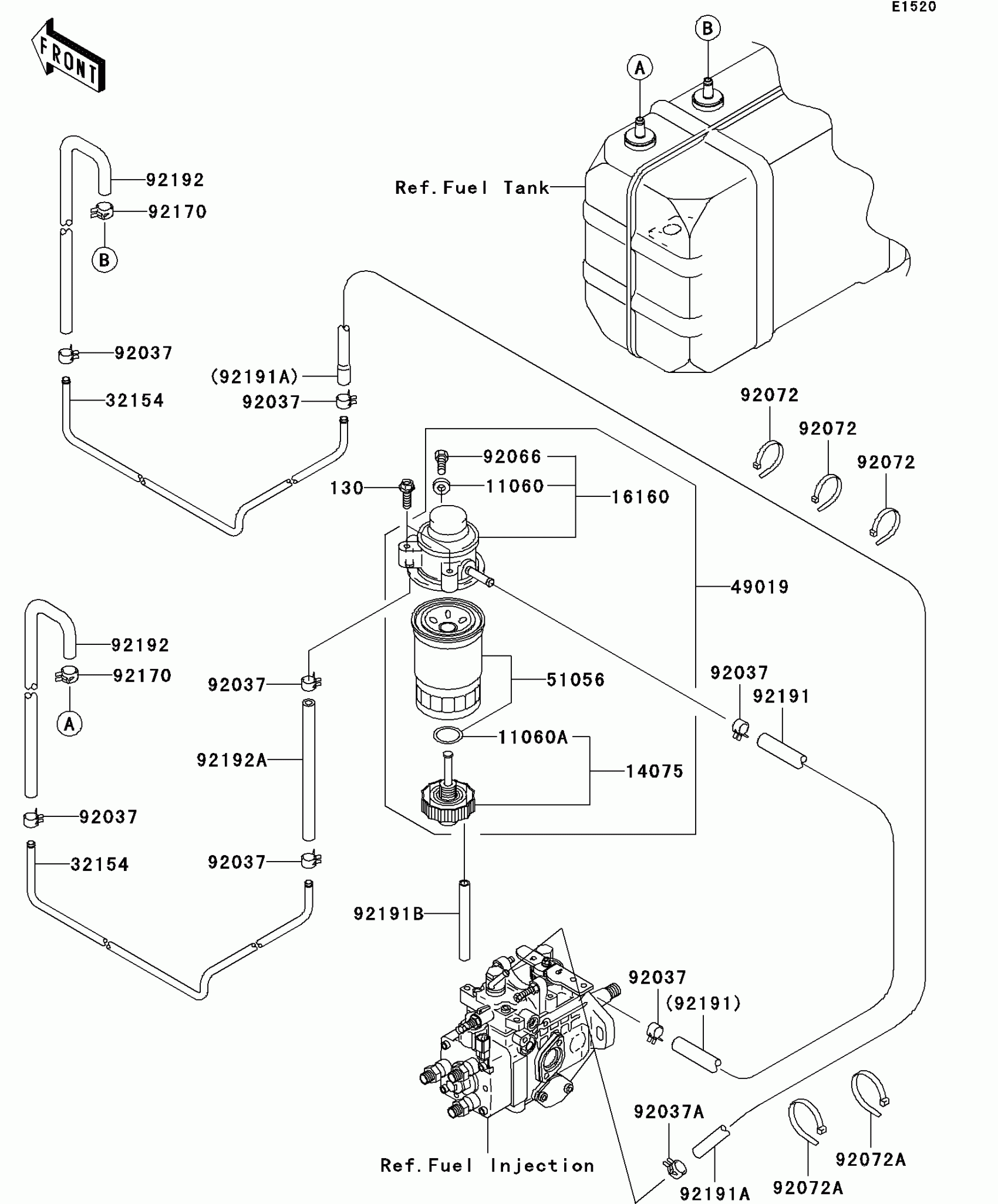

Kawasaki Mule 3010 Trans4x4 Diesel Fuel Pump Diagram

Description

Price

11060

GASKET,AIR VENT

11060-1978

$3.32

11060A

GASKET

11060-1979

$3.88

14075

CAP-ASSY,DRAIN

14075-1109

$81.98

16160

BODY,FUEL FILTER

16160-1328

$172.42

32154

PIPE,FUEL

32154-7607

$83.64

49019

FILTER-FUEL

49019-1094

$211.41

51056

ELEMENT-FUEL FILTER

51056-1051

$90.17

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,TUBE

92037-1505

$4.76

92066

PLUG,AIR VENT

92066-1538

$2.43

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=368.3

92072-3872

$1.59

92170

CLAMP

92170-1938

$3.74

92191

TUBE,INJECTION INLET

92191-1437

$56.17

92191A

TUBE,INJECTION OUTLET

92191-1438

$73.84

92191B

TUBE,DRAIN,8X11X100

92191-1565

$3.19

92192

TUBE,FUEL TANK-PIPE

92192-7508

$14.38

92192A

TUBE,PIPE-FUEL FILTER

92192-7509

$5.54

130

BOLT-FLANGED,8X25,BLACK

130J0825

$4.15
