Frame Fittings

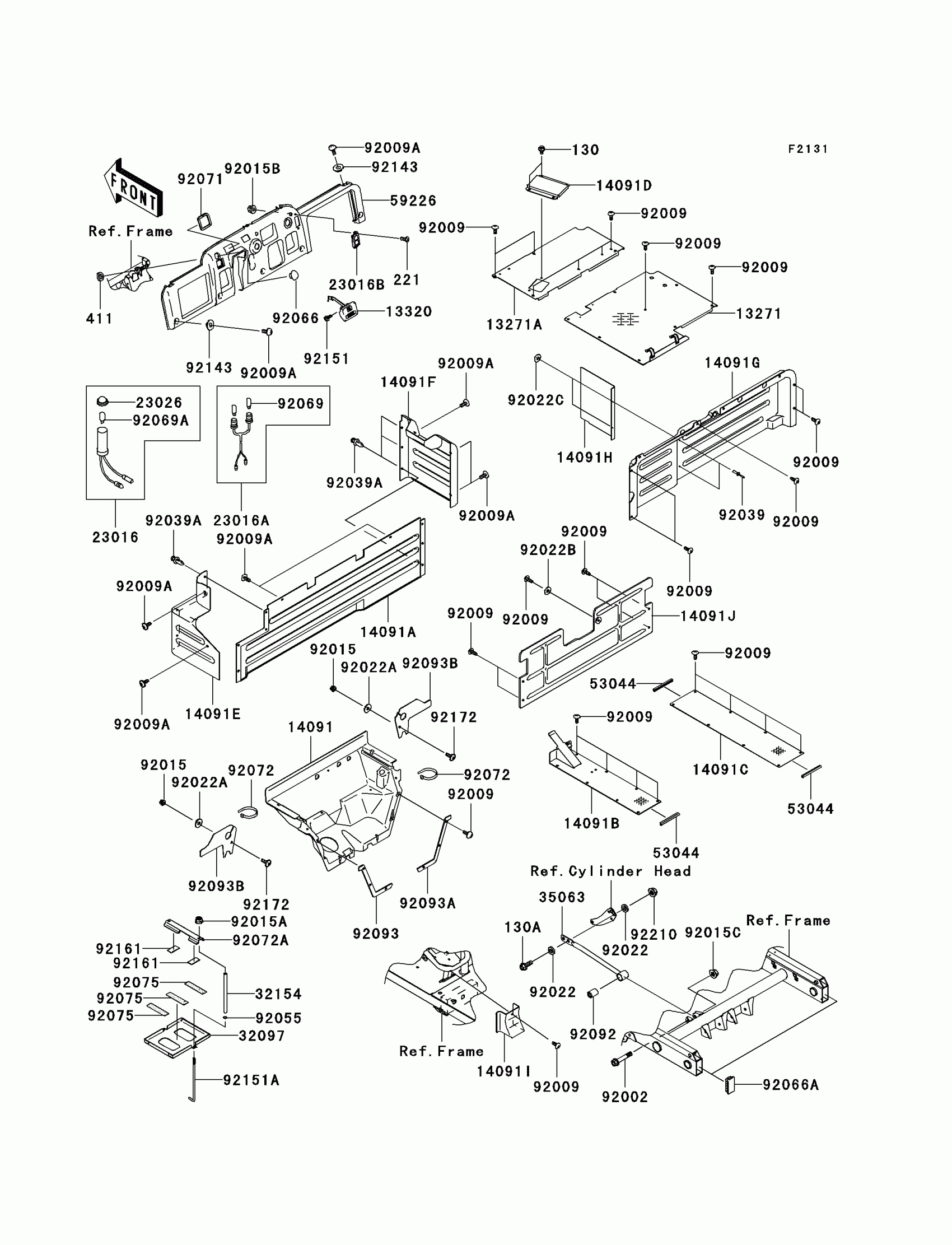

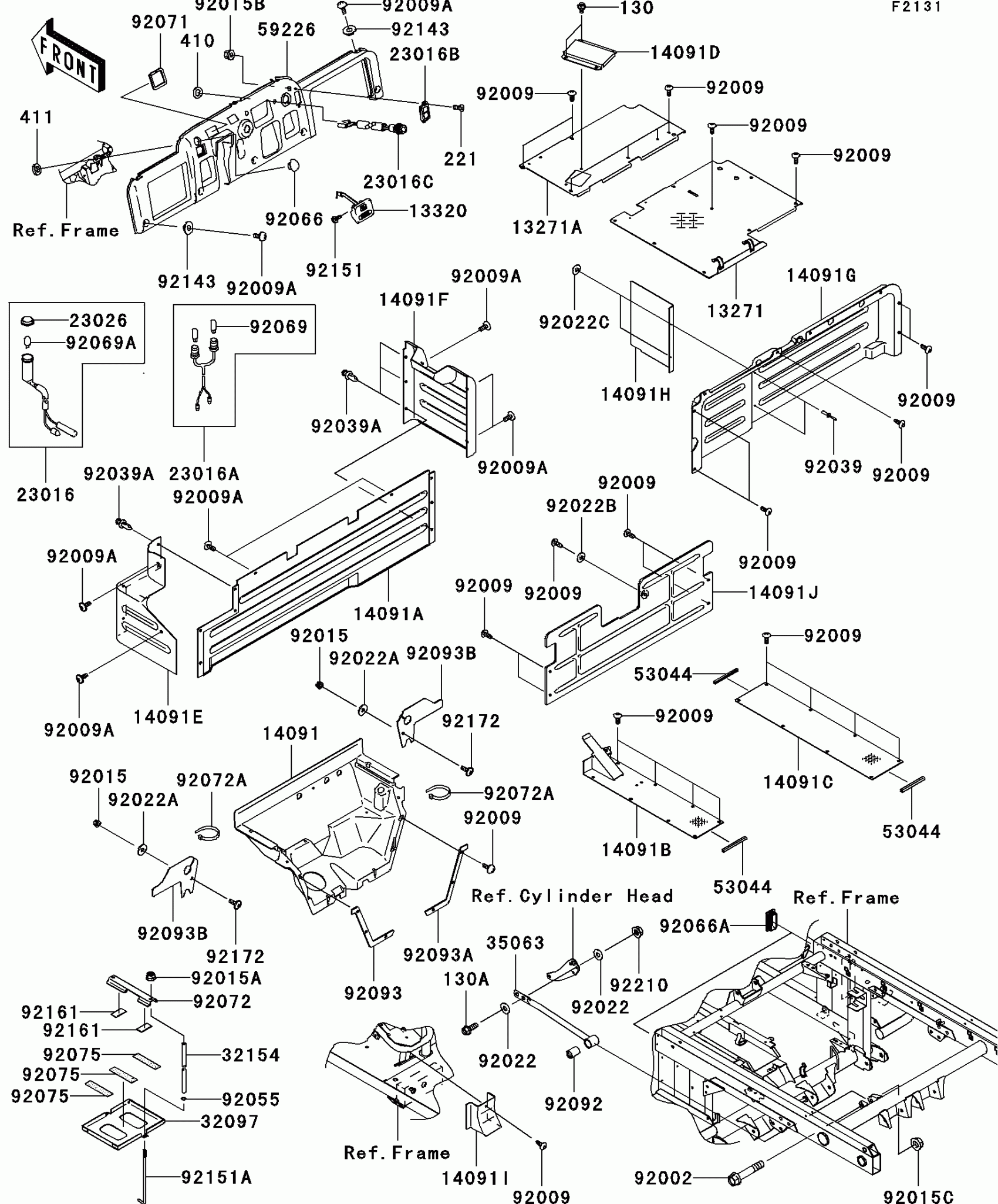

Kawasaki Mule 3010 Trans4x4 Diesel Frame Fittings Diagram
#
13271
PLATE,FLOOR,RH
13271-7602
$144.75
13271A
PLATE,FLOOR,RH
13271-7606
$81.72
13320
LEVER-ASSY
13320-1016
$118.91
14091
COVER,FLOOR
14091-1378
$98.40
14091A
COVER,FRONT SEAT,CNT
14091-7531
$113.24
14091B
COVER,FLOOR,CNT,FR
14091-7534
$88.76
14091C
COVER,FLOOR,CNT,RR
14091-7535
$82.33
14091D
COVER
14091-7536
$20.39
14091E
COVER,FRONT SEAT,LH
14091-7541
$34.21
14091F
COVER,FRONT SEAT,RH
14091-7542
$49.47
14091G
COVER,FRONT SEAT,RR,LWR
14091-7549
$140.62
14091H
COVER,FUEL TANK
14091-7550
$23.24
14091I
COVER,PARKING CABLE
14091-7551
$13.47
14091J
COVER,REAR SEAT,LWR
14091-7558
$103.12
23016
LAMP-ASSY,TEMP
23016-1128
$54.60
23016A
LAMP-ASSY,INDICATOR
23016-1188
$51.85
23016B
LAMP-ASSY
23016-1189
Unavailable
23016C
LAMP-ASSY,LED
23016-7501
Unavailable
23026
LENS,TEMP LAMP
23026-1157
$4.33
32097
CASE-BATTERY
32097-1200
$76.48
32154
PIPE,12.7X15.18X199.5
32154-7613
$30.89
35063
STAY
35063-1107
$61.65
53044
TRIM,L=111
53044-7502
$7.68
59226
PANEL-CONTROL,GRAY
59226-7503-284
$140.98
92002
BOLT,ROD,12MM
92002-1757
$12.71
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92015B
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92015C
NUT
92015-1706
$7.45
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022A
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92022B
WASHER,7X18X1.2
92022-1545
$1.03
92022C
WASHER,4.3X12.5X1
92022-1949
$3.60
92039
RIVET
92039-1150
$3.92
92039A
RIVET
92039-1229
$1.19
92055
RING-O
92055-7501
$1.10
92066
PLUG
92066-1485
$2.44
92066A
PLUG
92066-7505
$4.51
92069
BULB,12V 3W,T7
92069-1020
$6.52
92069A
BULB,12V 1.7W,T10
92069-1059
$4.96
92071
GROMMET
92071-7504
$4.11
92072
BAND,BATTERY
92072-1441
$12.30
92072A
BAND,L=368.3
92072-3872
$1.59
92075
DAMPER
92075-1829
$7.69
92092
BUSHING-RUBBER
92092-005
$14.10
92093
SEAL,FRONT FENDER,LH
92093-1293
$9.64
92093A
SEAL,FRONT FENDER,RH
92093-1294
$10.00
92093B
SEAL,LOWER COVER
92093-1295
$22.57
92143
COLLAR
92143-1087
$4.31
92151
BOLT,FLANGED,5X12
92151-1305
$1.59
92151A
BOLT
92151-1728
$7.98
92161
DAMPER
92161-0032
$3.90
92172
SCREW,6X18
92172-0002
$2.80
92210
NUT,FLANGED,LOCK,8MM
92210-0005
$4.67
130
BOLT-FLANGED
130J0610
$2.33
130A
BOLT-FLANGED,8X22
130J0822
$2.19
221
SCREW-CSK-CROS
221C0616
Unavailable
410
WASHER-PLAIN-SMALL,14MM
410B1400
$2.01
411
WASHER
411F1000
$3.82
