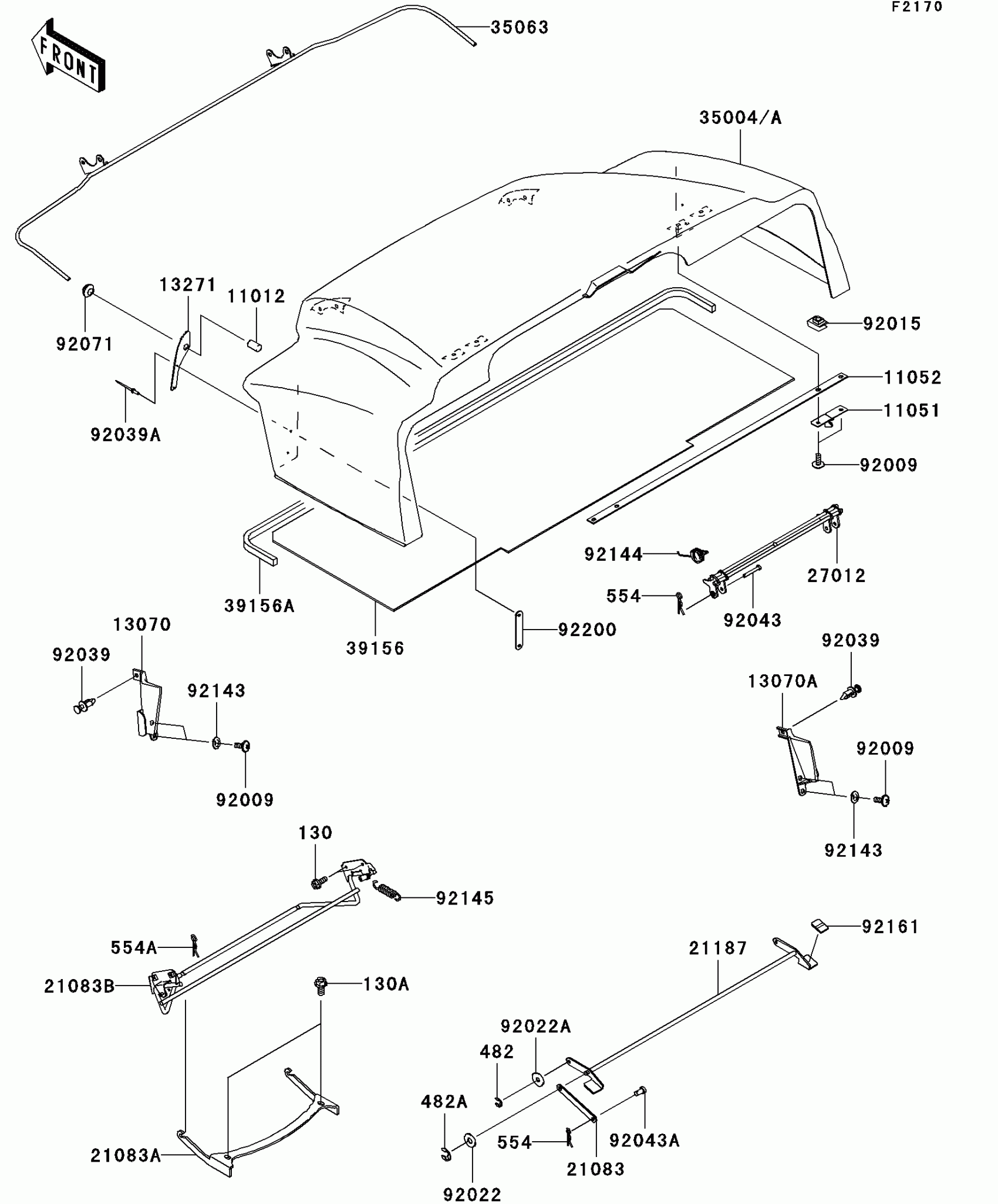

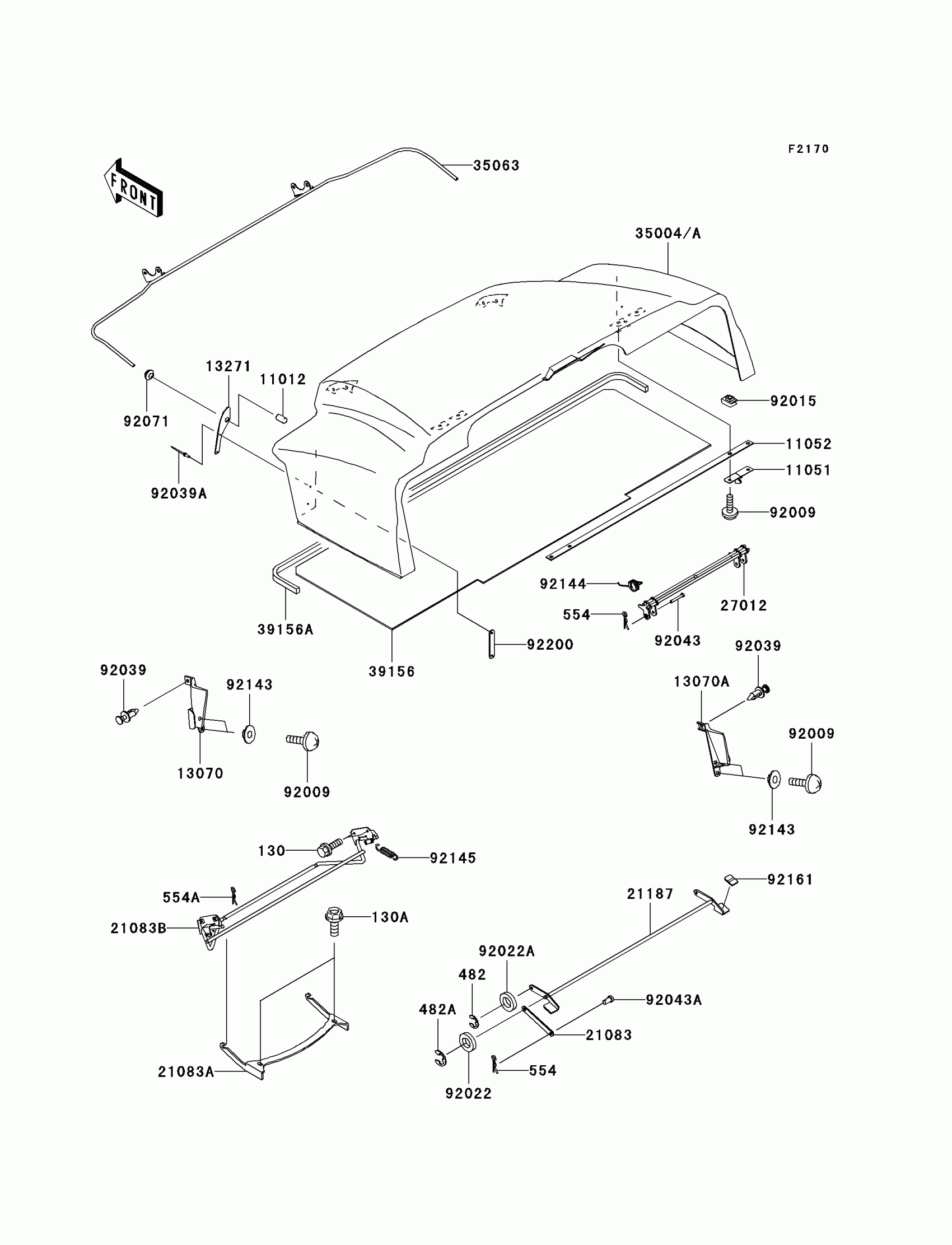

Kawasaki Mule 3010 Trans4x4 Diesel Fenders Diagram
#
Description
Price
11012
CAP
11012-1985
Unavailable
11051
BRACKET
11051-1756
$6.31
11052
BRACKET
11052-1369
$15.11
13070
GUIDE,LH
13070-1367
$28.39
13070A
GUIDE,RH
13070-1368
$28.39
13271
PLATE,RR
13271-1800
$5.71
21083
ARM
21083-1146
$2.63
21083A
ARM
21083-1163
$43.54
21083B
ARM
21083-1172
$122.25
21187
ARM-ASSY
21187-1085
$42.43
27012
HOOK
27012-1608
$72.78
35004
FENDER-FRONT,A.RED
35004-0007-260
$128.90
35004A
FENDER-FRONT,W.GREEN
35004-0007-286
$128.90
35063
STAY,FR FENDER
35063-1203
$56.33
39156
PAD,FRONT FENDER
39156-0014
$142.60
39156A
PAD
39156-1685
$18.63
92009
SCREW,6X16
92009-1621
Unavailable
92015
NUT,CLAMP,6MM
92015-1678
$5.52
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
Unavailable
92022A
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92039
RIVET
92039-1229
$1.19
92039A
RIVET
92039-1244
$1.94
92043
PIN,6X39
92043-1625
$2.48
92043A
PIN,6X9
92043-1626
$2.26
92071
GROMMET,10MM
92071-019
$3.89
92143
COLLAR
92143-1087
$4.31
92144
SPRING,SEAT HOOK
92144-1174
$6.82
92145
SPRING
92145-1335
$6.34
92161
DAMPER
92161-1197
$5.15
92200
WASHER
92200-1592
$3.69
130
BOLT-FLANGED,6X16,BLACK
130J0616
$1.92
130A
BOLT-FLANGED,8X16
130J0816
$1.66
482
CIRCLIP-TYPE-E,5MM
482L5000
$1.34
482A
CIRCLIP-TYPE-E
482L7000
$3.92
554
PIN,SNAP
554A0600
$0.93
554A
PIN-SNAP,8MM
554A0800
$1.26
