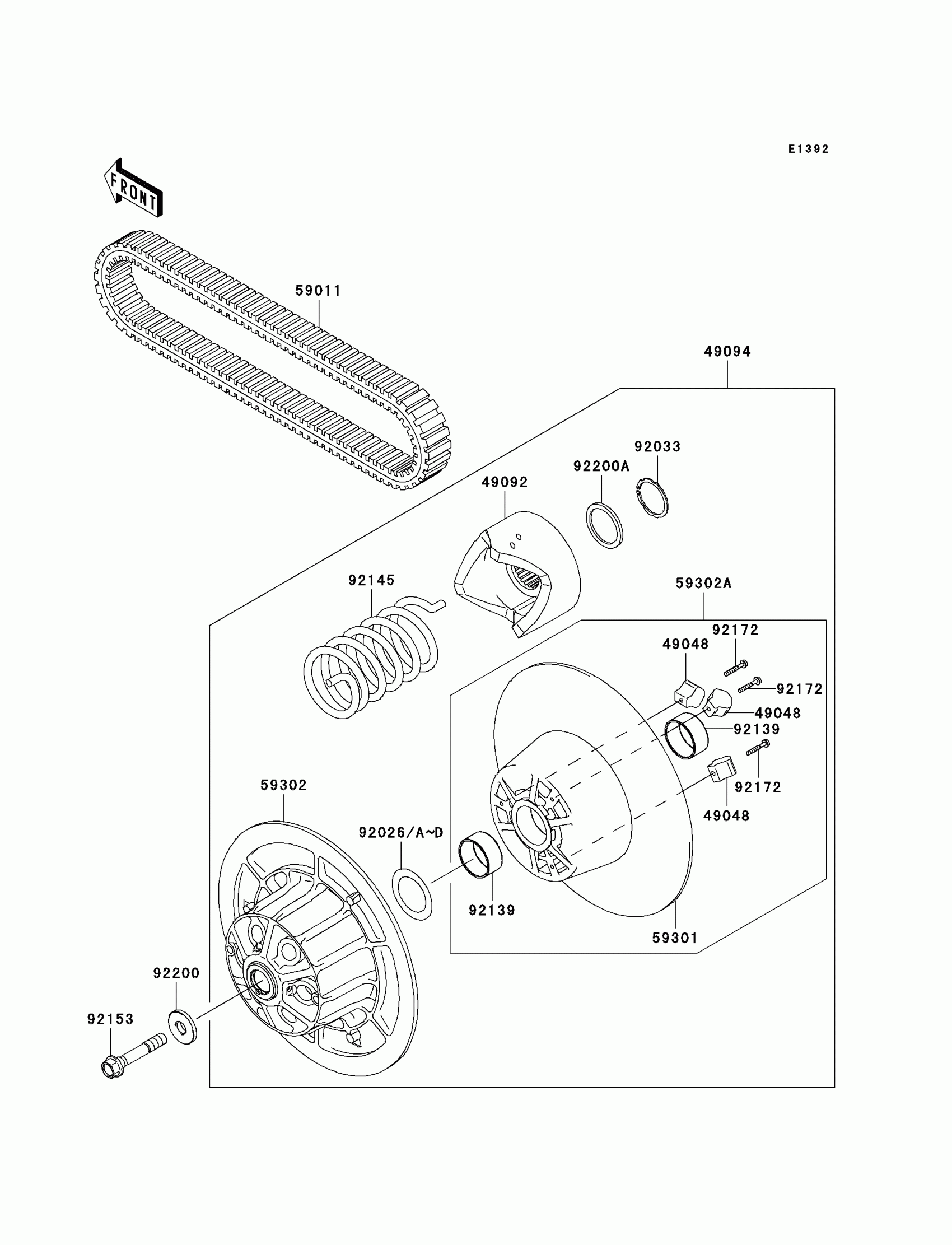

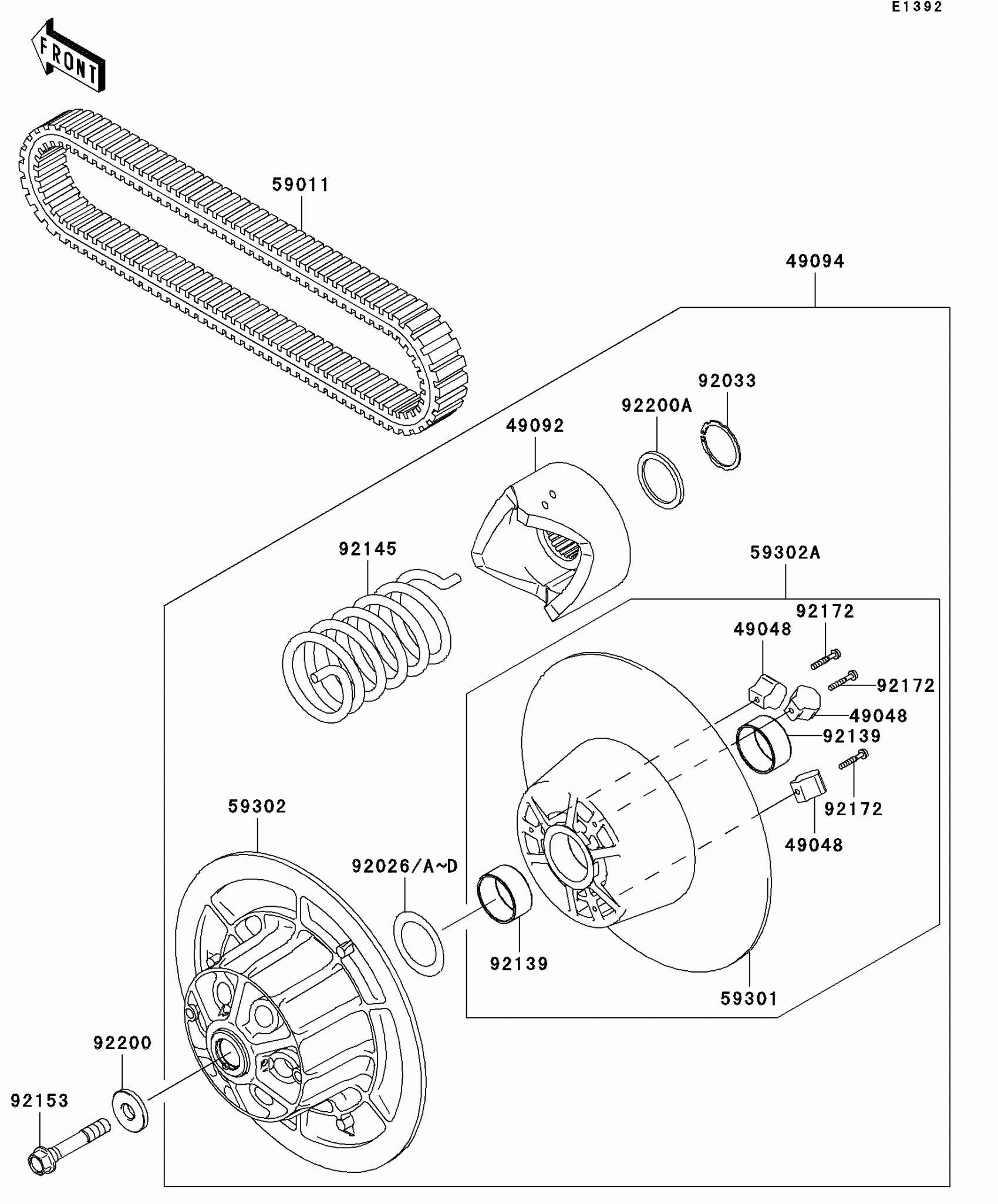

Kawasaki Mule 3010 Trans4x4 Diesel Driven Converter/Drive Belt Diagram

Description

Price

49048

SHOE

49048-1097

$6.07

49092

RAMP

49092-1069

$65.60

49094

CONVERTER-ASSY-DRIVEN

49094-0034

Unavailable

59011

BELT

59011-1087

$257.28

59301

SHEAVE-MOVABLE

59301-1072

$245.84

59302

SHEAVE-COMP

59302-0024

Unavailable

59302A

SHEAVE-COMP,MOVABLE

59302-1104

$349.63

92026

SPACER,40.5X58X0.3

92026-0036

Unavailable

92026A

SPACER,40.5X58X1.0

92026-1625

$8.74

92026B

UNAVAILABLE IN PRICE BOOK

92026-1626

Unavailable

92026C

SPACER,40.5X58X1.4

92026-1627

Unavailable

92026D

SPACER,40.5X58X0.8

92026-1628

Unavailable

92033

RING-SNAP

92033-1317

$6.12

92139

BUSHING

92139-1078

$12.41

92145

SPRING,DRIVEN CONVERTER

92145-0047

$39.63

92153

BOLT,12X70

92153-0509

$8.74

92172

SCREW,4X25

92172-0060

$1.96

92200

WASHER

92200-0069

$14.02

92200A

WASHER,40X46.4X2.5

92200-1645

$13.55
