Crankshaft/Piston(s)

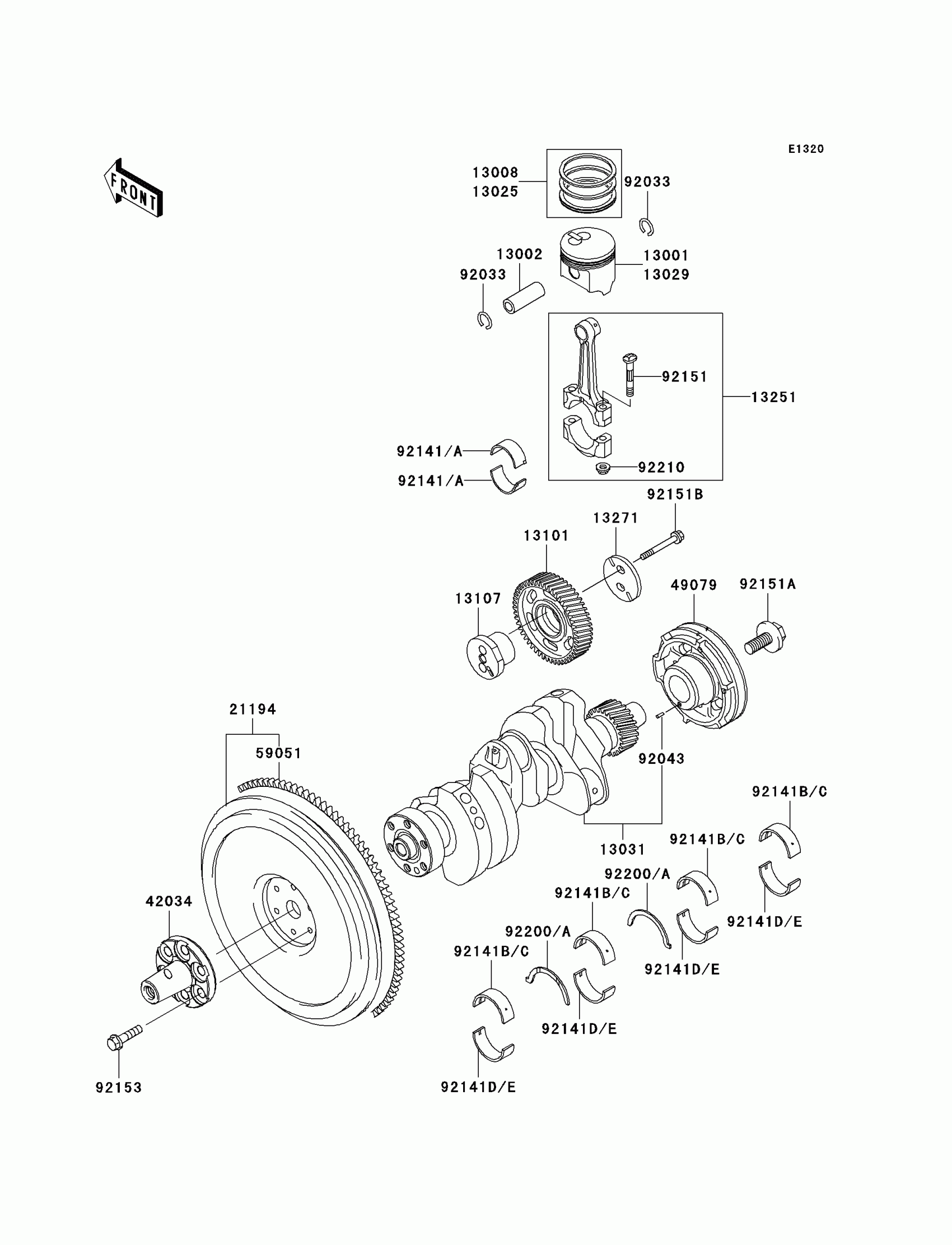

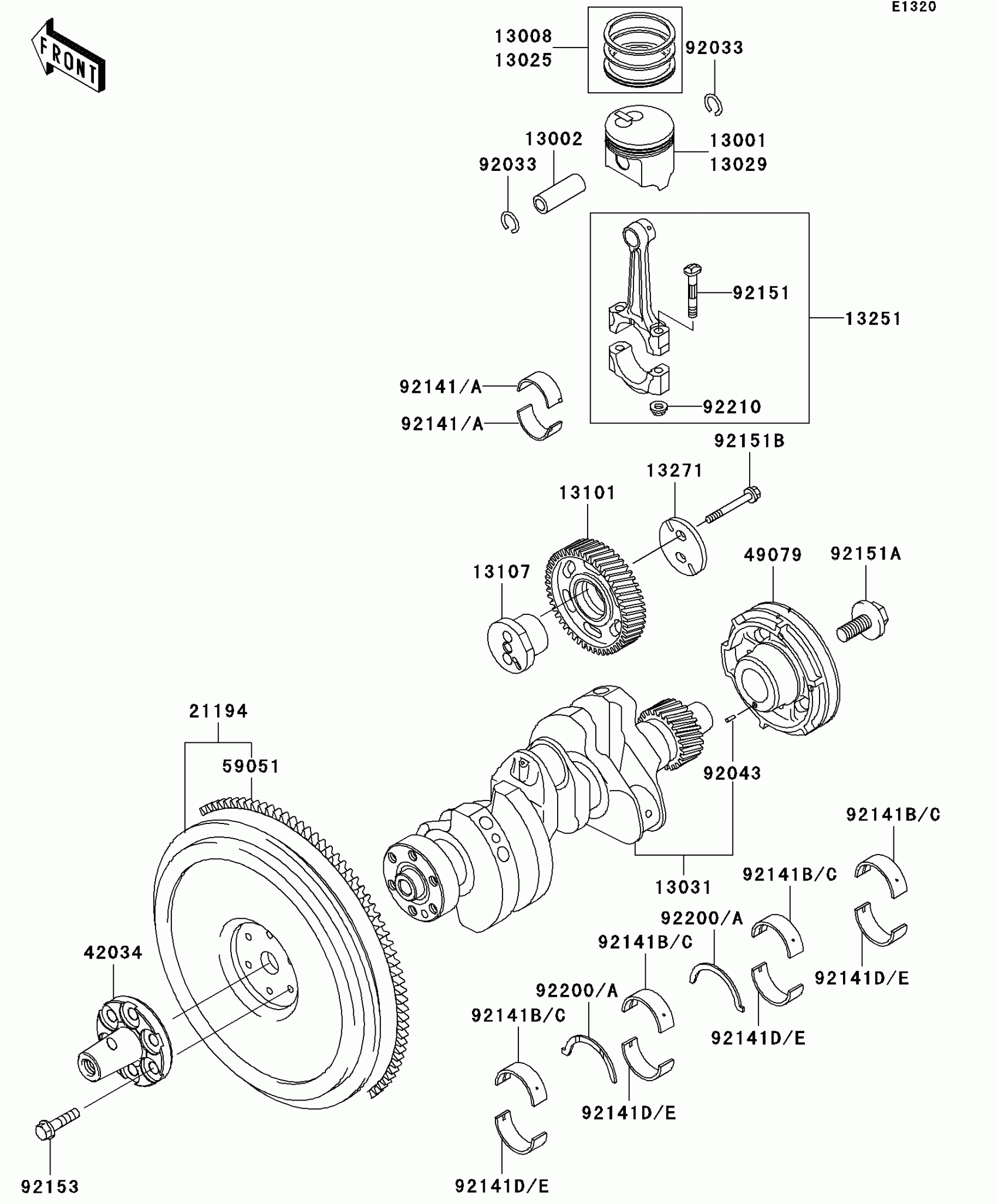

Kawasaki Mule 3010 Trans4x4 Diesel Crankshaft/Piston(s) Diagram
#
Description
Price
13001
PISTON-ENGINE,STD
13001-1571
$99.30
13002
PIN-PISTON
13002-1118
$17.60
13008
RING-SET-PISTON,STD
13008-1197
$79.01
13025
RING-SET-PISTON L,O/S 0.25
13025-1154
Unavailable
13029
PISTON-ENGINE L,O/S 0.25
13029-1279
Unavailable
13031
CRANKSHAFT-COMP
13031-1497
$1,312.17
13101
GEAR-ASSY,IDLE
13101-1292
$162.98
13107
SHAFT,IDLE GEAR
13107-1431
$81.22
13251
ROD-ASSY-CONNECTING
13251-0024
$158.10
13271
PLATE
13271-1362
$11.25
21194
FLYWHEEL-COMP
21194-1055
$346.42
42034
COUPLING
42034-1197
$230.77
49079
PULLEY-BELT
49079-1061
$82.08
59051
GEAR-SPUR,FLYWHEEL
59051-1388
$70.86
92033
RING-SNAP,PISTON
92033-1314
$2.55
92043
PIN,CRANKSHAFT GEAR
92043-1612
$2.58
92141
BUSHING,CONNECTING ROD,STD
92141-1054
$6.77
92141A
BUSHING,CONNECTING ROD,U/S
92141-1055
Unavailable
92141B
BUSHING,CRANKSHAFT,UPP,STD
92141-1056
Unavailable
92141C
BUSHING,CRANKSHAFT,UPP,U/S
92141-1057
Unavailable
92141D
BUSHING,CRANKSHAFT,LWR,STD
92141-1058
Unavailable
92141E
BUSHING,CRANKSHAFT,LWR,U/S
92141-1059
Unavailable
92151
BOLT,CONNECTING ROD
92151-1671
$3.46
92151A
BOLT,PULLEY
92151-1672
$9.13
92151B
BOLT,8X45
92151-1674
$3.86
92153
BOLT,10X33
92153-0308
$6.48
92200
WASHER,THRUST,STD
92200-1498
$5.84
92200A
WASHER,THRUST,O/S 0.125
92200-1499
Unavailable
92210
NUT,CONNECTING ROD
92210-1212
$2.58
