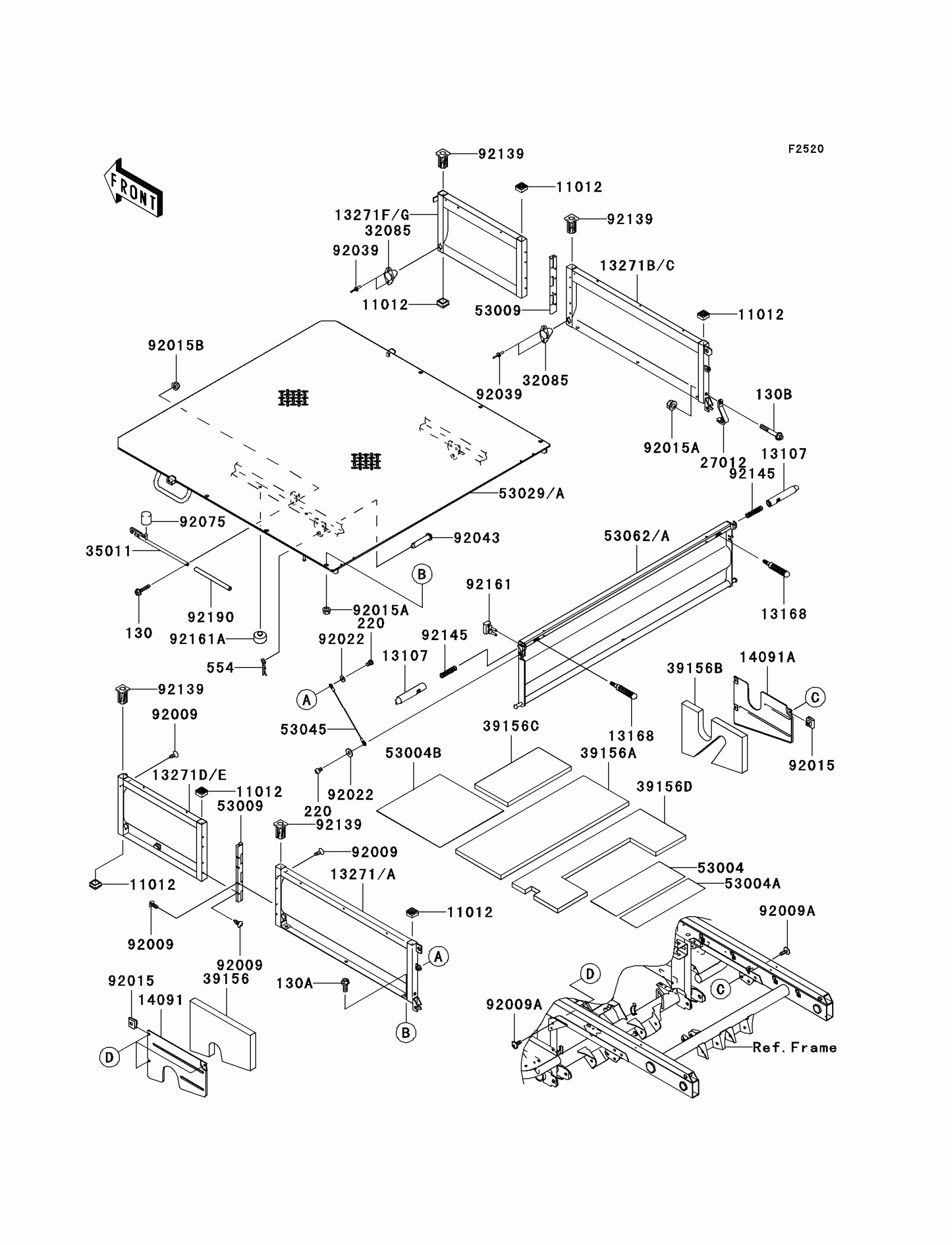

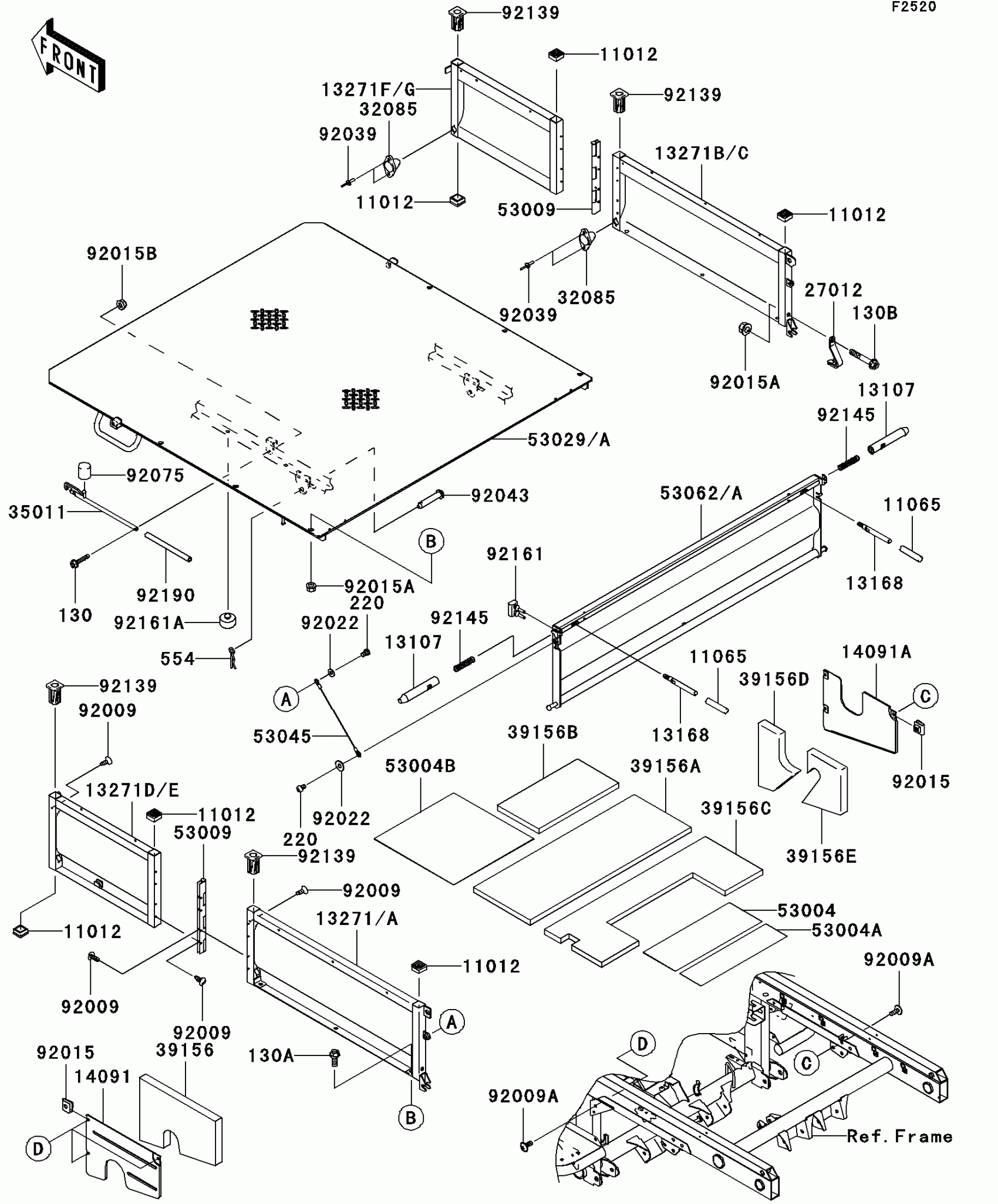

Kawasaki Mule 3010 Trans4x4 Diesel Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$6.32

11065

CAP

11065-0126

$3.38

13107

SHAFT

13107-0082

$65.41

13168

LEVER

13168-0090

$12.04

13271

PLATE,SIDE,RR,LH,W.GREEN

13271-7532-398

$162.42

13271A

PLATE,SIDE,RR,LH,A.RED

13271-7532-467

$162.42

13271B

PLATE,SIDE,RR,RH,W.GREEN

13271-7534-398

$162.42

13271C

PLATE,SIDE,RR,RH,A.RED

13271-7534-467

$162.42

13271D

PLATE,SIDE,FR,LH,W.GREEN

13271-7535-398

$116.97

13271E

PLATE,SIDE,FR,LH,A.RED

13271-7535-467

$116.97

13271F

PLATE,SIDE,FR,RH,W.GREEN

13271-7537-398

$116.97

13271G

PLATE,SIDE,FR,RH,A.RED

13271-7537-467

$116.97

14091

COVER,ENCLOSURE,LH

14091-7546

$59.75

14091A

COVER,ENCLOSURE,RH

14091-7562

$59.75

27012

HOOK,TAIL GATE

27012-0022

$6.43

32085

STOPPER

32085-7501

$6.96

35011

STAY,CARRIER STOPPER

35011-1648

$28.90

39156

PAD,ENCLOSURE COVER,LH

39156-0007

$39.91

39156A

PAD,CARRIER,MIDDLE

39156-0010

$75.13

39156B

PAD,CARRIER,FR

39156-7504

$28.07

39156C

PAD,CARRIER,RR

39156-7505

$75.12

39156D

PAD,ENCLOSURE COVER,RH

39156-7507

$22.27

39156E

PAD,ENCLOSURE COVER,RH

39156-7508

$22.27

53004

MAT,CARRIER,MIDDLE

53004-0004

Unavailable

53004A

MAT,CARRIER,RR

53004-0005

Unavailable

53004B

MAT,CARRIER,FR

53004-7502

Unavailable

53009

HINGE,CARRIER

53009-7501

$46.65

53029

CARRIER,W.GREEN

53029-7512-398

$860.03

53029A

CARRIER,A.RED

53029-7512-467

$984.47

53045

HOOK-ASSY,TAIL GATE

53045-0004

$29.74

53062

GATE-TAIL,W.GREEN

53062-7503-398

$416.34

53062A

GATE-TAIL,A.RED

53062-7503-467

$444.42

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,6MM

92015-1094

$8.58

92015A

NUT,FLANGED,8MM

92015-1408

$5.38

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,7X18X1.2

92022-1545

$1.03

92039

RIVET

92039-1150

$3.92

92043

PIN,12X65

92043-1428

$10.09

92075

DAMPER

92075-1817

$6.22

92139

BUSHING,REAR SCREEN

92139-7501

$4.67

92145

SPRING,TENSIONER

92145-1215

$4.63

92161

DAMPER

92161-0258

$4.16

92161A

DAMPER

92161-7510

$4.36

92190

TUBE,13X16X200

92190-1401

$5.25

130

BOLT-FLANGED,6X30

130H0630

$1.42

130A

BOLT-FLANGED,8X20

130J0820

$0.83

130B

BOLT-FLANGED,8X50

130J0850

$4.37

220

SCREW-PAN-CROSS,6X10

220F0610

$1.81

554

PIN-SNAP,12MM

554A1200

$3.57
