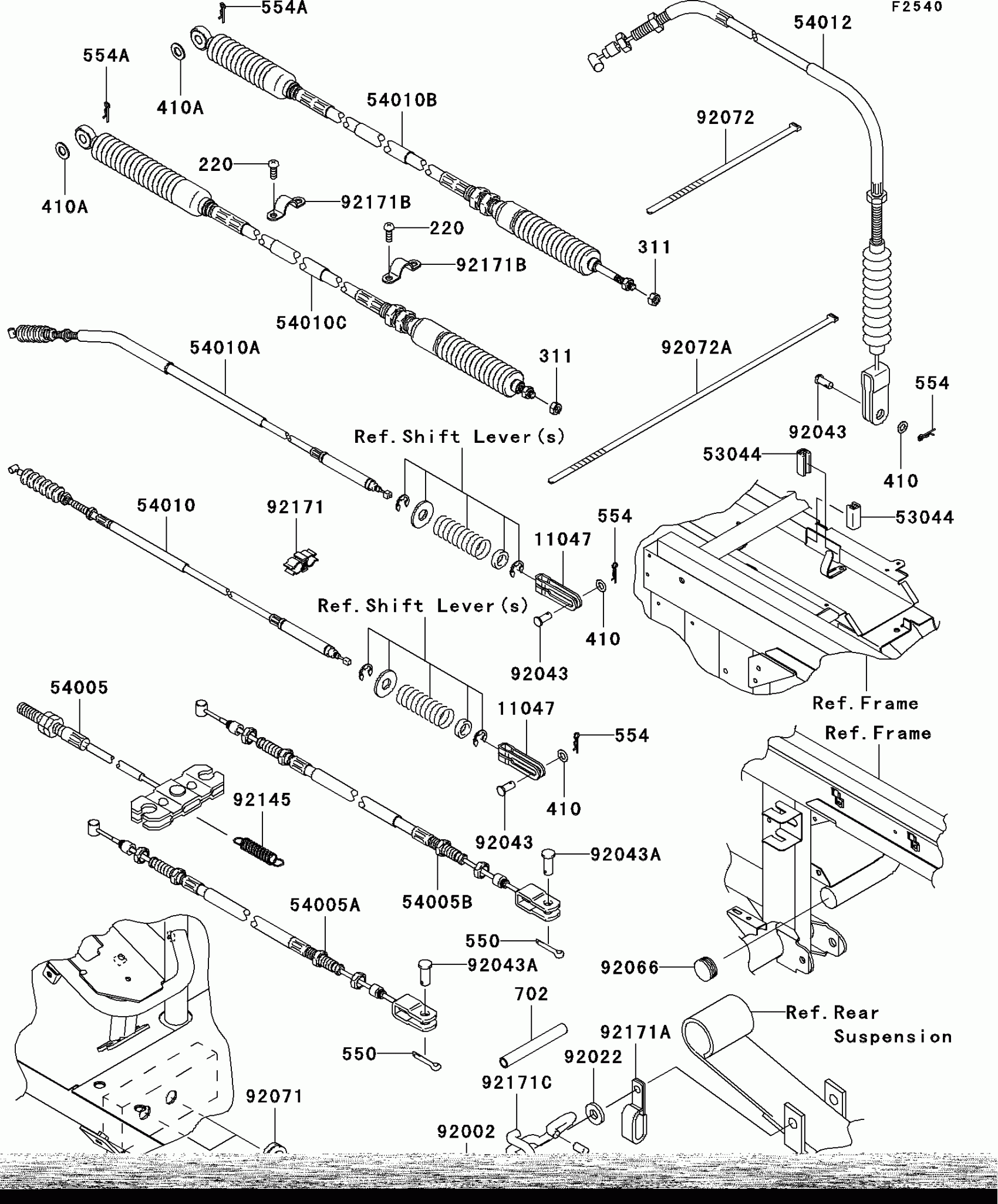

Kawasaki Mule 3010 Trans4x4 Diesel Cables Diagram
#
Description
Price
11047
BRACKET,DIFF LOCK
11047-1043
Unavailable
11065
CAP
11065-7505
$2.67
53044
TRIM,L=22
53044-7503
$7.83
54005
CABLE-BRAKE,PARKING,FR
54005-1198
$10.30
54005A
CABLE-BRAKE,PARKING,RR,LH
54005-7503
$35.73
54005B
CABLE-BRAKE,PARKING,RR,RH
54005-7504
$37.42
54010
CABLE,2-4WD
54010-0045
$51.03
54010A
CABLE,DIFF LOCK
54010-7504
$98.33
54010B
CABLE,HI-LOW
54010-7506
$136.24
54010C
CABLE,SHIFT CONTROL
54010-7508
$180.18
54012
CABLE-THROTTLE
54012-7506
$49.03
92002
BOLT,8X14
92002-1589
$5.05
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92043
PIN,6X11
92043-092
$4.69
92043A
PIN
92043-1039
$9.91
92066
PLUG
92066-7503
$1.75
92071
GROMMET
92071-1027
Unavailable
92072
BAND,L=188
92072-1239
$1.73
92072A
BAND,L=368.3
92072-3872
$1.59
92145
SPRING
92145-7506
$9.34
92171
CLAMP
92171-0129
$4.18
92171A
CLAMP,CABLE
92171-0176
$5.48
92171B
CLAMP
92171-1203
$2.58
92171C
CLAMP,BRAKE CABLE
92171-1210
$14.02
220
SCREW-PAN-CROS,5X14
220D0514
$4.04
311
NUT 6MM
311B0600
$0.93
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
410A
W-PLAIN-S,8MM
410E0800
$0.96
550
PIN-COTTER,2.0X22
550D2022
$2.51
554
PIN,SNAP
554A0600
$0.93
554A
PIN-SNAP,8MM
554A0800
$1.26
702
TUBE-RUBBER,5X8X55
702A0555
$9.53
