Bevel Gear Case

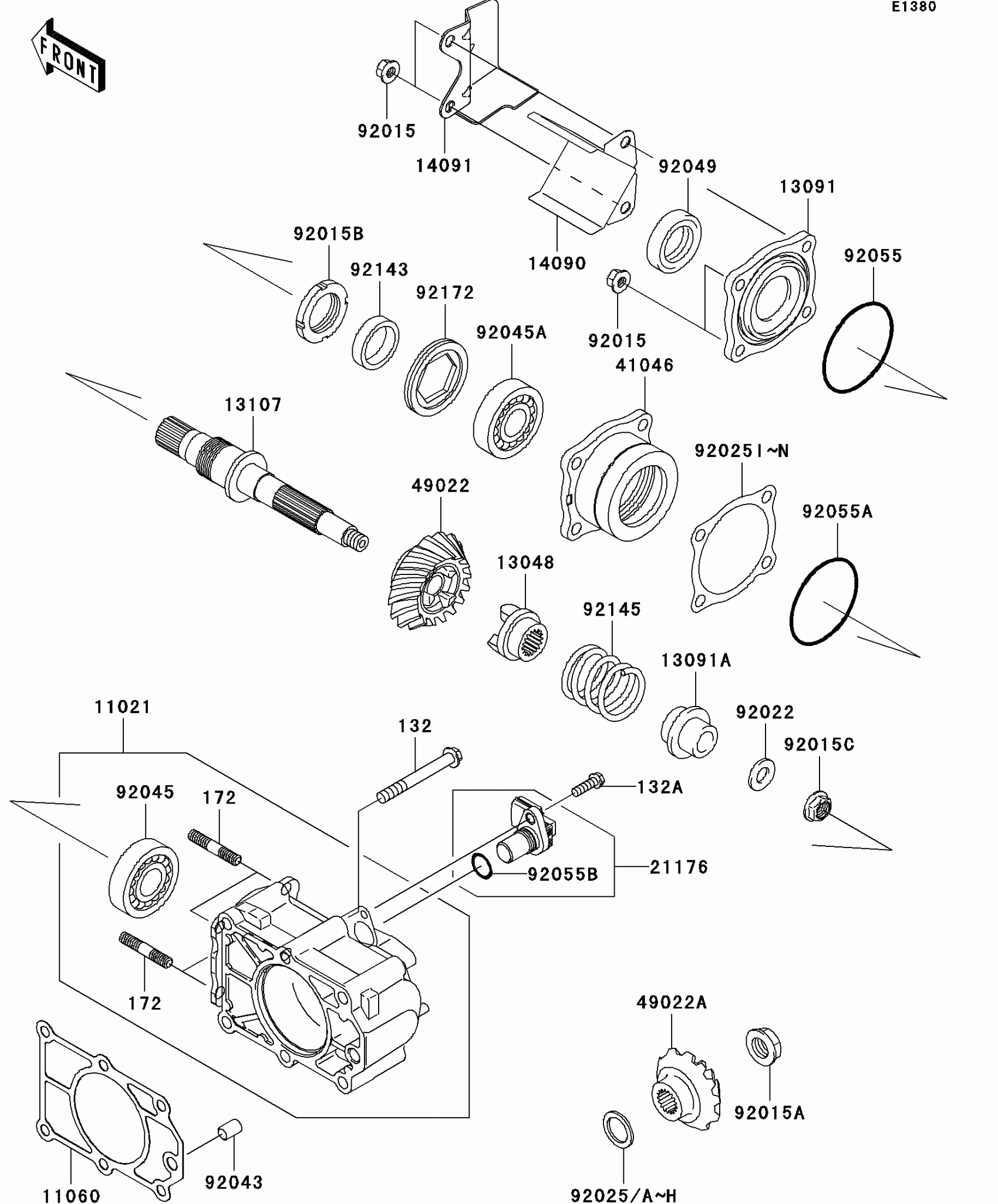

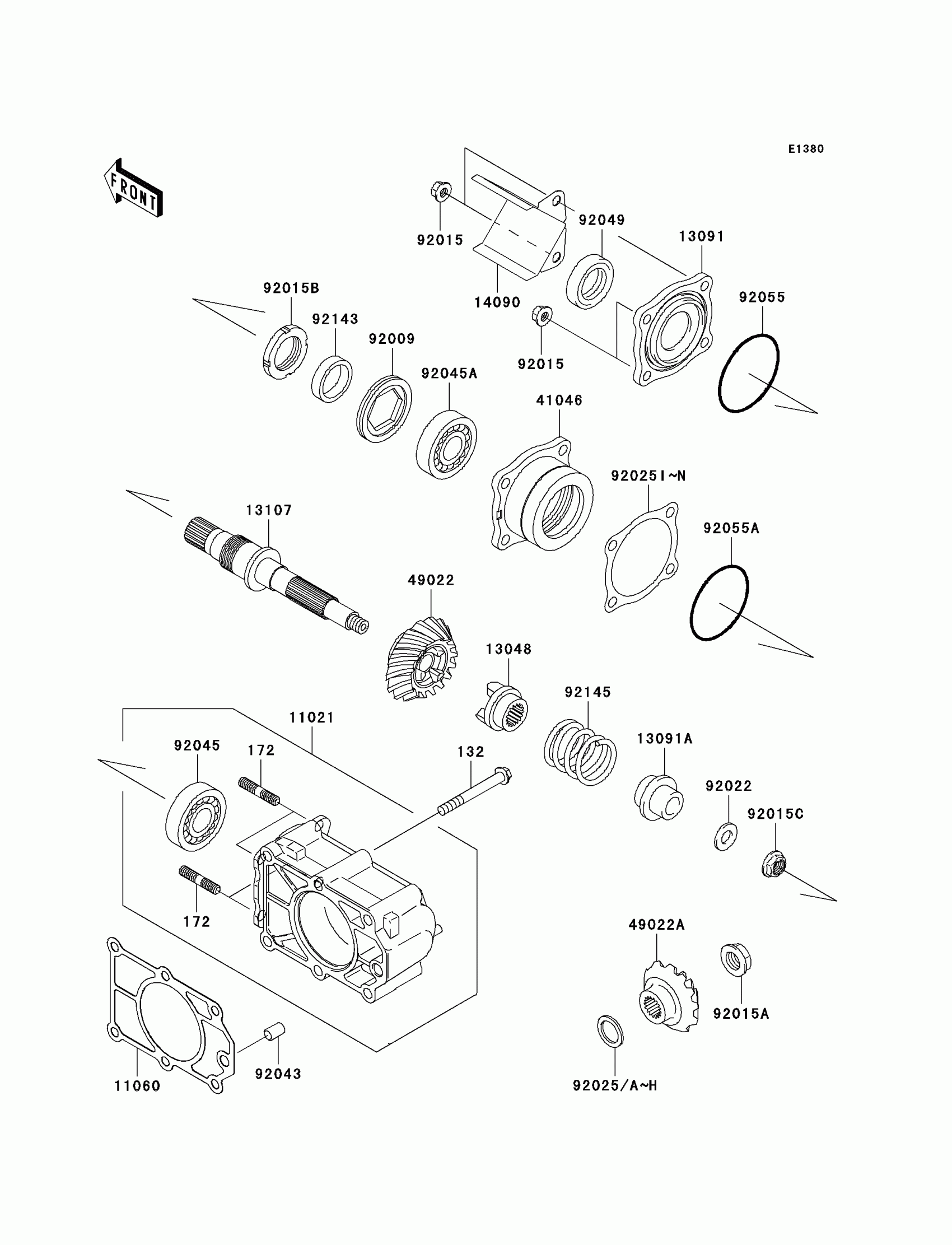

Kawasaki Mule 3010 Trans4x4 Diesel Bevel Gear Case Diagram
#
11021
CASE-ASSY
11021-0016
$470.58
11060
GASKET,GEAR CASE
11060-1311
$9.34
13048
CAM-DAMPER
13048-1089
$50.49
13091
HOLDER,GEAR CASE
13091-1620
$41.26
13091A
HOLDER,CAM DAMPER
13091-1810
$46.47
13107
SHAFT,BEVEL GEAR
13107-1523
$210.11
14090
COVER,GRILL
14090-1341
Unavailable
14091
COVER
14091-0939
$28.84
21176
SENSOR,SPEED
21176-1104
$118.31
41046
HOUSING-BEARING
41046-1083
$131.93
49022
GEAR-BEVEL,18T
49022-1204
$214.46
49022A
GEAR-BEVEL,15T
49022-1205
$214.46
92015
NUT,8MM
92015-1402
$4.69
92015A
NUT,16MM
92015-1581
$19.64
92015B
NUT,30MM
92015-1858
$32.95
92015C
NUT,12MM
92015-1920
$7.27
92022
WASHER,12X24X2.3
92022-1890
$5.00
92025
SHIM,20.3X28X1.3
92025-1533
Unavailable
92025A
SHIM,20.3X28X0.7
92025-1534
Unavailable
92025B
SHIM,20.3X28X0.8
92025-1535
Unavailable
92025C
SHIM,20.3X28X0.9
92025-1536
Unavailable
92025D
SHIM,20.3X28X1.0
92025-1537
Unavailable
92025E
SHIM,20.3X28X1.2
92025-1538
Unavailable
92025F
SHIM,20.3X28X0.15
92025-1573
Unavailable
92025G
SHIM,20.3X28X0.20
92025-1574
Unavailable
92025H
SHIM,20.3X28X1.1
92025-1575
Unavailable
92025I
SHIM,T=1.00
92025-1858
Unavailable
92025J
SHIM,T=0.10
92025-1859
Unavailable
92025K
SHIM,T=0.15
92025-1860
Unavailable
92025L
SHIM,T=0.50
92025-1861
Unavailable
92025M
SHIM,T=0.80
92025-1862
Unavailable
92025N
SHIM,T=1.20
92025-1863
Unavailable
92043
PIN,DOWEL,10X14
92043-1037
$0.74
92045
BEARING-BALL,6205CM
92045-1200
Unavailable
92045A
BEARING-BALL,6006CM
92045-1201
$25.19
92049
SEAL-OIL
92049-1288
$8.98
92055
RING-O,66.5MM
92055-1287
$6.57
92055A
RING-O,63.6X2.4
92055-1294
$9.51
92055B
RING-O
92055-1718
$2.41
92143
COLLAR
92143-1600
$17.22
92145
SPRING
92145-1542
$18.20
92172
SCREW,SET,58X10
92172-0316
$25.46
132
BOLT-FLANGED-SMALL,8X70
132H0870
$5.81
132A
BOLT-FLANGED-SMALL,6X20
132Y0620
$3.84
172
BOLT-STUD,8X30
172G0830
$2.56
