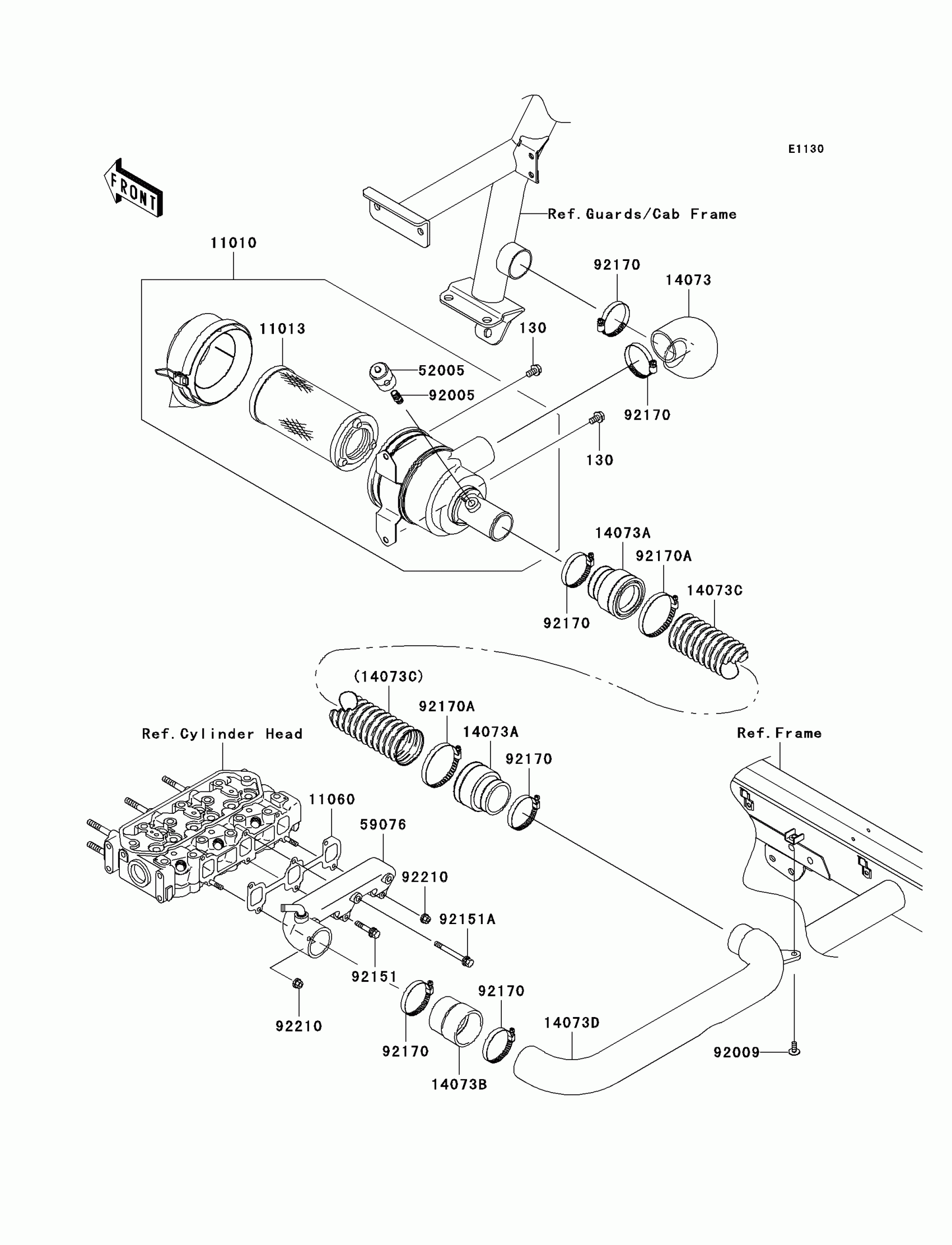

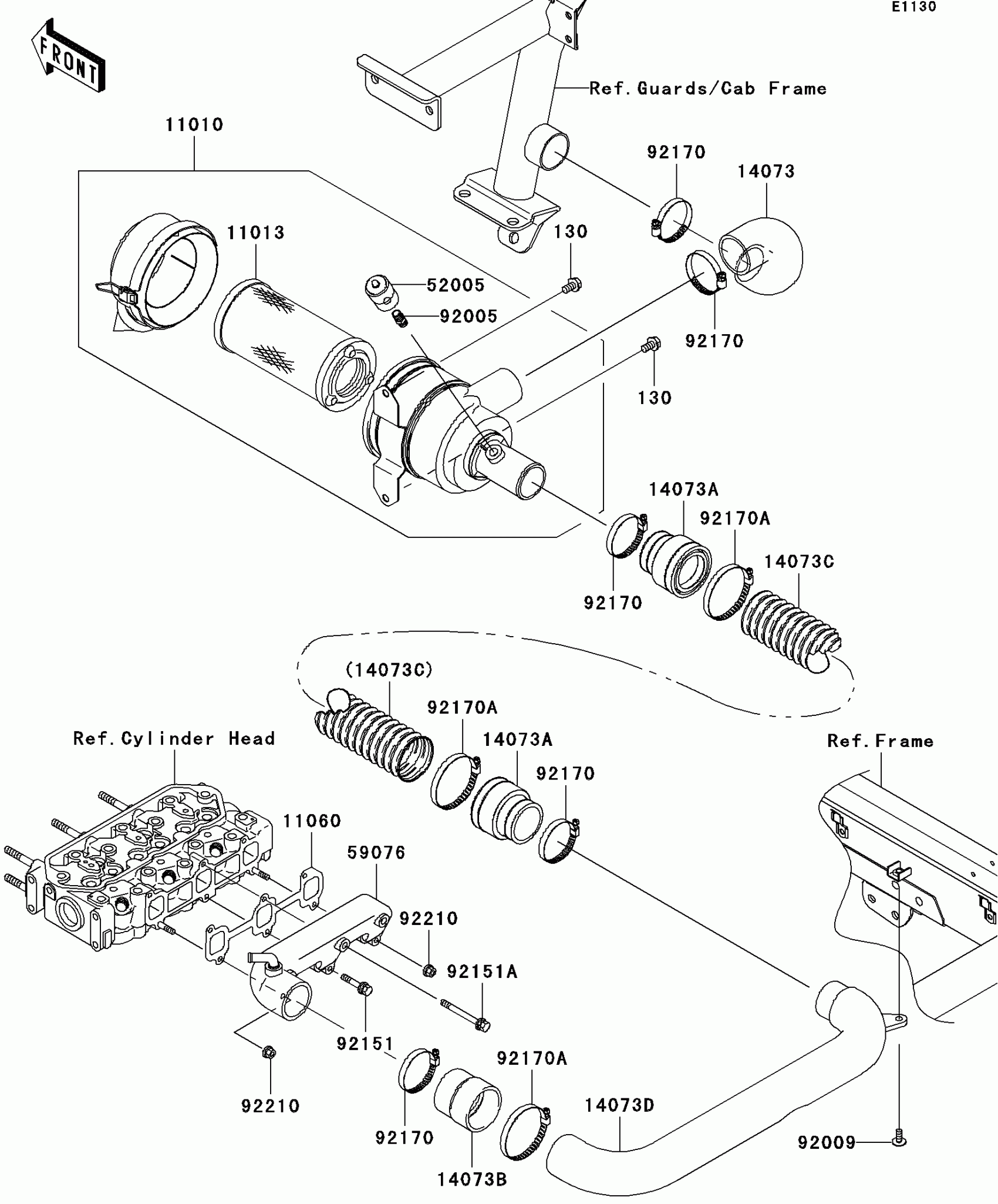

Kawasaki Mule 3010 Trans4x4 Diesel Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-7503

$150.90

11013

ELEMENT-AIR FILTER

11013-1290

$28.98

11060

GASKET,INTAKE MANIFOLD

11060-1960

$11.42

14073

DUCT,BAR-AIR FILTER

14073-7501

$13.08

14073A

DUCT,ADAPTER

14073-7505

$3.99

14073B

DUCT,BLOW DUCT-E/G

14073-7508

$7.69

14073C

DUCT,A/C-BLOW DUCT

14073-7509

$45.77

14073D

DUCT,BLOW

14073-7510

$51.08

52005

GAUGE

52005-0017

$47.02

59076

MANIFOLD-INTAKE

59076-1112

$127.40

92005

FITTING,AIR FILTER

92005-1386

$1.75

92009

SCREW,6X16

92009-1621

Unavailable

92151

BOLT,6X20

92151-1667

$2.58

92151A

BOLT,6X60

92151-1695

$2.58

92170

CLAMP

92170-1674

$11.76

92170A

CLAMP

92170-1764

$11.48

92210

NUT,6MM

92210-1210

$2.58

130

BOLT-FLANGED,8X14

130J0814

$3.84
