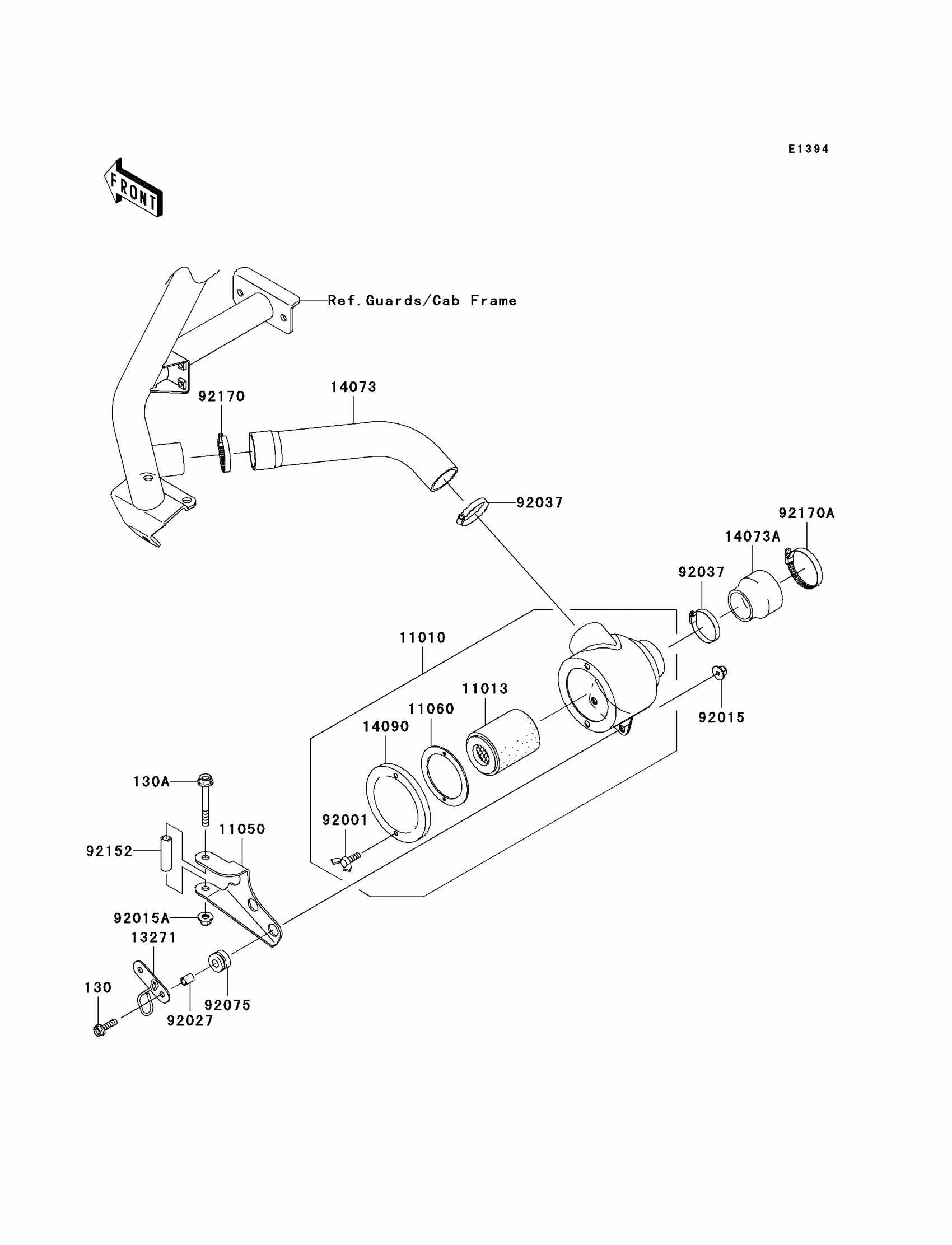

Kawasaki Mule 3010 Trans4x4 Air Cleaner-Belt Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30,BLA

130C0830

$4.15

130A

BOLT-FLANGED,10X75

130J1075

$8.27

11010

FILTER-ASSY-AIR

11010-0062

$197.53

11013

ELEMENT-AIR FILTER

11013-1263

$20.58

11050

BRACKET

11050-1404

$26.76

11060

GASKET,AIR FILTER CASE

11060-1975

$10.57

13271

PLATE

13271-7587

$5.71

14073

DUCT

14073-1699

$48.69

14073A

DUCT

14073-1700

$21.64

14090

COVER,AIR FILTER

14090-1766

$12.66

92001

BOLT,WING,6X15

92001-1703

$3.44

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,LOCK,10MM

92015-1597

$5.52

92027

COLLAR

92027-1081

$9.59

92037

CLAMP

92037-3009

$3.70

92075

DAMPER

92075-1736

$6.57

92152

COLLAR,10.5X16X50

92152-0083

$7.71

92170

CLAMP

92170-1674

$11.76

92170A

CLAMP

92170-1764

$11.48
