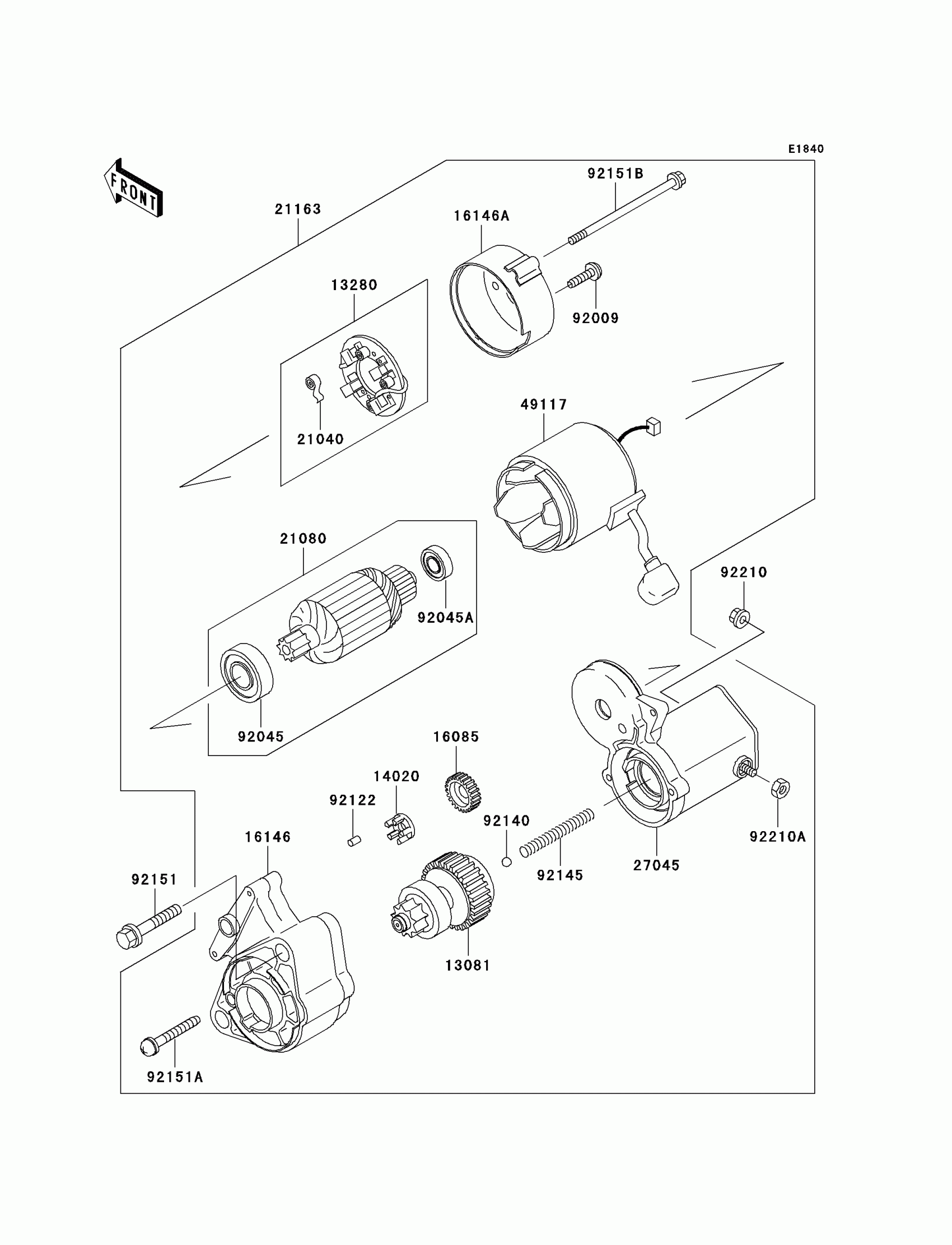

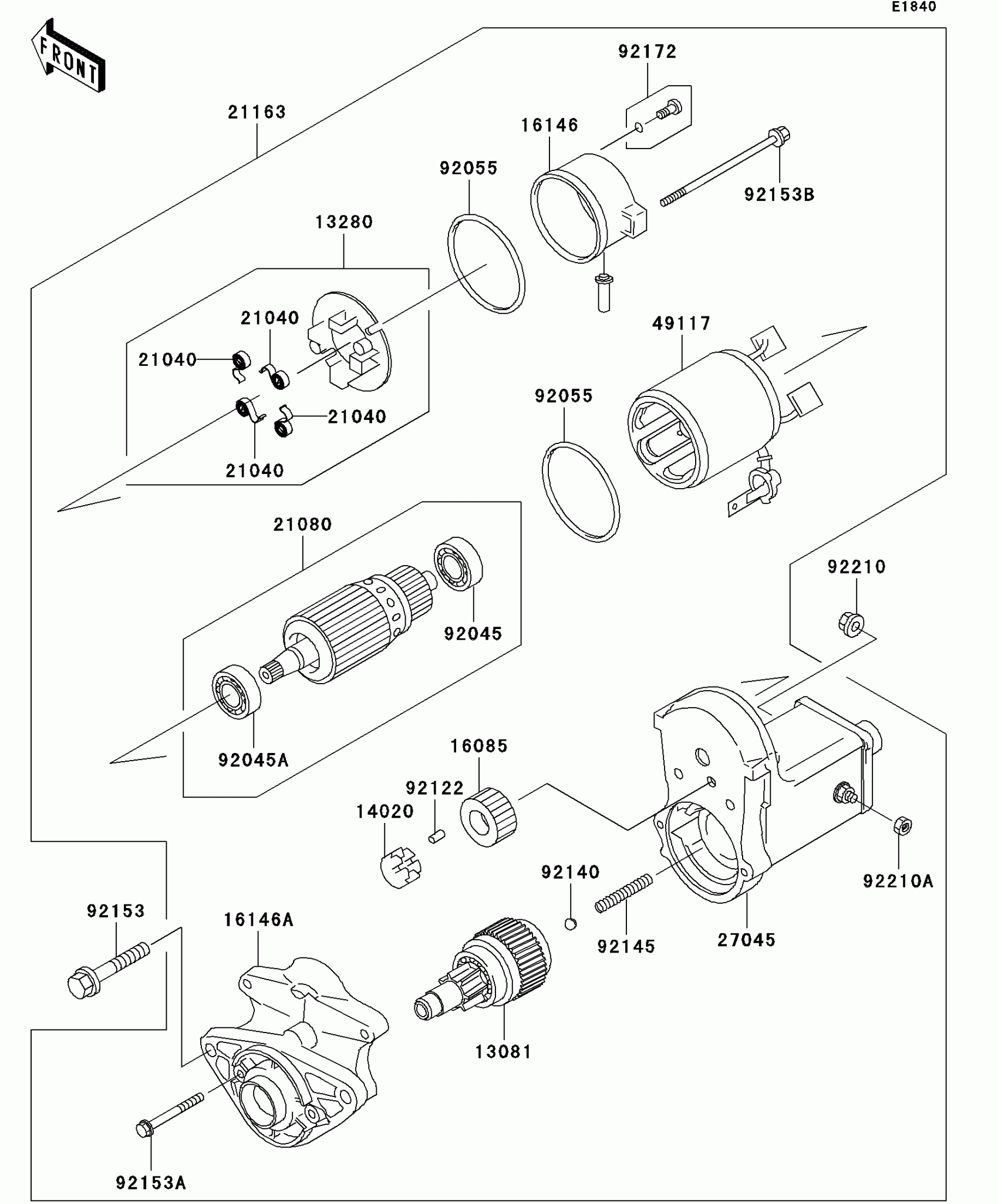

Kawasaki Mule 3010 Diesel 4X4 Starter Motor Diagram

Description

Price

13081

CLUTCH-ASSY

13081-0080

$357.88

13280

HOLDER,STARTER BRUSH

13280-0179

$90.25

14020

RETAINER

14020-0005

$10.13

16085

GEAR,STARTER IDLE

16085-0089

$45.26

16146

COVER-ASSY,COMMUTATOR END

16146-0037

$106.94

16146A

COVER-ASSY,STARTER DRIVE

16146-0038

$294.28

21040

SPRING-BRUSH

21040-0002

$5.15

21080

ARMATURE,SATRTER

21080-0001

$457.38

21163

STARTER-ELECTRIC

21163-0030

$374.41

27045

SWITCH-ASSY,MAGNETIC

27045-0008

$457.38

49117

YOKE,STARTER

49117-0016

$404.99

92045

BEARING-BALL,ARMATURE,FR

92045-0054

$32.68

92045A

BEARING-BALL,ARMATURE,RR

92045-0055

$37.81

92055

RING-O

92055-0108

$10.79

92122

ROLLER,IDLE GEAR

92122-1210

$2.58

92140

BALL

92140-1065

$2.55

92145

SPRING,MAGNET,SWITCH RETURN

92145-0391

$4.05

92153

BOLT

92153-0487

$2.93

92153A

BOLT,5X35.2

92153-1497

$3.12

92153B

BOLT,5X115

92153-1498

$15.25

92172

SCREW,4X11.8

92172-0252

$3.55

92210

NUT,8MM

92210-1219

$2.58

92210A

NUT

92210-1231

$5.84
