2007 Kawasaki Mule 3010 Diesel 4X4 Radiator Diagram

← All diagrams

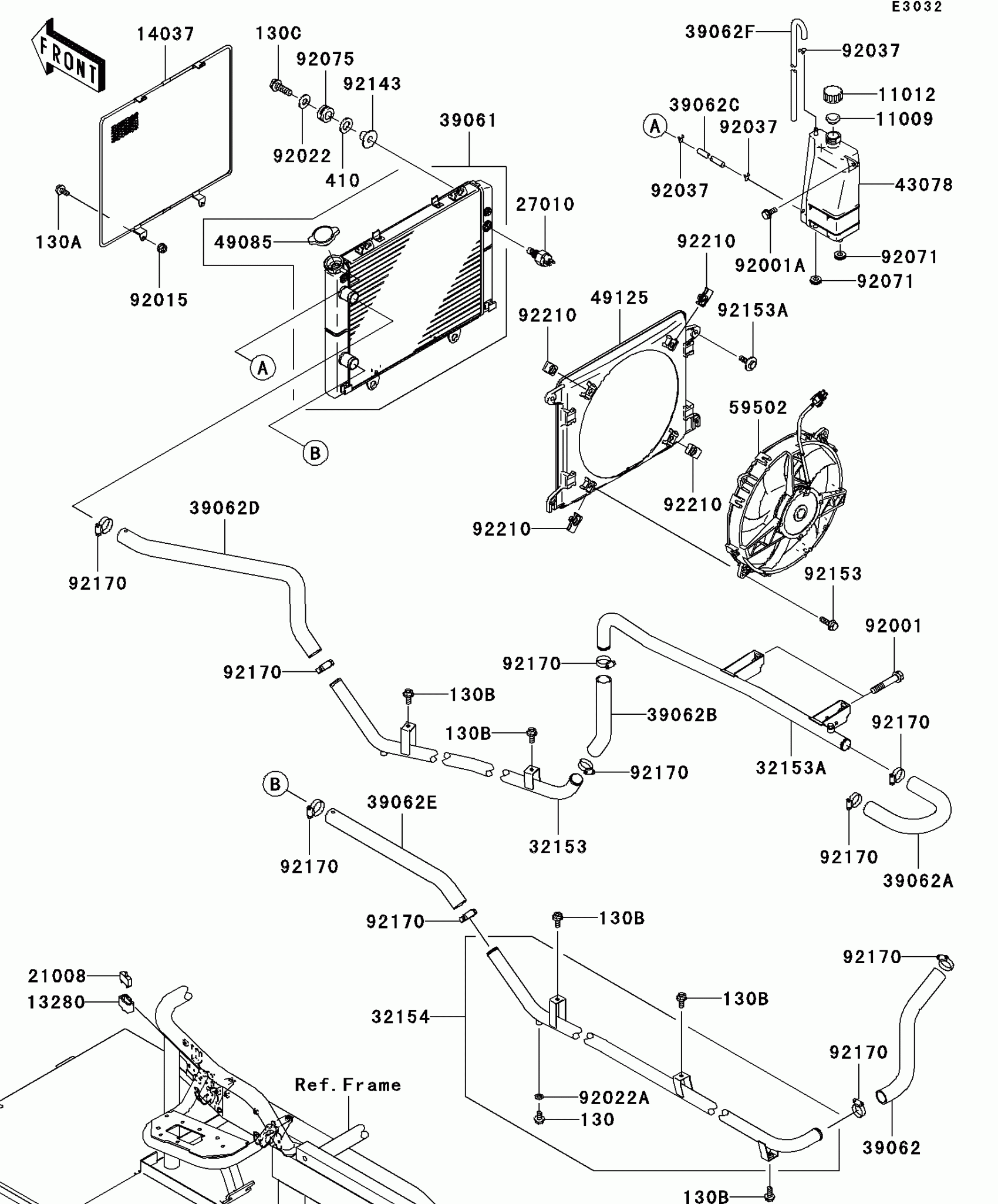

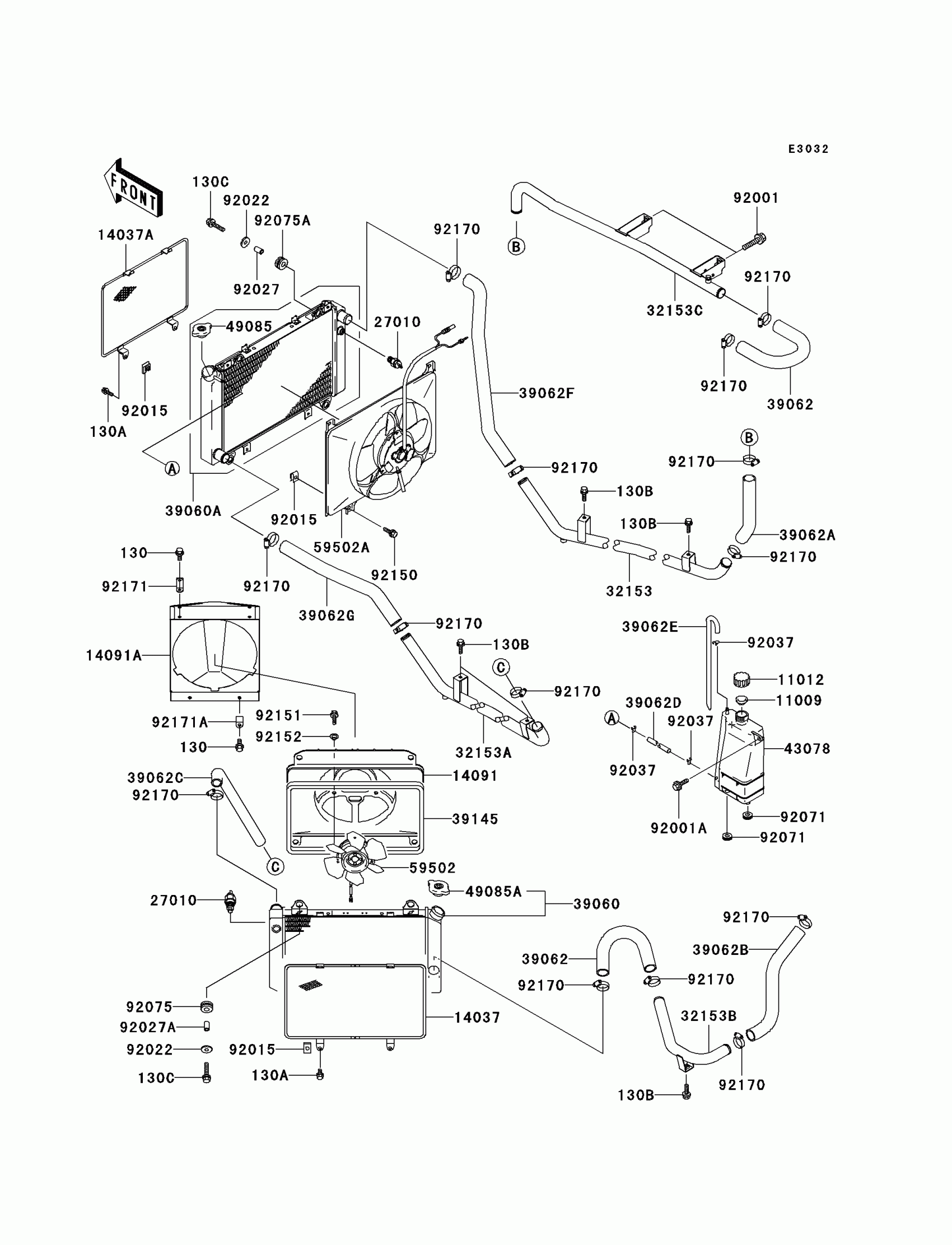

Find the part on the Radiator diagram for your 2007 Kawasaki Mule 3010 Diesel 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 Diesel 4X4 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14037

SCREEN

14037-1258

1
Out of stock

14037A

SCREEN

14037-1284

1
Out of stock

14091

COVER,SHROUD

14091-1135

1
Out of stock

14091A

COVER

14091-1216

1
Out of stock

27010

SWITCH,FAN

27010-1317

1
Out of stock

32153

PIPE,RH

32153-1056

1
Out of stock

32153A

PIPE,LH,FRONT

32153-1255

1
Out of stock

32153B

PIPE,LH,REAR

32153-1256

1
Out of stock

32153C

PIPE

32153-1933

1
Out of stock

39060

RADIATOR

39060-1184

1
Out of stock

39060A

RADIATOR

39060-1187

1
Out of stock

39062

HOSE-COOLING

39062-1797

1
Out of stock

39062A

HOSE-COOLING

39062-1799

1
Out of stock

39062B

HOSE-COOLING

39062-1800

1
Out of stock

39062C

HOSE-COOLING

39062-1826

1
Out of stock

39062D

HOSE-COOLING,5.5X10.5X600

39062-1829

1
Out of stock

39062E

HOSE-COOLING

39062-1830

1
Out of stock

39062F

HOSE-COOLING

39062-1834

1
Out of stock

39062G

HOSE-COOLING

39062-1835

1
Out of stock

39145

TRIM-SEAL

39145-1119

1
Out of stock

43078

RESERVOIR

43078-1185

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1
Out of stock

49085A

CAP-ASSY-PRESSURE

49085-1068

1
Out of stock

59502

FAN-ASSY

59502-1134

1
Out of stock

59502A

FAN-ASSY

59502-1137

1
Out of stock

92001

BOLT,FLANGED,8X45

92001-1613

1
Out of stock

92001A

BOLT,W/P,6X16

92001-1860

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92027

COLLAR

92027-102

1
Out of stock

92027A

COLLAR,8.2X10.5X15.6

92027-1763

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92071

GROMMET

92071-1115

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92075A

DAMPER

92075-294

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92151

BOLT,FLANGED,5X12

92151-1305

1
Out of stock

92152

COLLAR

92152-1241

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130C

BOLT-FLANGED,8X30

130J0830

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1284

1
Out of stock

92171

CLAMP,UPP

92171-1186

1
Out of stock

92171A

CLAMP,LWR

92171-1187

1
Out of stock
