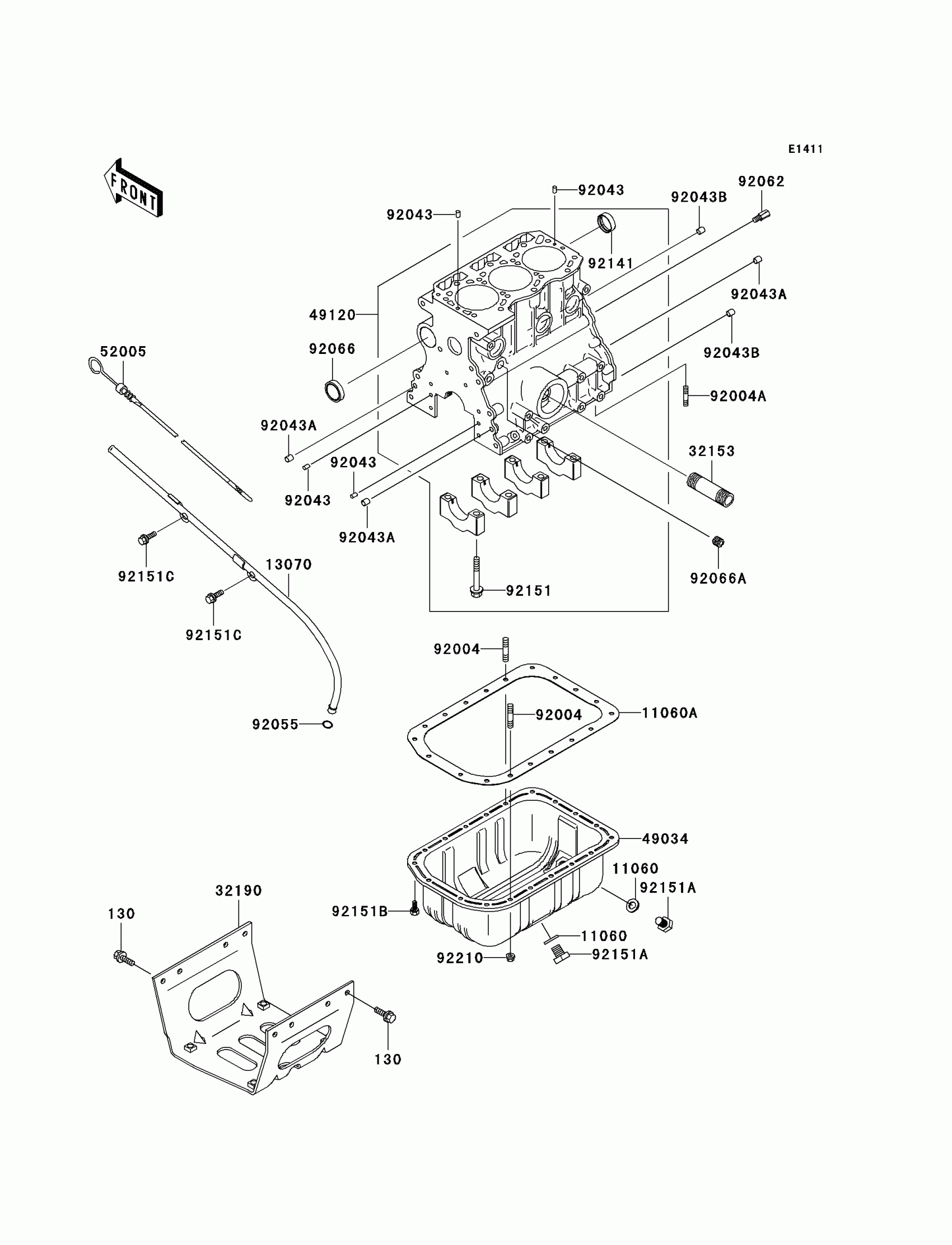

Kawasaki Mule 3010 Diesel 4X4 Crankcase Diagram

Description

Price

130

BOLT-FLANGED,8X16

130J0816

Unavailable

11060

GASKET,OIL DRAIN BOLT

11060-1942

$2.82

11060A

GASKET,OIL PAN

11060-1943

$38.94

13070

GUIDE,GAUGE

13070-1350

$84.50

32153

PIPE,OIL FILTER

32153-1355

$9.24

32190

BRACKET-ENGINE

32190-1187

$81.55

49034

PAN-OIL

49034-1135

$181.45

49120

CRANKCASE-COMP

49120-0008

Unavailable

52005

GAUGE,OIL LEVEL

52005-1139

$46.07

92004

STUD,6X10

92004-1261

$2.10

92004A

STUD,6X14

92004-1262

$2.10

92043

PIN,6MM

92043-1609

$1.82

92043A

PIN,8MM

92043-1610

$1.82

92043B

PIN,8MM

92043-1611

$2.12

92055

RING-O

92055-1625

$1.82

92062

NOZZLE

92062-1088

$11.58

92066

PLUG

92066-1526

$7.64

92066A

PLUG,CRANKCASE

92066-1527

$3.29

92141

BUSHING,CRANKCASE

92141-1053

$5.92

92151

BOLT,CRANKSHAFT

92151-1655

$1.96

92151A

BOLT,OIL DRAIN

92151-1656

$2.38

92151B

BOLT,6X12

92151-1657

Unavailable

92151C

BOLT,8X14

92151-1658

$2.12

92210

NUT,6MM

92210-1208

$2.12
