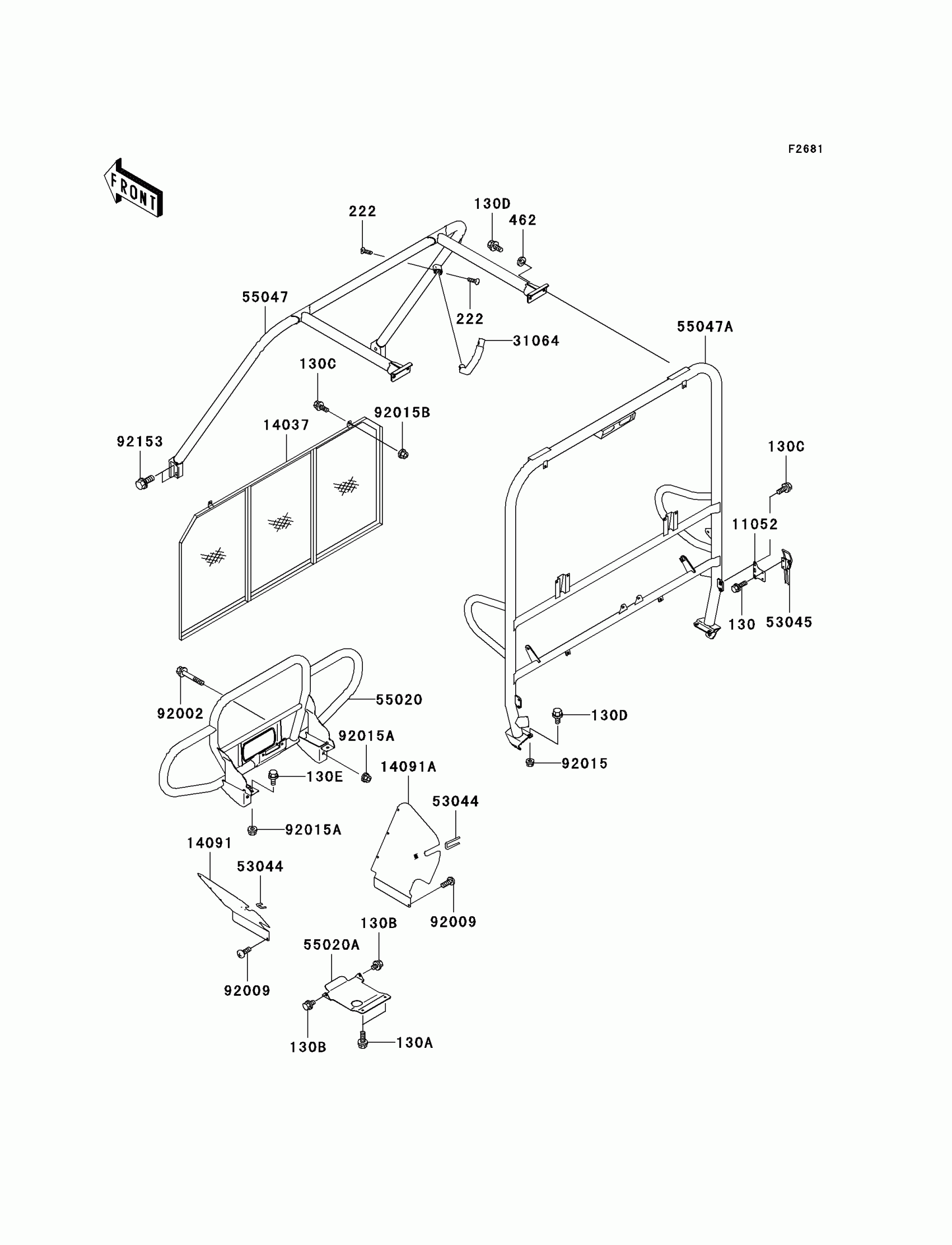

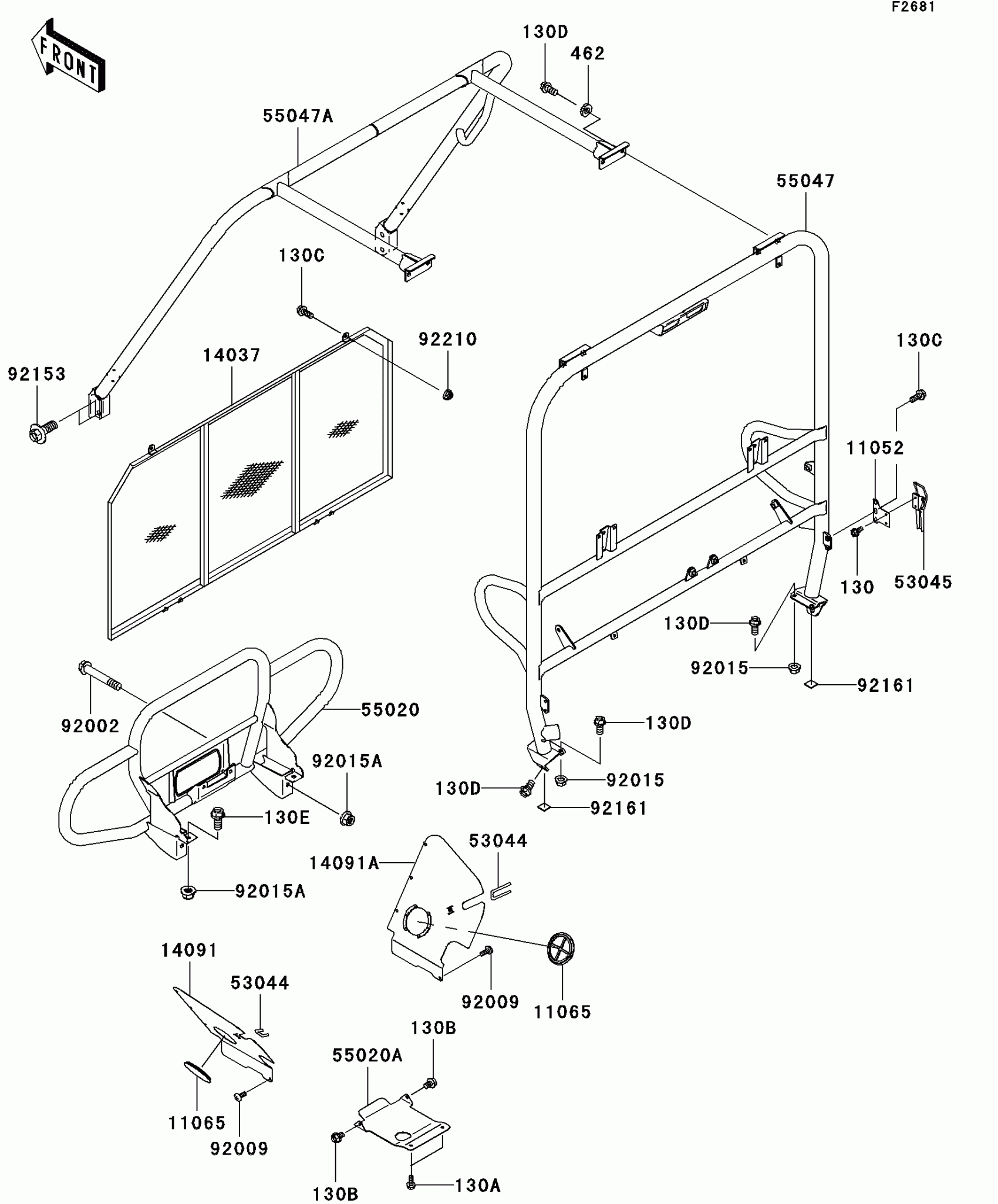

Kawasaki Mule 3010 Diesel 4X4 Guards/Cab Frame Diagram

Description

Price

11052

BRACKET,CARRIER CLAMP JOINT

11052-7559

$19.31

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

14037

SCREEN,REAR GUARD,T.BLACK

14037-0016-388

$176.28

14091

COVER,FR,LH

14091-7553

$80.58

14091A

COVER,FR,RH

14091-7554

$84.40

53044

TRIM

53044-1137

$10.65

53045

HOOK-ASSY

53045-1063

$23.47

55020

GUARD,FR,W.BLACK

55020-7505-388

$635.02

55020A

GUARD,GEAR CASE

55020-7506

$30.42

55047

BAR-COMP,RR,W.BLACK

55047-7513-388

$733.77

55047A

BAR-COMP,FR,T.BLACK

55047-7514-388

$390.26

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,FLANGED,10MM

92015-1366

$5.00

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92161

DAMPER

92161-0020

$5.00

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130A

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130B

BOLT-FLANGED,8X12

130J0812

$0.67

130C

BOLT-FLANGED,8X20

130J0820

$0.83

130D

BOLT-FLANGED,10X20

130J1020

$5.55

130E

BOLT-FLANGED

130P1225

$7.20

462

WASHER-SPRING,10MM

462K1000

$2.60
