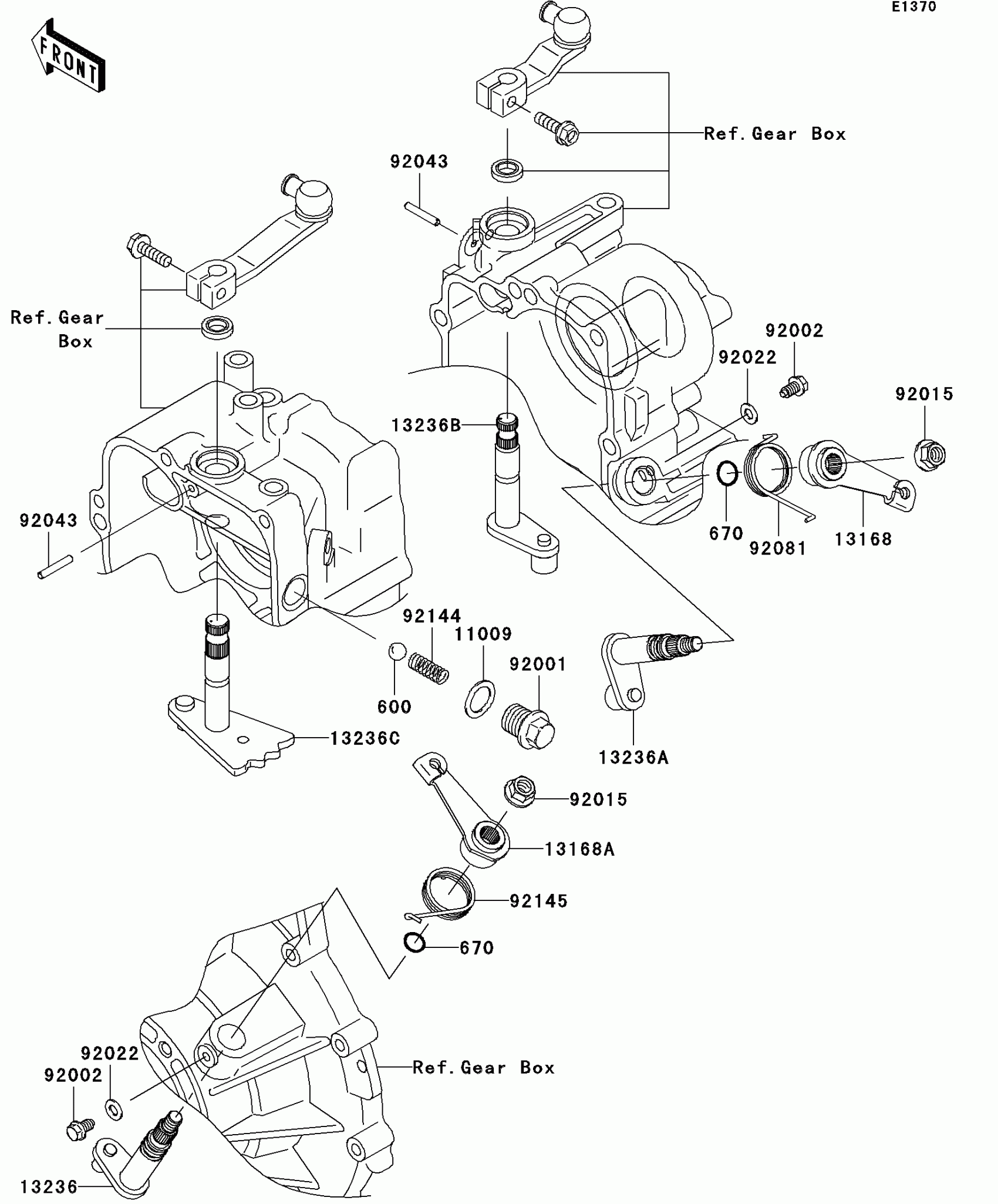

Kawasaki Mule 3010 Diesel 4X4 Gear Change Mechanism Diagram

Description

Price

600

BALL-STEEL,13/32"

600A1300

$0.78

670

O RING,10MM

670B2010

$1.13

11009

GASKET,15.5X22X1

11009-1008

$2.75

13168

LEVER

13168-1268

$25.29

13168A

LEVER,DIFF LOCK

13168-1523

$21.32

13236

LEVER-COMP,DIFF LOCK

13236-1219

$22.66

13236A

LEVER-COMP,CHANGE,2WD/4WD

13236-1247

$43.95

13236B

LEVER-COMP,HI/LOW

13236-1360

$42.53

13236C

LEVER-COMP,FR/RR

13236-1366

$37.33

92001

BOLT,NEUTRAL POSITION

92001-1037

$12.73

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$2.99

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92043

92043-1415

$2.03

92081

SPRING

92081-1853

$8.56

92144

SPRING,LOCK LEVER

92144-1198

Unavailable

92144A

SPRING,CHANGE LEVER,FR/RR

92144-1702

$8.51
