Fuel Injection

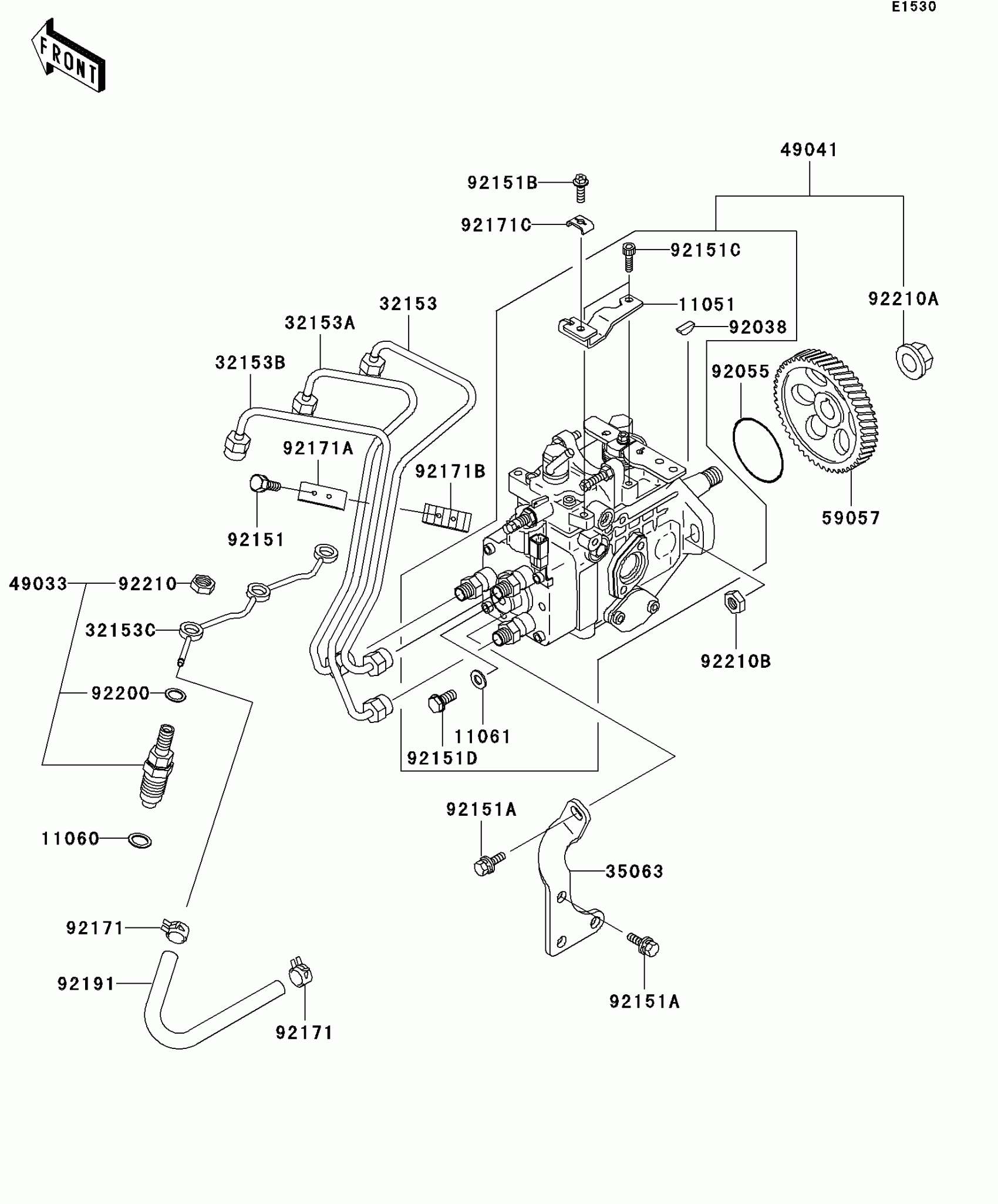

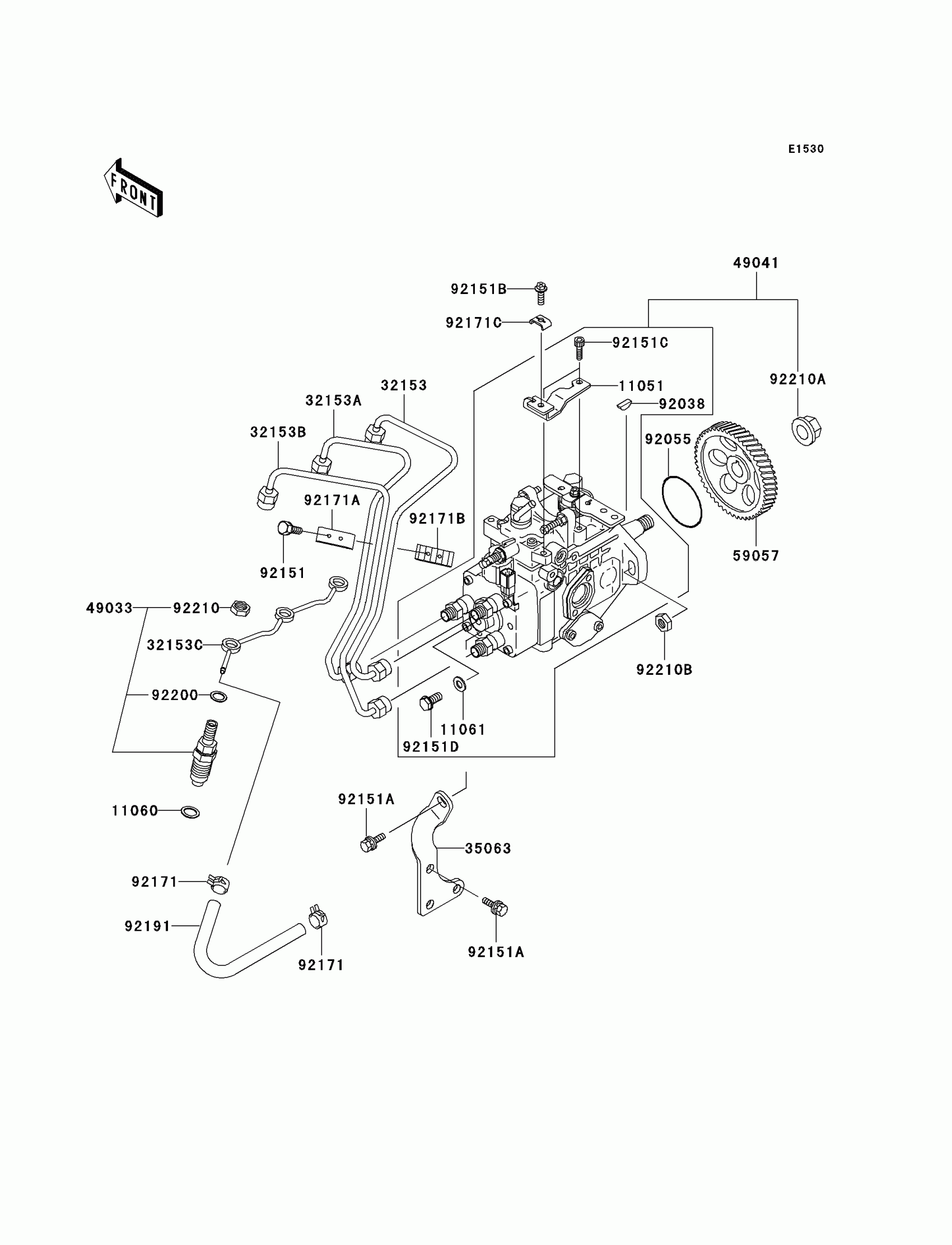

Kawasaki Mule 3010 Diesel 4X4 Fuel Injection Diagram
#
Description
Price
11051
BRACKET,THROTTLE
11051-1570
$41.66
11060
GASKET,INJECTION NOZZLE
11060-1962
$6.42
11061
GASKET,INJECTION PUMP
11061-1052
$2.85
32153
PIPE,RH
32153-1190
$41.81
32153A
PIPE,CNT
32153-1191
$50.11
32153B
PIPE,LH
32153-1192
$45.62
32153C
PIPE,NOZZLE LEAKAGE
32153-1194
$38.65
35063
STAY,INJECTION PUMP
35063-1097
$33.33
49033
NOZZLE-INJECTION
49033-1058
$237.09
49041
PUMP-INJECTION
49041-1051
$3,557.21
59057
GEAR-HELICAL,INJECTION PUMP
59057-1003
$169.03
92038
KEY
92038-1065
$3.91
92055
RING-O,INJECTION PUMP
92055-1629
$2.58
92151
BOLT,6X20
92151-1667
$2.58
92151A
BOLT,8X20
92151-1697
$2.58
92151B
BOLT,5X20
92151-1698
$2.58
92151C
BOLT,SOCKET
92151-1718
$7.92
92151D
BOLT,INJECTION PUMP
92151-1885
$7.79
92171
CLAMP,TUBE
92171-1165
$2.58
92171A
CLAMP,INJECTION PIPE
92171-1166
$9.40
92171B
CLAMP,INJECTION PIPE
92171-1167
$15.76
92171C
CLAMP,THROTTLE
92171-1168
$6.52
92191
TUBE,FUEL
92191-1450
$5.06
92200
WASHER,INJECTION NOZZLE
92200-1507
$3.86
92210
NUT,INJECTION NOZZLE
92210-1220
$6.78
92210A
NUT,14MM
92210-1221
$5.84
92210B
NUT,8MM
92210-1222
$2.58
