- Mule 3010 Diesel 4X4
Front Hubs/Brakes

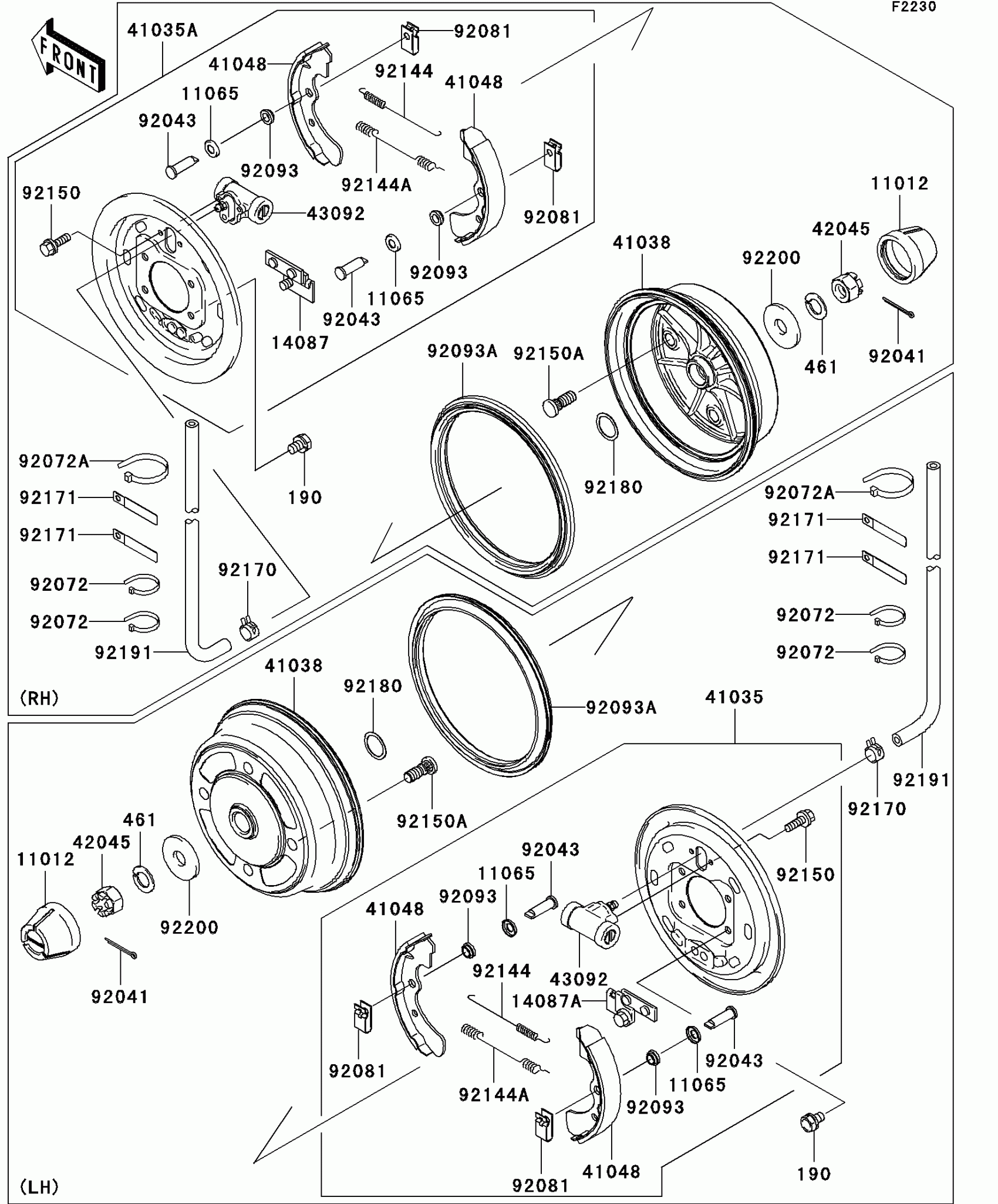

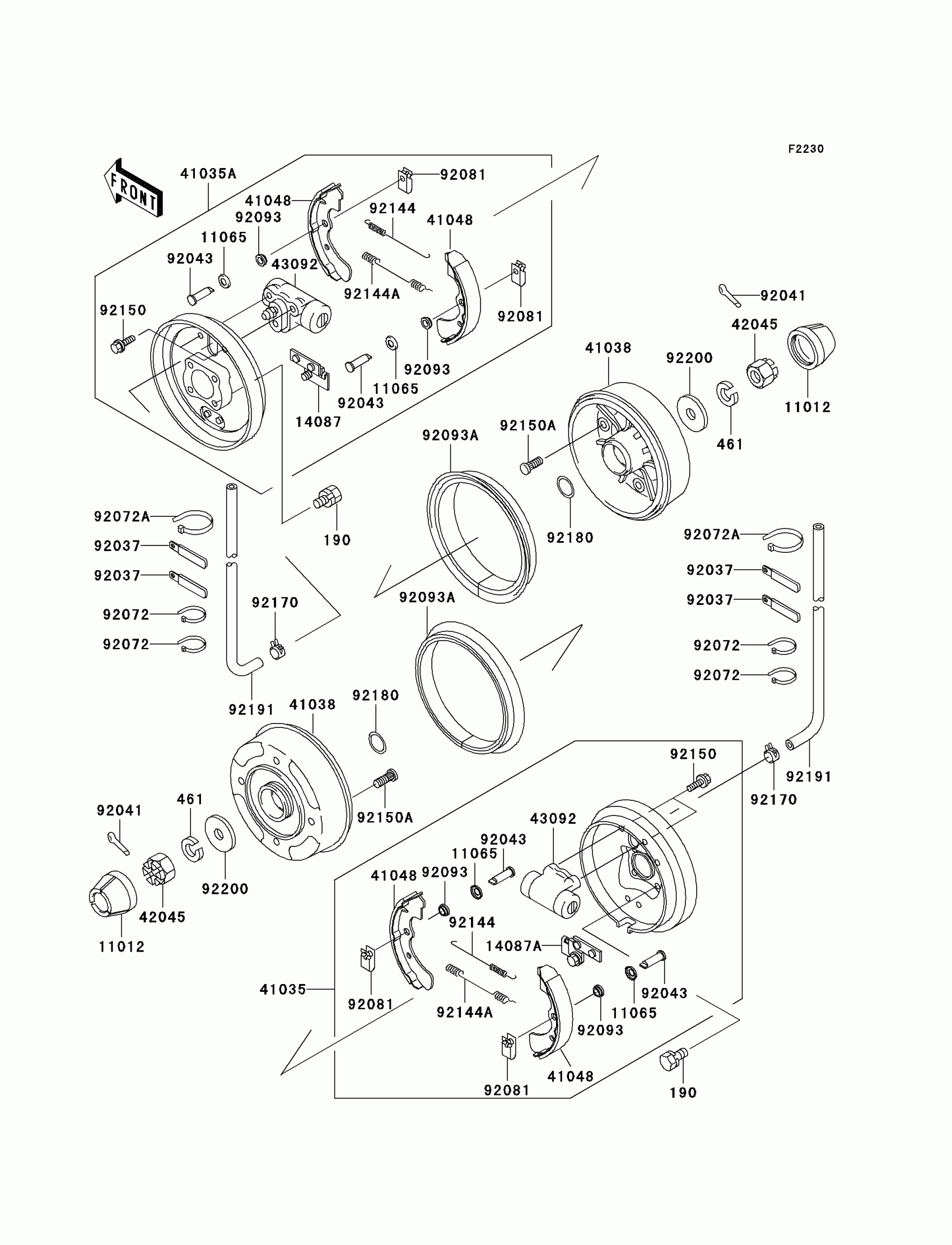

Kawasaki Mule 3010 Diesel 4X4 Front Hubs/Brakes Diagram
#
Description
Price
11012
CAP,WHEEL
11012-1969
$5.65
11065
CAP
11065-1175
$4.87
14087
RETAINER-ASSY,RH
14087-1001
$24.46
14087A
RETAINER-ASSY,LH
14087-1002
$24.46
41035
PANEL-ASSY-BRAKE,FR,LH
41035-7502
$502.19
41035A
PANEL-ASSY-BRAKE,FR,RH
41035-7504
$502.19
41038
DRUM,FRONT BRAKE
41038-0034
$324.79
41048
SHOE-BRAKE
41048-7501
$21.69
42045
NUT,CASTLE,18MM
42045-018
$9.23
43092
CYLINDER,FRONT BRAKE PANEL
43092-1054
$153.34
92041
COTTER,4.0X35
92041-1053
$3.92
92043
PIN
92043-1636
$4.20
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=149
92072-031
$5.00
92081
SPRING,SHOE CLAMP
92081-1904
$8.03
92093
SEAL
92093-1532
$8.60
92093A
SEAL,BS184.8X13.5ZS
92093-1543
$112.98
92144
SPRING,BRAKE
92144-1300
$8.30
92144A
SPRING,BRAKE
92144-1301
$8.30
92150
BOLT,FLANGED,6X12
92150-1166
$4.39
92150A
BOLT
92150-1366
$8.05
92170
CLAMP
92170-2042
$1.30
92171
CLAMP,L=60
92171-0652
$2.61
92180
SHIM,25.2X32.5X0.6
92180-1353
$2.26
92191
TUBE,4.7X9.5X1480
92191-1615
$7.82
92200
WASHER,18.5X52X4.5
92200-1474
$8.10
190
BOLT-UPSET-WS,10X16
190H1016
$4.15
461
WASHER-SPRING,18MM
461F1800
$2.72
