Front Box

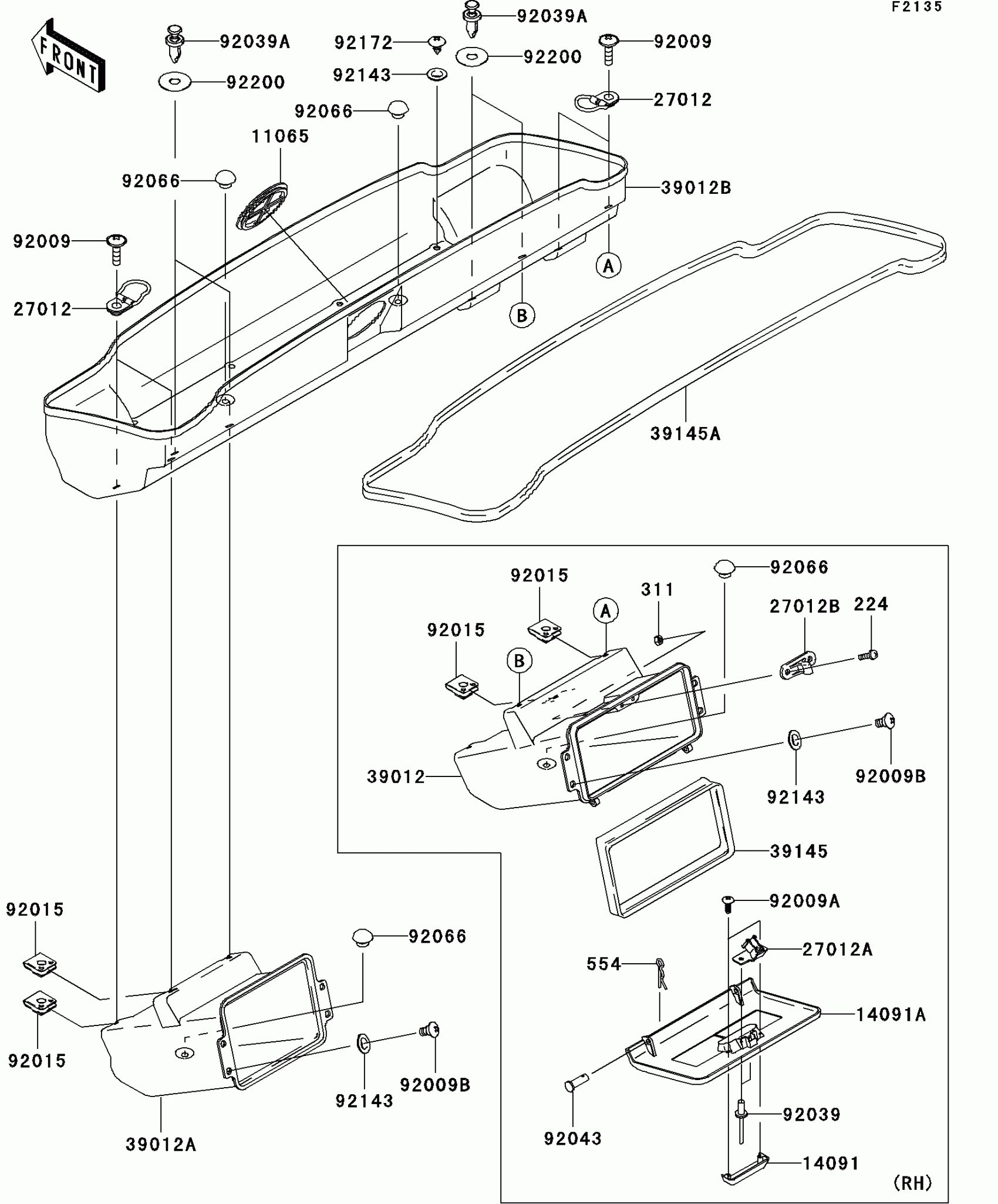

Kawasaki Mule 3010 Diesel 4X4 Front Box Diagram
#
Description
Price
11065
CAP,F.BLACK
11065-1053-6Z
$8.40
14091
COVER,STORAGE GRIP,GRAY
14091-1228-284
Unavailable
14091A
COVER,CONTROL PANEL,GRAY
14091-1399-284
Unavailable
27012
HOOK
27012-1577
$14.45
27012A
HOOK
27012-1607
$7.75
27012B
HOOK
27012-1612
$3.92
39012
CASE-STORAGE,RH,GRAY
39012-1061-284
$45.13
39012A
CASE-STORAGE,LH,GRAY
39012-1062-284
$47.28
39012B
CASE-STORAGE,CNT
39012-1066
$89.59
39145
TRIM-SEAL,L=774
39145-1130
$22.86
39145A
TRIM-SEAL,L=2805
39145-1132
$61.40
92009
SCREW,6X22,BLACK
92009-1256
$2.78
92009A
SCREW,TAPPING,4X12
92009-1444
$3.21
92009B
SCREW,6X16
92009-1621
Unavailable
92015
NUT,CLAMP,6MM
92015-1678
$5.52
92039
RIVET
92039-1041
$3.65
92039A
RIVET
92039-1229
$1.19
92043
PIN,6X14.5
92043-125
$6.57
92066
PLUG
92066-1485
$2.44
92143
COLLAR
92143-1087
$4.31
92172
SCREW,TAPPING,6X12
92172-0003
$2.80
92200
WASHER,8.5X26X0.8
92200-1567
$2.86
224
SCREW-PAN-WP-CROS,4X12
224C0412
Unavailable
311
NUT-HEX
311C0400
$0.62
554
PIN,SNAP
554A0600
$0.93
