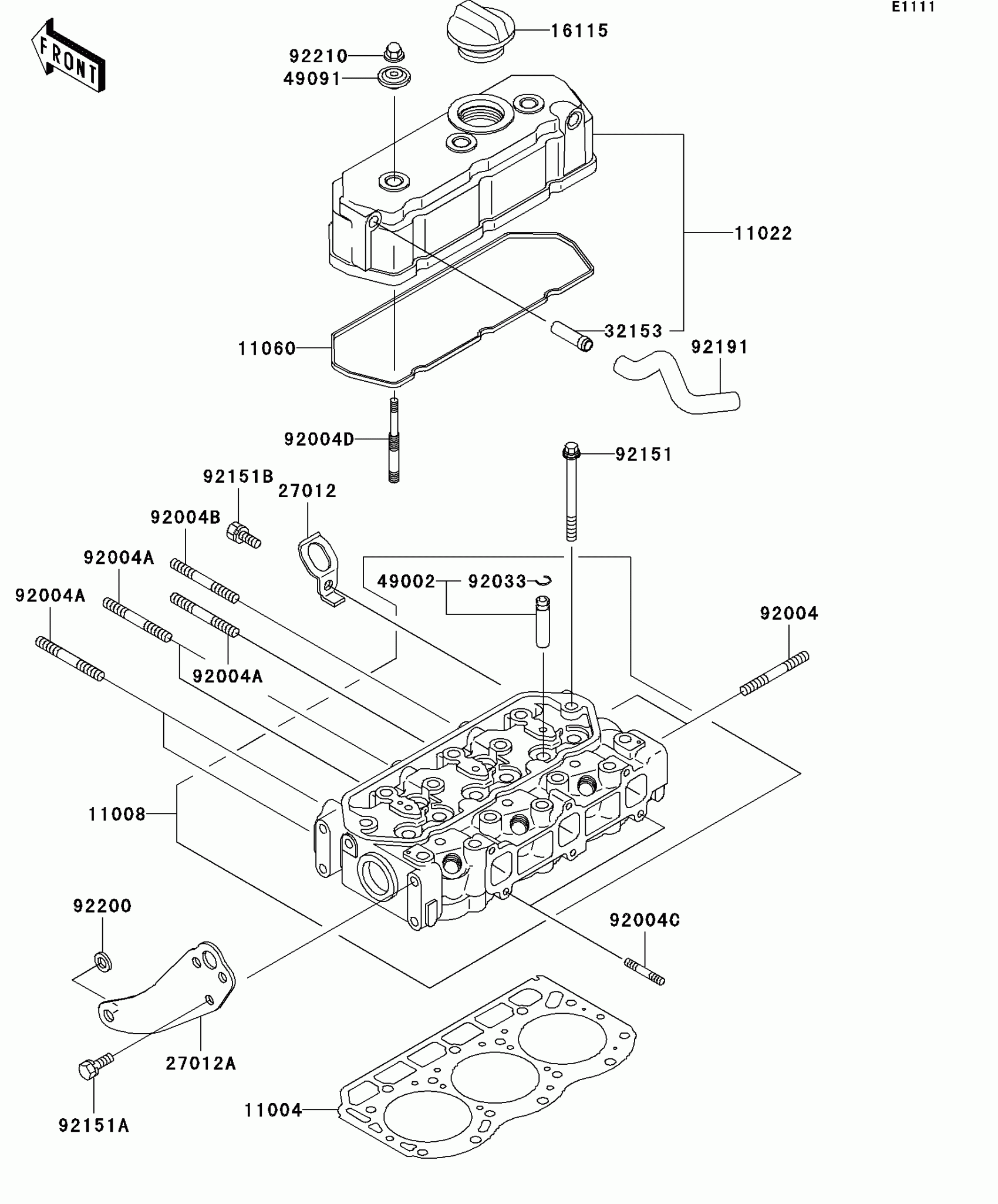

Kawasaki Mule 3010 Diesel 4X4 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1350

$104.26

11008

HEAD-COMP-CYLINDER

11008-1382

$1,161.83

11022

CASE-ROCKER

11022-1059

$98.99

11060

GASKET,ROCKER CASE

11060-1944

$26.54

16115

CAP-OIL FILLER

16115-1071

$11.71

27012

HOOK,ENGINE,FR

27012-1587

$8.43

27012A

HOOK,ENGINE,LH

27012-1588

$21.16

32153

PIPE,ROCKER CASE

32153-1180

$6.89

49002

GUIDE-VALVE

49002-1142

$9.09

49091

WASHER-SEAL

49091-1054

$3.75

92004

STUD,8X38

92004-1263

$3.74

92004A

STUD,8X35

92004-1264

$2.55

92004B

STUD,8X39

92004-1265

$2.55

92004C

STUD,6X18

92004-1266

$2.55

92004D

STUD,ROCKER CASE

92004-1267

$4.34

92033

RING-SNAP,VALVE GUIDE

92033-1315

$4.33

92151

BOLT,CYLINDER HEAD

92151-1659

$8.33

92151A

BOLT,8X16

92151-1660

$2.58

92151B

BOLT,8X18

92151-1661

$2.58

92191

TUBE,BREATHER

92191-1562

$34.67

92200

WASHER

92200-1519

$2.58

92210

NUT,CAP,6MM

92210-1209

$2.58
