Description

Price

13001

PISTON-ENGINE,STD

13001-1571

$99.30

13002

PIN-PISTON

13002-1118

$17.60

13008

RING-SET-PISTON,STD

13008-1197

$79.01

13025

RING-SET-PISTON L,O/S 0.25

13025-1154

Unavailable

13029

PISTON-ENGINE L,O/S 0.25

13029-1279

Unavailable

13031

CRANKSHAFT-COMP

13031-1497

$1,312.17

13101

GEAR-ASSY,IDLE

13101-1292

$162.98

13107

SHAFT,IDLE GEAR

13107-1431

$81.22

13251

ROD-ASSY-CONNECTING

13251-1129

Unavailable

13271

PLATE

13271-1362

$11.25

21194

FLYWHEEL-COMP

21194-1054

$332.73

49079

PULLEY-BELT

49079-1061

$82.08

59051

GEAR-SPUR,FLYWHEEL

59051-1388

$70.86

92033

RING-SNAP,PISTON

92033-1314

$2.55

92043

PIN,CRANKSHAFT GEAR

92043-1612

$2.58

92141

BUSHING,CONNECTING ROD,STD

92141-1054

$6.77

92141A

BUSHING,CONNECTING ROD,U/S

92141-1055

Unavailable

92141B

BUSHING,CRANKSHAFT,UPP,STD

92141-1056

Unavailable

92141C

BUSHING,CRANKSHAFT,UPP,U/S

92141-1057

Unavailable

92141D

BUSHING,CRANKSHAFT,LWR,STD

92141-1058

Unavailable

92141E

BUSHING,CRANKSHAFT,LWR,U/S

92141-1059

Unavailable

92151

BOLT,CONNECTING ROD

92151-1671

$3.46

92151A

BOLT,PULLEY

92151-1672

$9.13

92151B

BOLT,10X18

92151-1673

$4.38

92151C

BOLT,8X45

92151-1674

$3.86

92200

WASHER,THRUST,STD

92200-1498

$5.84

92200A

WASHER,THRUST,O/S 0.125

92200-1499

Unavailable

92210

NUT,CONNECTING ROD

92210-1212

$2.58

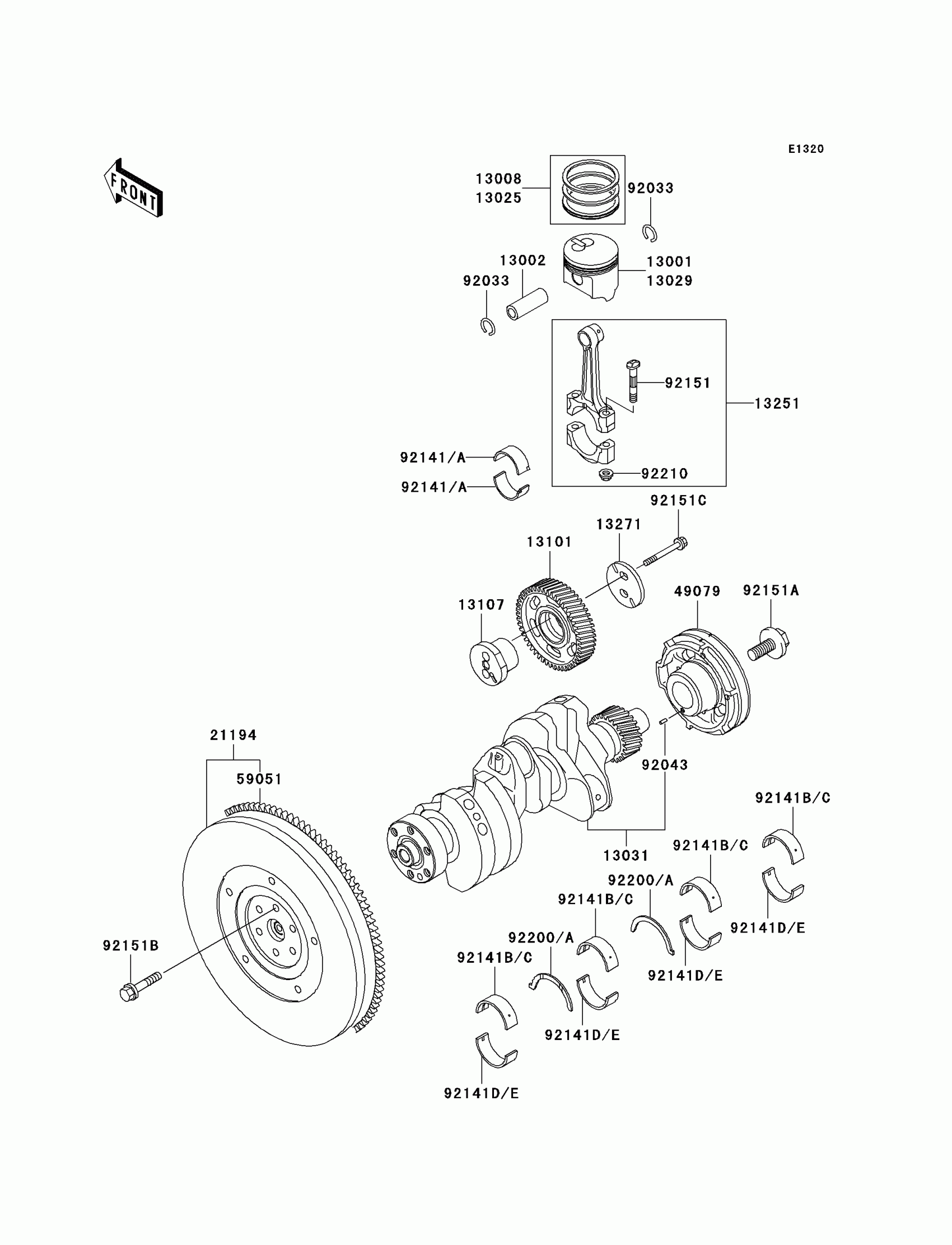

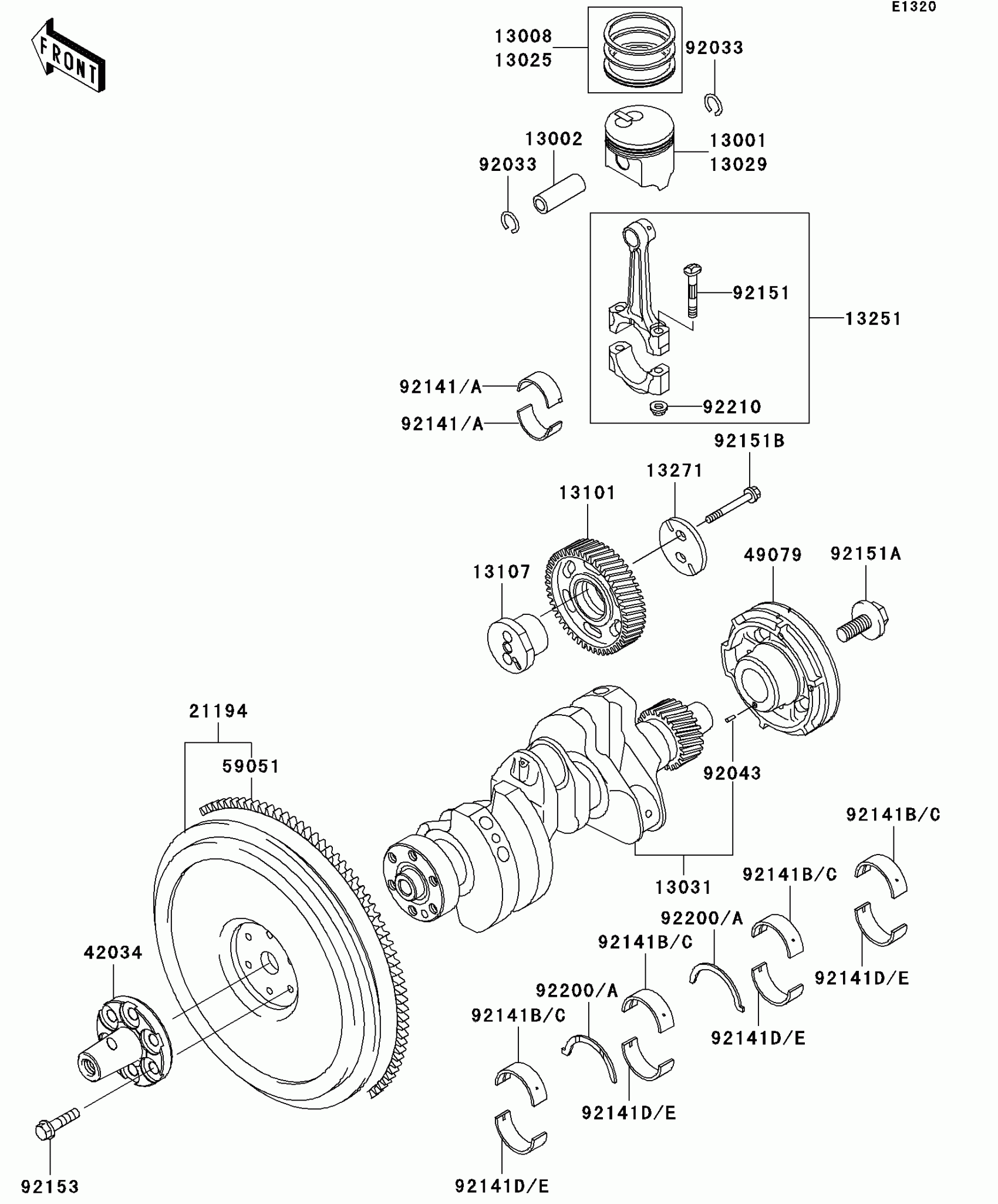

Kawasaki Mule 3010 Diesel 4X4 Crankshaft/Piston(s) Diagram

PISTON-ENGINE,STD

PIN-PISTON

RING-SET-PISTON,STD

RING-SET-PISTON L,O/S 0.25

PISTON-ENGINE L,O/S 0.25

CRANKSHAFT-COMP

GEAR-ASSY,IDLE

SHAFT,IDLE GEAR

ROD-ASSY-CONNECTING

PLATE

FLYWHEEL-COMP

PULLEY-BELT

GEAR-SPUR,FLYWHEEL

RING-SNAP,PISTON

PIN,CRANKSHAFT GEAR

BUSHING,CONNECTING ROD,STD

BUSHING,CONNECTING ROD,U/S

BUSHING,CRANKSHAFT,UPP,STD

BUSHING,CRANKSHAFT,UPP,U/S

BUSHING,CRANKSHAFT,LWR,STD

BUSHING,CRANKSHAFT,LWR,U/S

BOLT,CONNECTING ROD

BOLT,PULLEY

BOLT,10X18

BOLT,8X45

WASHER,THRUST,STD

WASHER,THRUST,O/S 0.125

NUT,CONNECTING ROD
