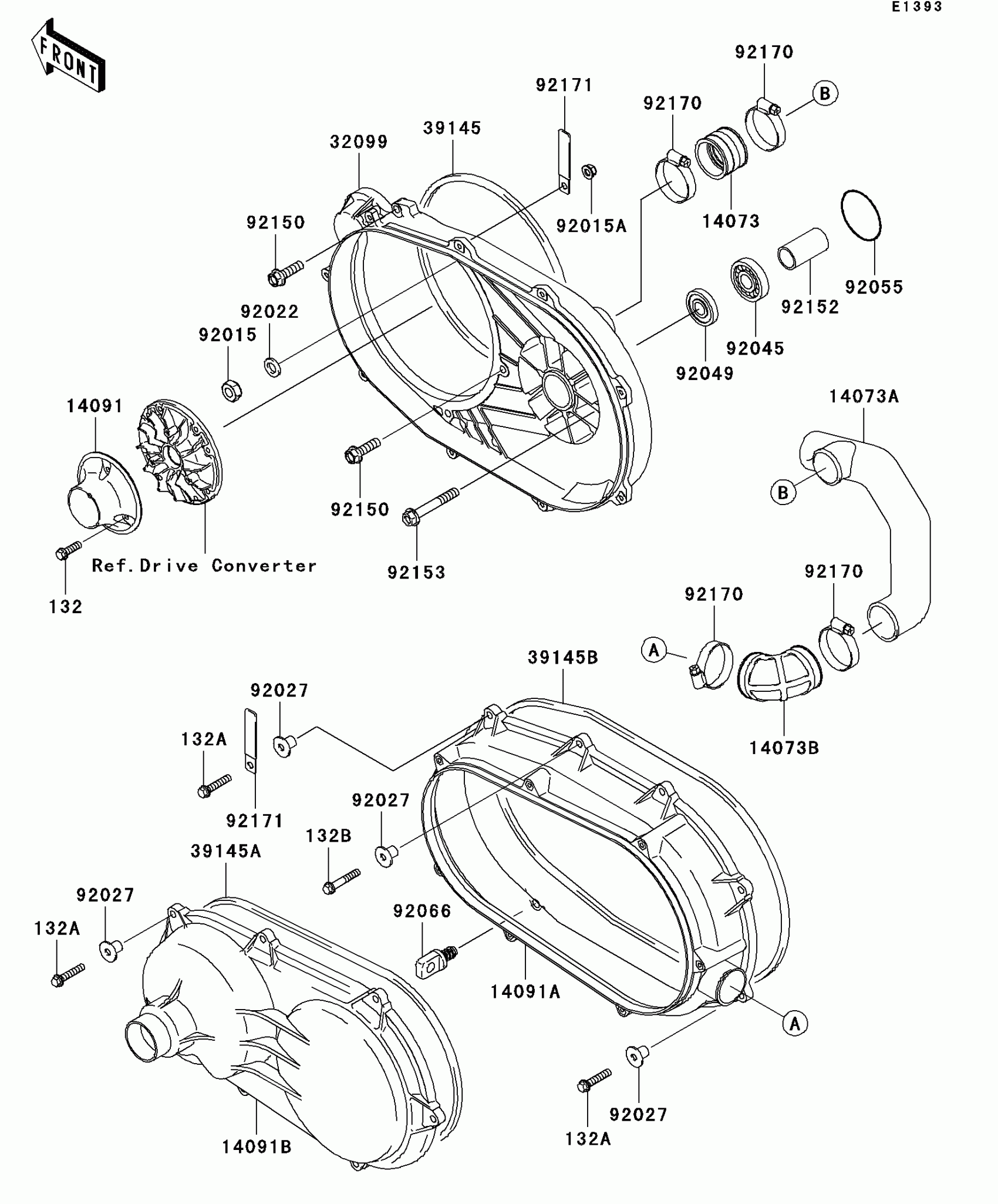

Kawasaki Mule 3010 Diesel 4X4 Converter Cover Diagram

Description

Price

14073

DUCT

14073-1324

$10.67

14073A

DUCT

14073-1856

$36.94

14073B

DUCT

14073-1857

$19.72

14091

COVER,FAN

14091-1520

$29.80

14091A

COVER,MIDDLE

14091-1555

$99.25

14091B

COVER,BELT CONVERTER

14091-1556

$116.59

32099

CASE,BELT CONVERTER

32099-1215

$749.37

39145

TRIM-SEAL,BELT CONVERTER CASE

39145-1115

$11.11

39145A

TRIM-SEAL,MIDDLE COVER

39145-1117

$25.85

39145B

TRIM-SEAL,BELT CONVERTER

39145-1126

$21.16

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,10.5X18X2.5

92022-1876

$5.00

92027

COLLAR,L=14.1

92027-1920

$6.57

92045

BEARING-BALL,62/28LLB/2AS

92045-0109

Unavailable

92049

SEAL-OIL,TC28X47X7

92049-1297

$14.90

92055

RING-O,67.6X3.5

92055-1327

$6.52

92066

PLUG,DRAIN,11X19

92066-1580

$6.28

92150

BOLT,FLANGED,8X28

92150-1103

$5.54

92152

COLLAR,28.1X34X63.6

92152-1177

$17.22

92153

BOLT

92153-1276

$2.93

92170

CLAMP

92170-1764

$11.48

92171

CLAMP,L=60

92171-0652

$2.61

132

BOLT-FLANGED-SMALL

132G0620

$2.33

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132B

BOLT-FLANGED-SMALL,6X35

132J0635

$3.84
