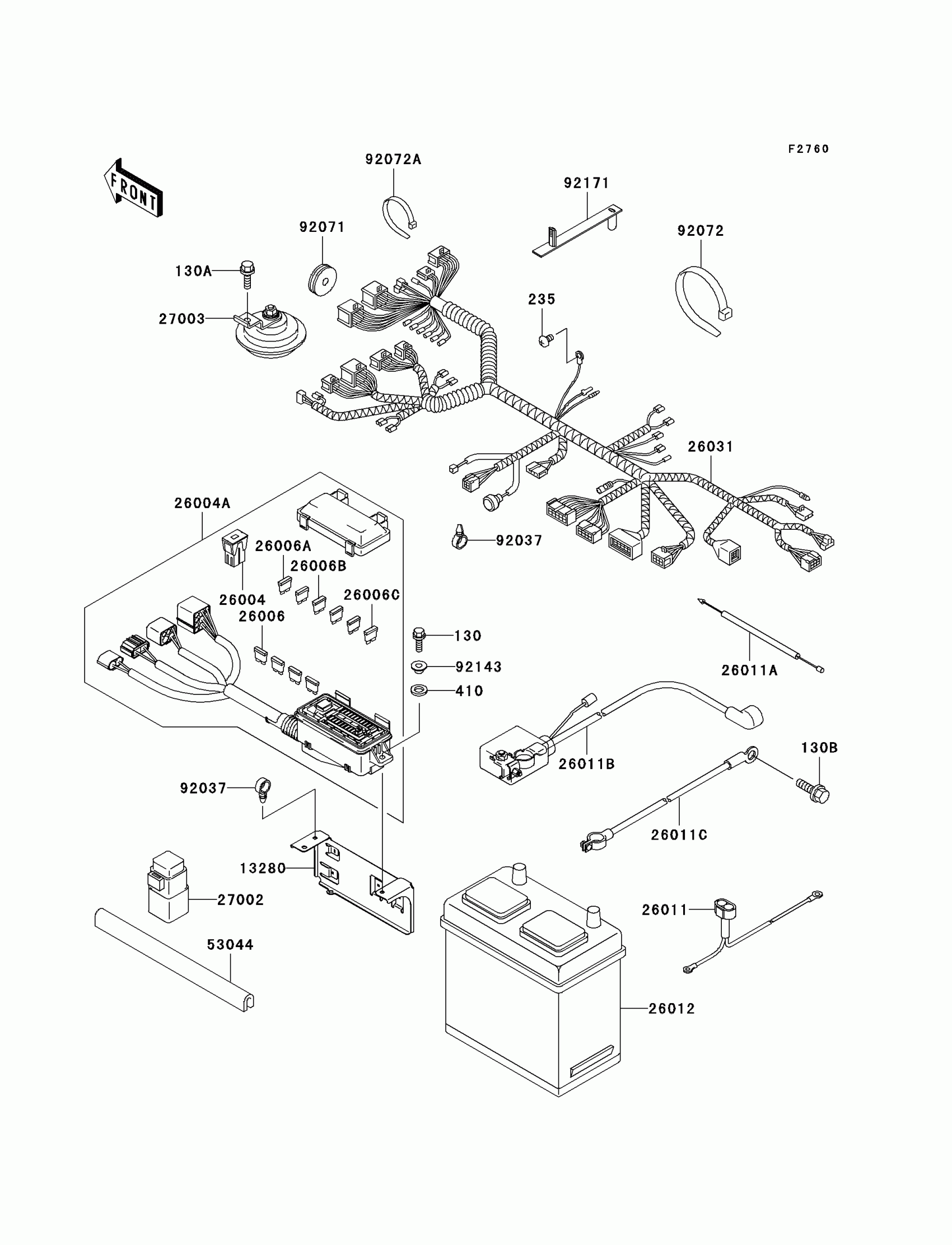

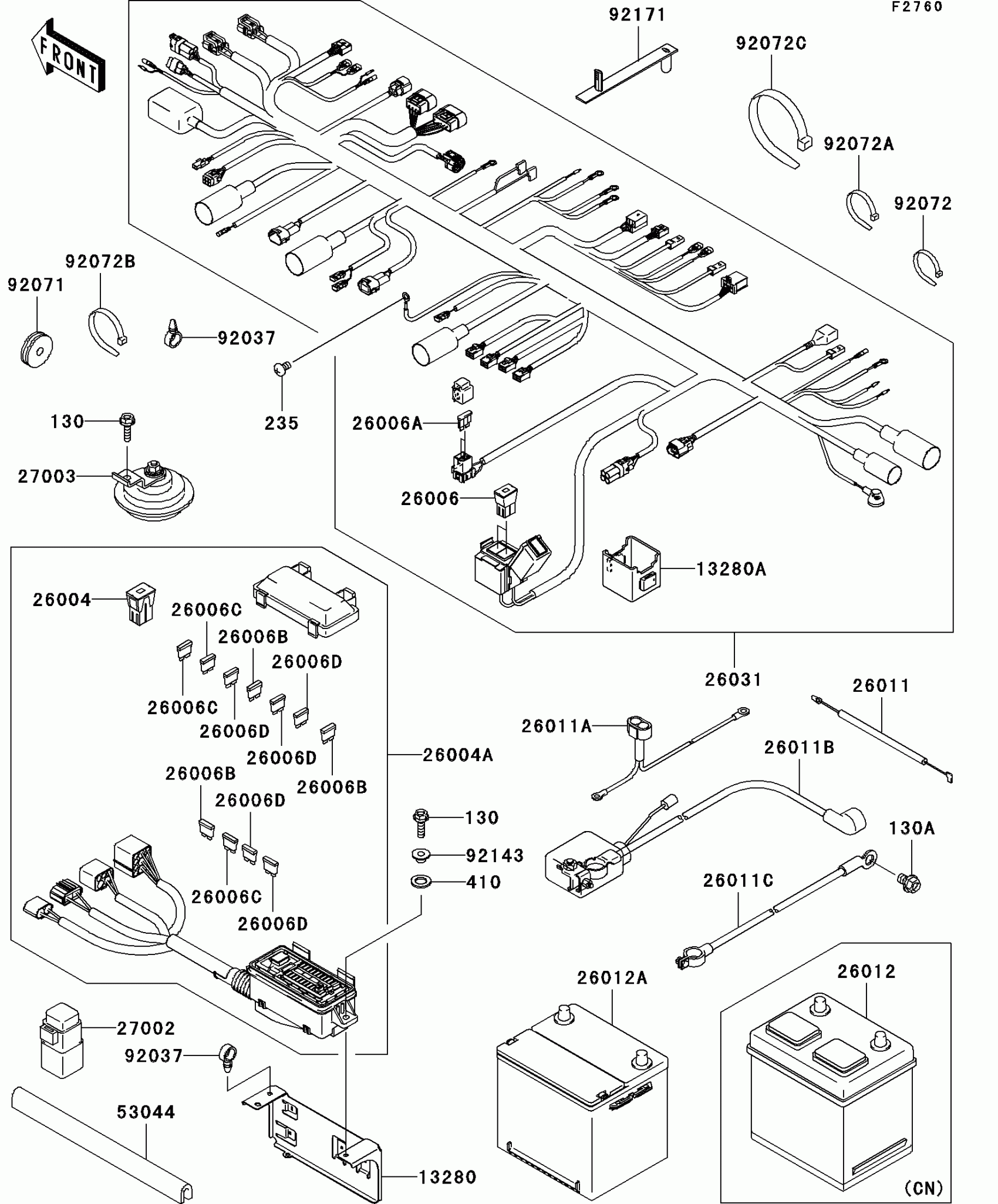

Kawasaki Mule 3010 Diesel 4X4 Chassis Electrical Equipment Diagram

Description

Price

13280

HOLDER

13280-1220

$38.20

13280A

HOLDER

13280-7508

$3.21

26004

FUSE-ASSY,50A

26004-1096

$4.83

26004A

FUSE-ASSY

26004-7503

$351.04

26006

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$5.24

26006A

FUSE,7.5A

26006-0015

$5.24

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,OIL PRESSURE SWITCH

26011-0001

$7.99

26011A

WIRE-LEAD,ALTERNATOR

26011-7508

$71.90

26011B

WIRE-LEAD,BATTERY(+)

26011-7512

$160.81

26011C

WIRE-LEAD,BATTERY(-)

26011-7513

$147.84

26031

HARNESS,MAIN

26031-7509

$571.39

27002

RELAY-ASSY

27002-1068

$68.42

27003

HORN

27003-1276

$44.08

53044

TRIM

53044-1137

$10.65

92037

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-1136

$7.38

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92072C

BAND,L=368.3

92072-3872

$1.59

92143

COLLAR

92143-1057

$5.00

92171

CLAMP

92171-1365

$4.20

130

BOLT-FLANGED

130J0620

$0.43

130A

BOLT-FLANGED,8X12

130J0812

$0.67

235

SCREW-PAN-WP-CROS,6X10

235B0610

$3.51

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

$4.01
