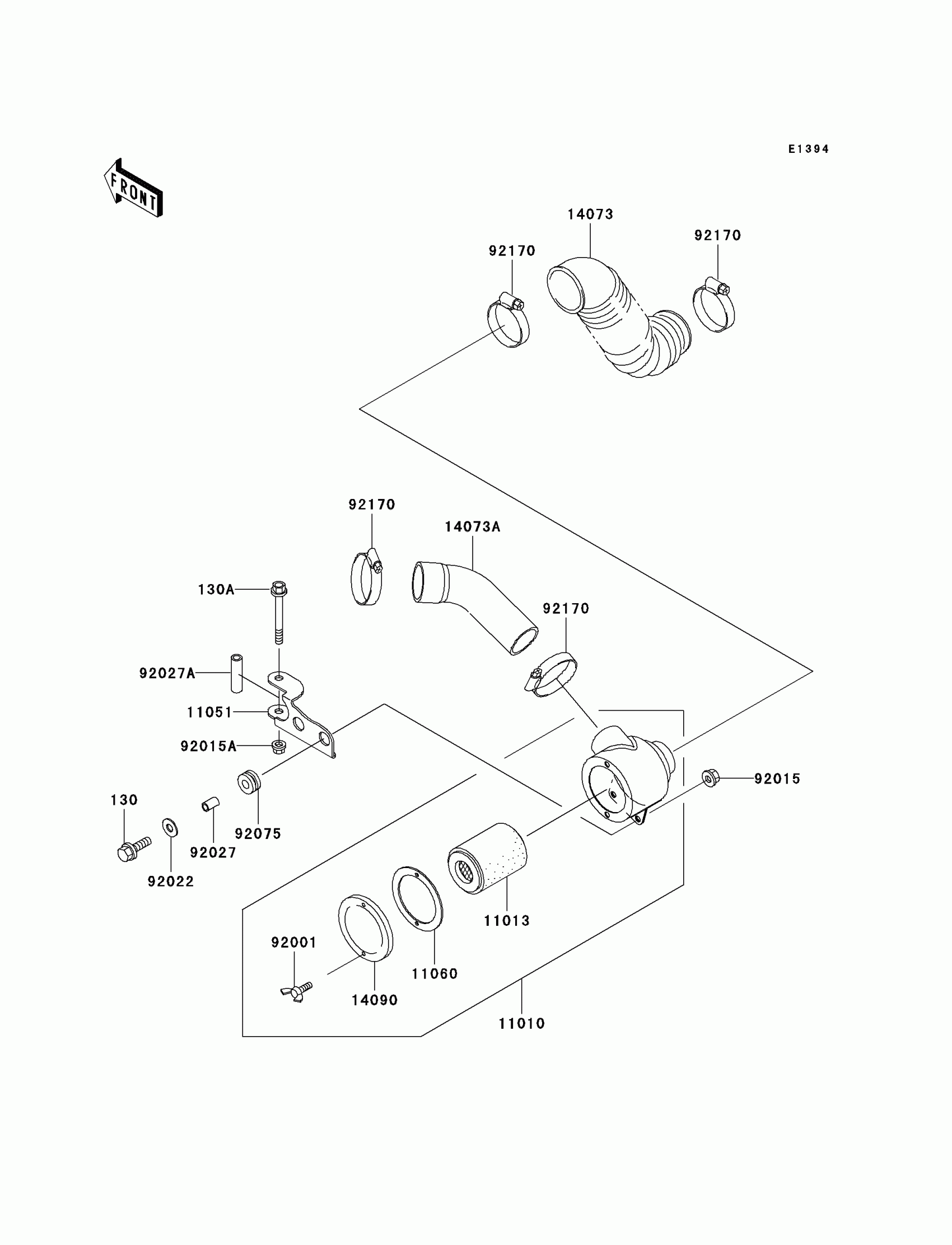

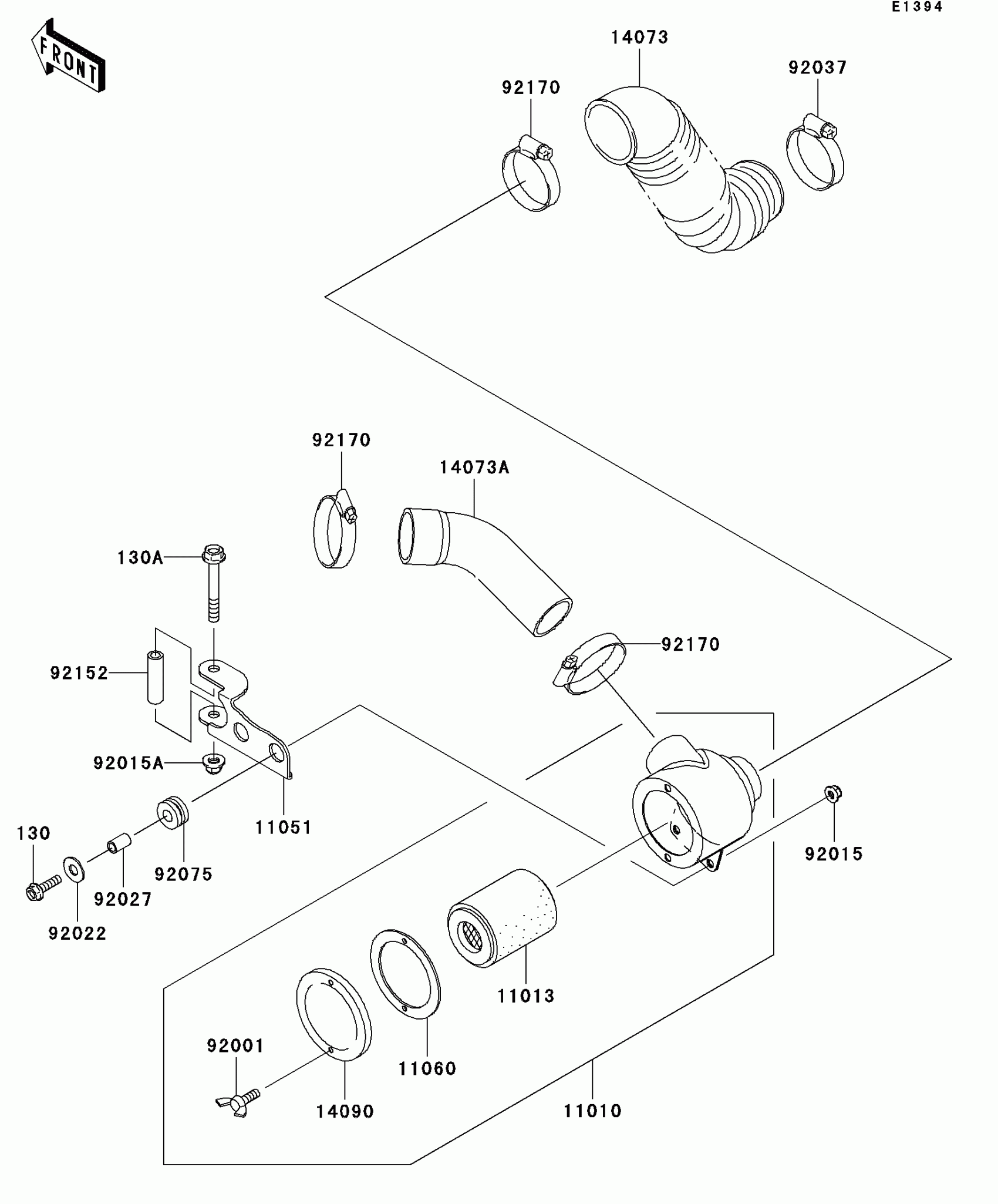

Kawasaki Mule 3010 Diesel 4X4 Air Cleaner-Belt Converter Diagram

Description

Price

130

BOLT-FLANGED,8X30,BLA

130C0830

Unavailable

130A

BOLT-FLANGED,10X75

130J1075

Unavailable

11010

FILTER-ASSY-AIR

11010-1735

Unavailable

11013

ELEMENT-AIR FILTER

11013-1263

$20.58

11051

BRACKET

11051-1337

$9.09

11060

GASKET,AIR FILTER CASE

11060-1975

$10.57

14073

DUCT,BELT CONVERTER

14073-1492

$53.67

14073A

DUCT

14073-1756

$26.17

14090

COVER,AIR FILTER

14090-1766

$12.66

92001

BOLT,WING,6X15

92001-1703

$3.44

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,LOCK,10MM

92015-1522

$7.62

92022

WASHER,9X28X2.3

92022-1632

$4.39

92027

COLLAR

92027-1081

$9.59

92027A

COLLAR

92027-1738

$7.17

92075

DAMPER

92075-1736

$6.57

92170

CLAMP

92170-1338

$11.05
