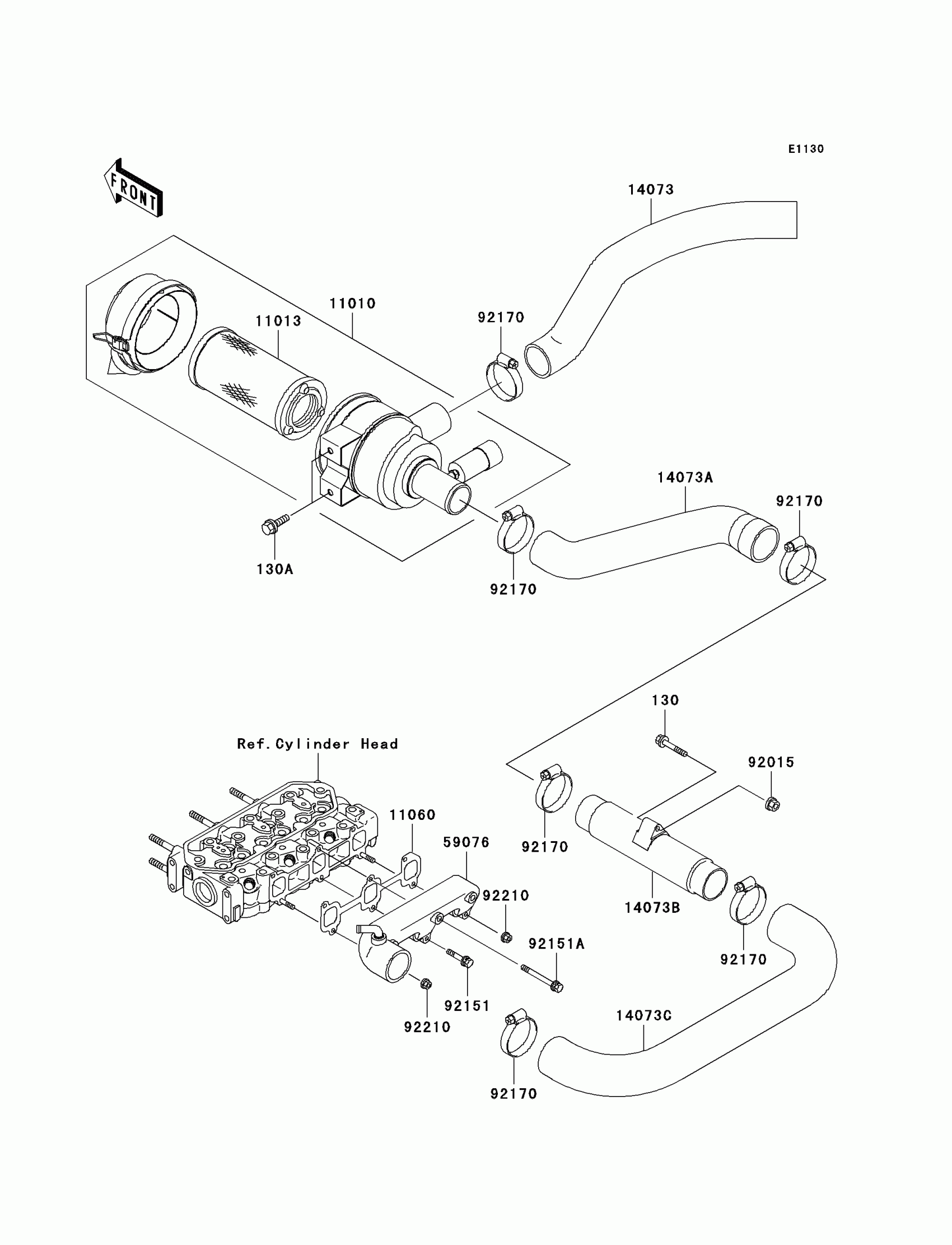

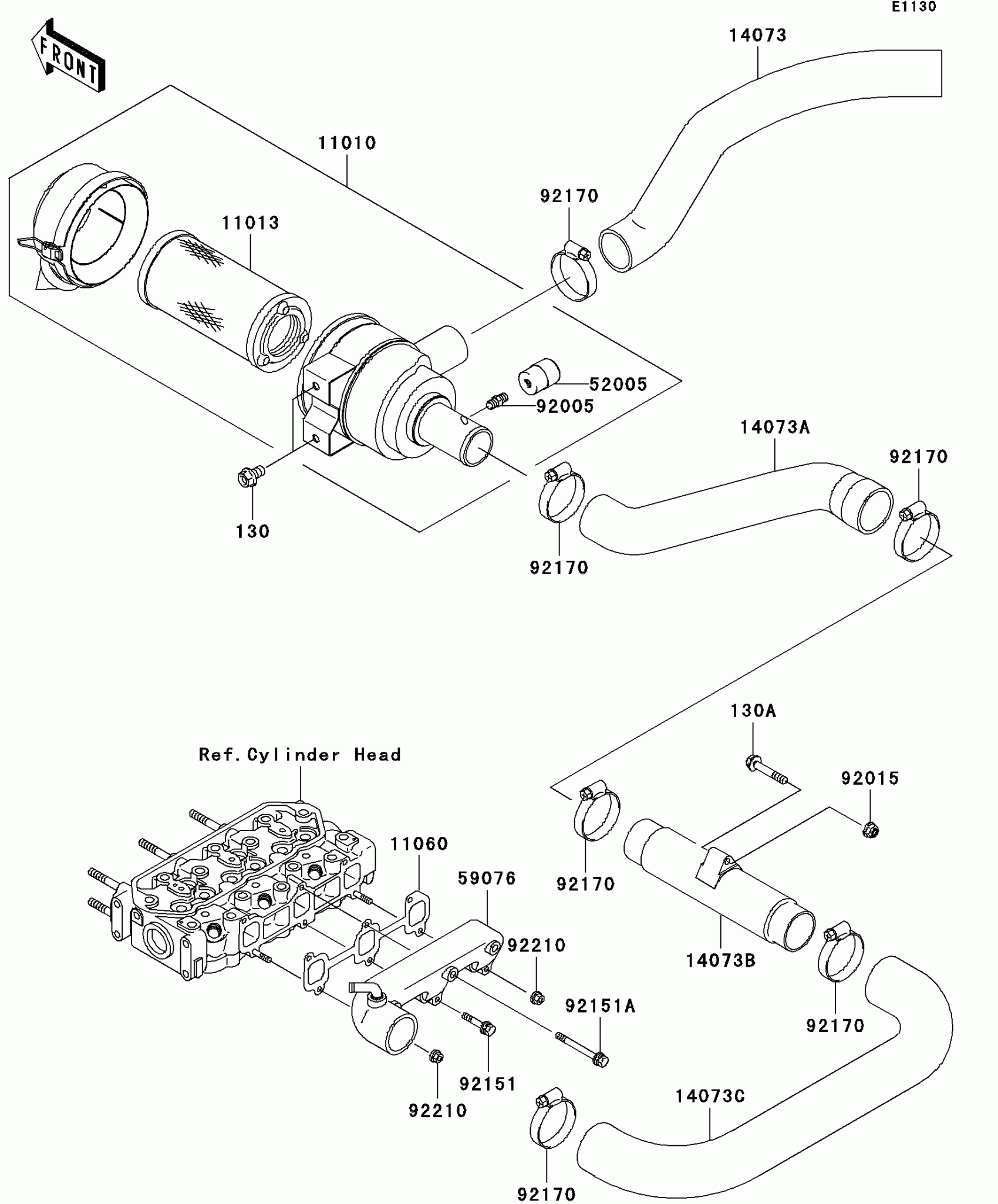

Kawasaki Mule 3010 Diesel 4X4 Air Cleaner Diagram

Description

Price

130

BOLT-FLANGED,6X35

130J0635

Unavailable

130A

BOLT-FLANGED,8X14

130J0814

$3.84

11010

FILTER-ASSY-AIR

11010-1689

Unavailable

11013

ELEMENT-AIR FILTER

11013-1290

$28.98

11060

GASKET,INTAKE MANIFOLD

11060-1960

$11.42

14073

DUCT,AIR CLEANER,INLET

14073-1752

$49.34

14073A

DUCT,AIR CLEANER,OUTLET

14073-1753

$33.57

14073B

DUCT,AIR CLEANER,OUTLET

14073-1754

$28.25

14073C

DUCT,ENGINE,INLET

14073-1755

$67.20

59076

MANIFOLD-INTAKE

59076-1112

$127.40

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92151

BOLT,6X20

92151-1667

$2.58

92151A

BOLT,6X60

92151-1695

$2.58

92170

CLAMP

92170-1338

$11.05

92210

NUT,6MM

92210-1210

$2.58
