Optional Parts

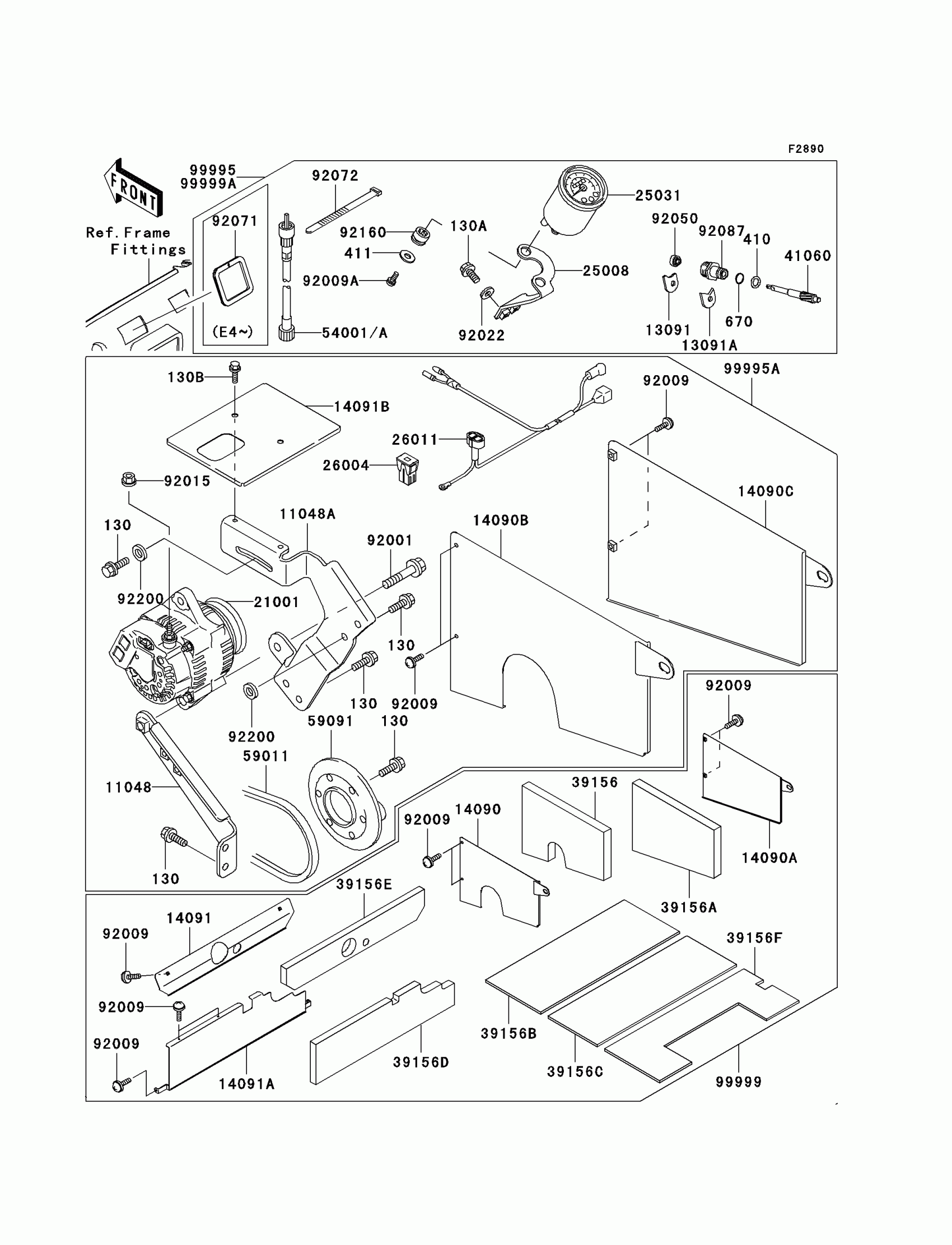

Kawasaki Mule 3010 4X4 Optional Parts Diagram
#
11048
BRACKET,ENGINE,LWR
11048-1243
$186.25
11048A
BRACKET,GENERATOR
11048-1244
$384.12
13091
HOLDER,TACHOMETER2.3T
13091-1008
$4.26
13091A
HOLDER,TACHOMETR,3.2T
13091-1009
$4.26
14090
COVER,ENCLOSURE,LH
14090-1260
$56.95
14090A
COVER,ENCLOSURE,RH
14090-1261
$56.95
14090B
COVER,ENCLOSURE,LH
14090-1354
$56.95
14090C
COVER,ENCLOSURE,RH
14090-1355
$56.95
14091
COVER,SEAT BACK
14091-1237
$133.57
14091A
COVER,SEAT UNDER
14091-1359
$94.37
14091B
COVER,GENERATOR
14091-1377
$49.82
21001
GENERATOR
21001-1129
$818.88
25008
BRACKET-METER
25008-1228
$40.27
25031
METER-ASSY,MPH
25031-1190
$229.73
26004
FUSE-ASSY,50A
26004-1096
$4.83
26011
WIRE-LEAD,GENERATOR
26011-1758
$97.28
39156
PAD,ENCLOSURE COVER,LH
39156-1301
$51.95
39156A
PAD,ENCLOSURE COVER,RH
39156-1302
$51.95
39156B
PAD,CARRIER,FR
39156-1304
$71.97
39156C
PAD,CARRIER,CNT
39156-1305
$67.40
39156D
PAD,SEAT UNDER
39156-1678
$84.83
39156E
PAD,SEAT BACK
39156-1679
$60.62
39156F
PAD,CARRIER,RR
39156-1680
$87.93
41060
GEAR-METER SCREW
41060-1148
$59.59
54001A
CABLE-SPEEDOMETER
54001-1248
$35.15
59011
BELT
59011-2056
$21.20
59091
PULLEY
59091-2053
$58.46
92001
BOLT,BLACK,10X47
92001-1522
$6.22
92009
SCREW,6X16
92009-1621
Unavailable
92009A
SCREW,5X12
92009-3740
$4.18
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92050
SEAL-OIL
92050-075
$11.39
92072
BAND,L=140
92072-1293
$7.11
92087
GUIDE,TACHOMETER GEAR
92087-010
$24.19
92160
DAMPER
92160-1461
$7.49
92200
WASHER,8.5X20X2.3
92200-1055
$3.94
99995
KIT.,SPEEDOMETER
99995-1480
$323.23
99995A
KIT.,ALTERNATOR
99995-1481
$727.42
99999
KIT.,ENCLOSURE
99999-1071
$243.31
130
BOLT-FLANGED,8X20
130H0820
$4.06
130A
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130B
BOLT-FLANGED,6X8
130L0608
$5.66
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN 8MM
411B0800
$0.93
670
O RING,10MM
670D1510
$4.69
